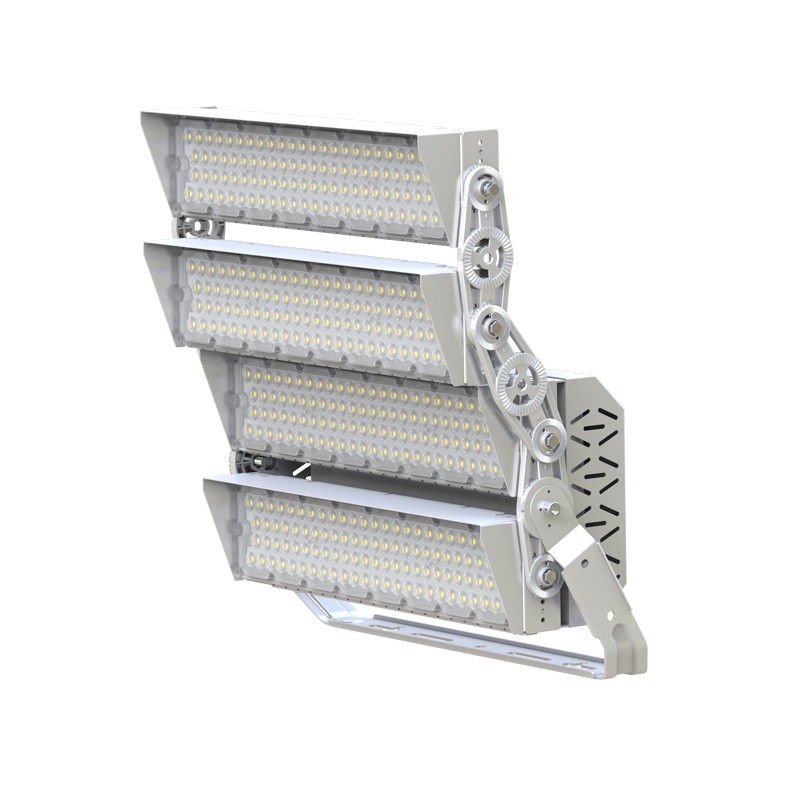

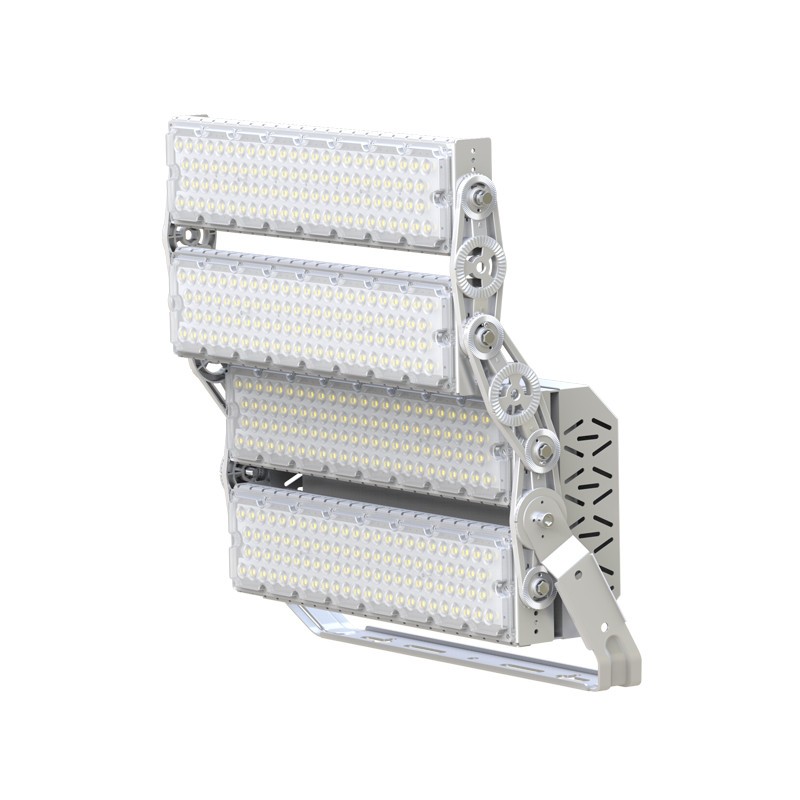

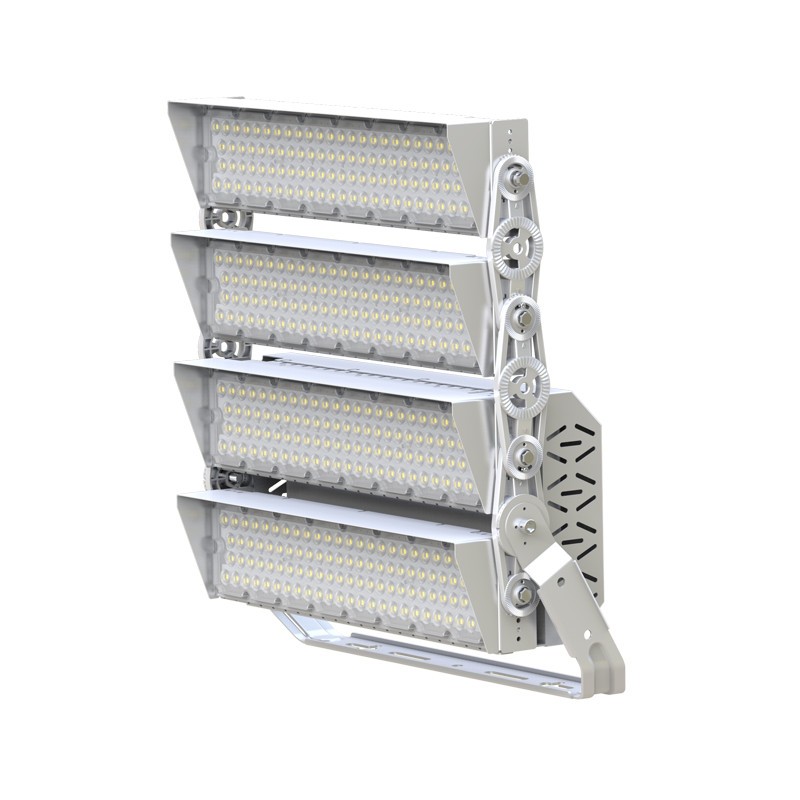

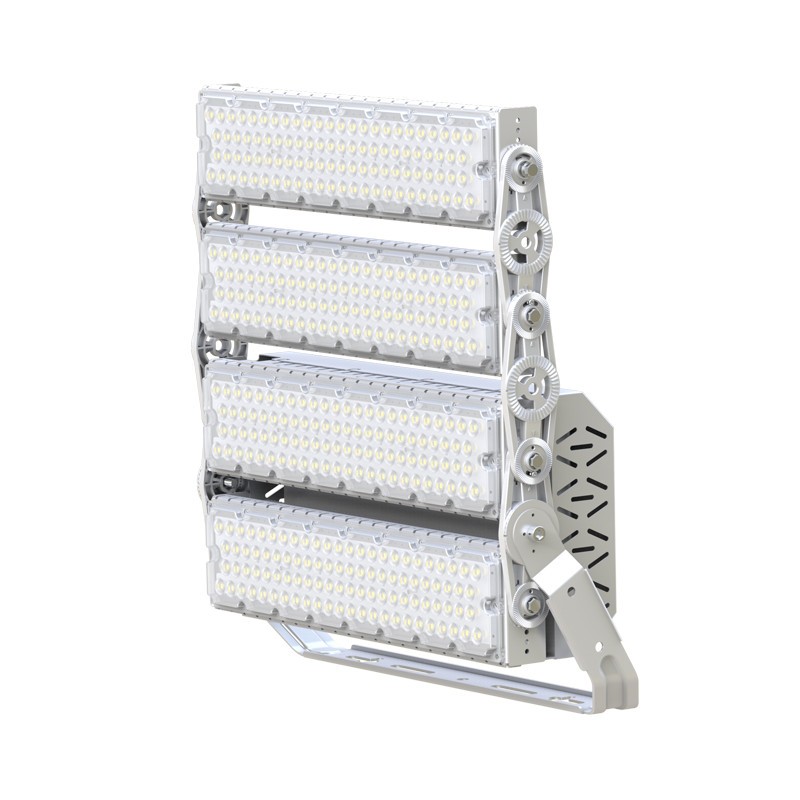

Led sports light (PL-SD-039M-02)

Input Voltage:AC100~277V
Frequency Range:50~60Hz
Total Harmonic Distortion:<20%  (Typical : 10%)
Color Temperature:2700-6500K
Color Rendering Index:CRI>70/80
IP Rating&IK:IP65&IK08
Beam Angle:20°/40°/60°/90°(lumileds5050smd), 8°/P50/P50H(CREE 3535SMD)
Housing Color:Silver/Black
Working Life:>50,000 hours
Warranty:5 years
Working Environment:-30ºC~+50ºC, 10%~90% RH

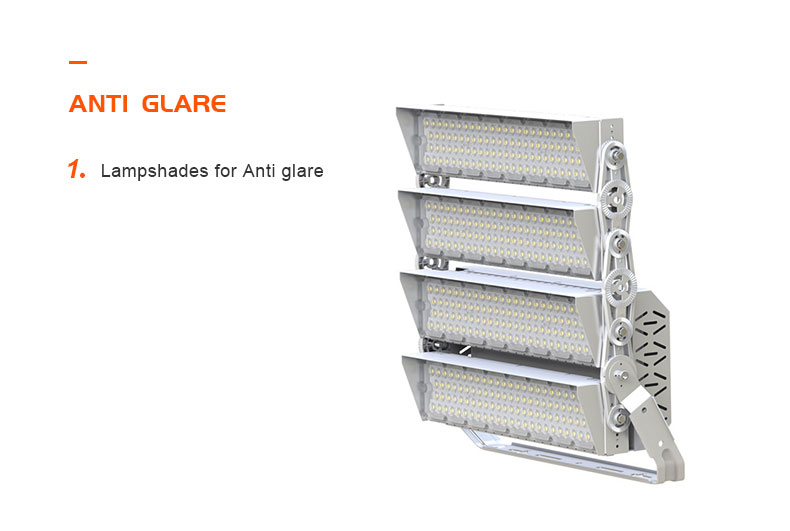

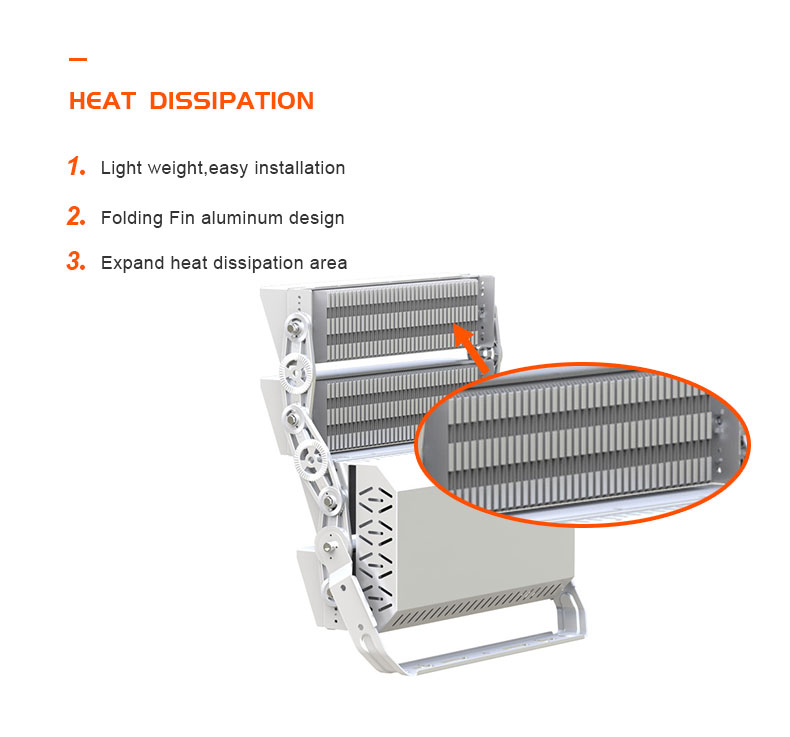

Body & Shade Material: Aluminum housing &  Annular lens

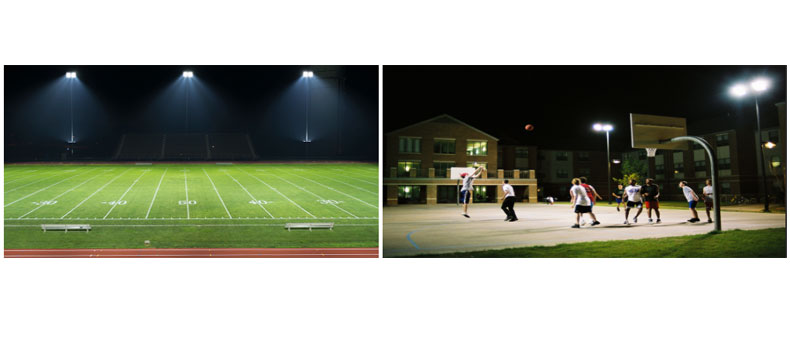

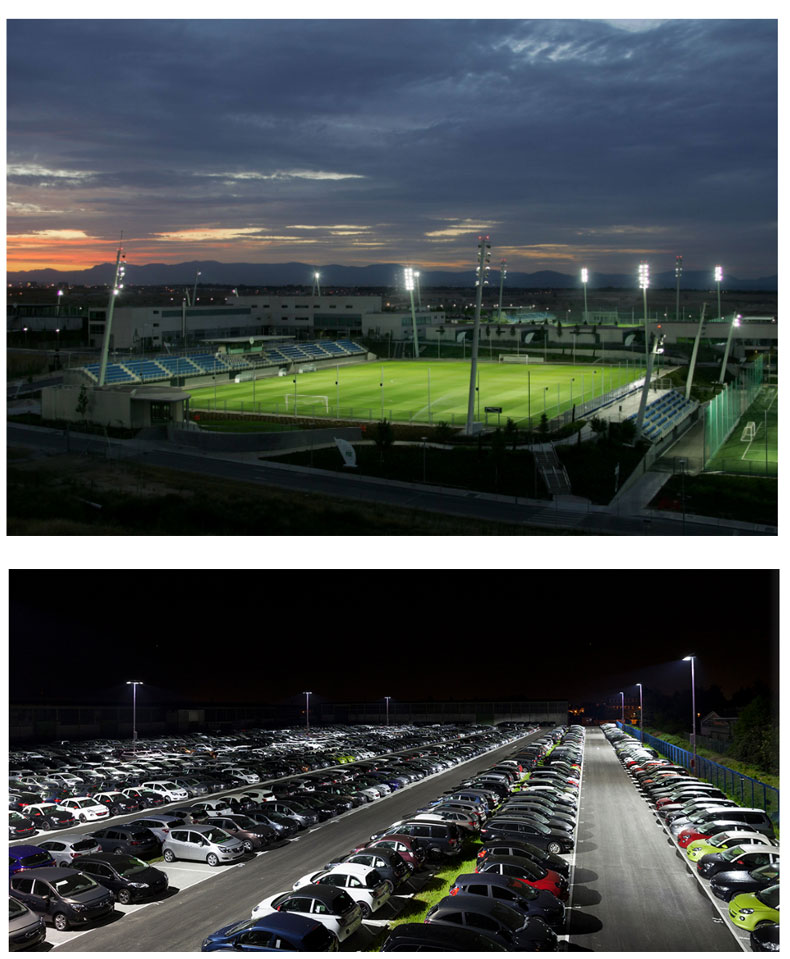

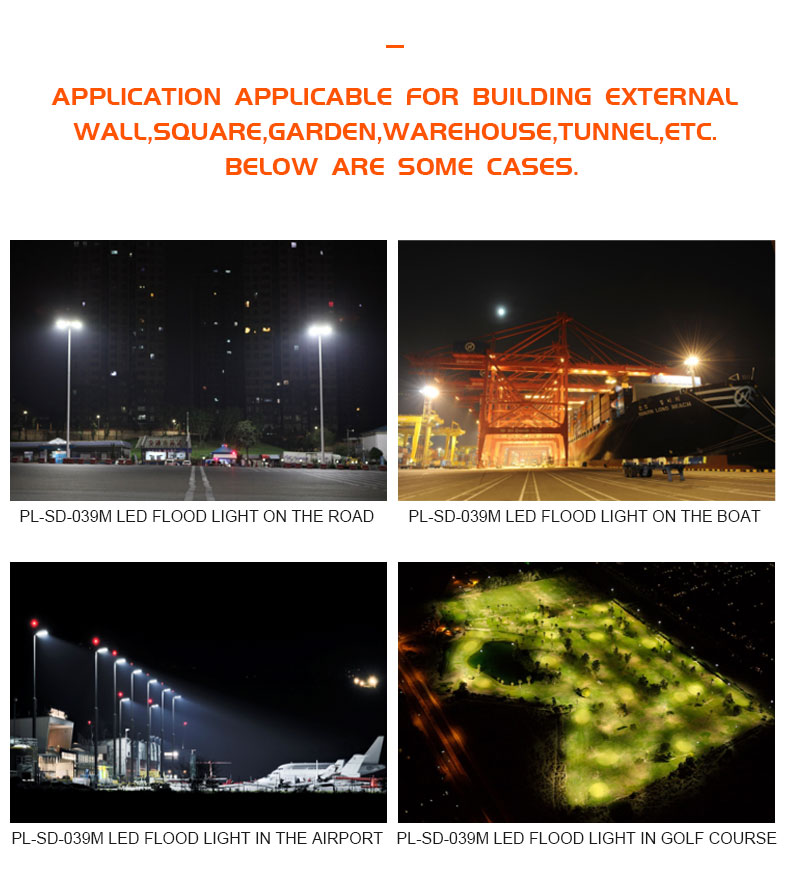

Where Can Use:Applicable for Building external wall,square,project lighting, sport field, high masts, warehouse, display rack, tunnel, football field etc.

EMAIL

5050SMD 30degrees beam angle high mast pole sports stadium led flood light 800W

Datesheet:

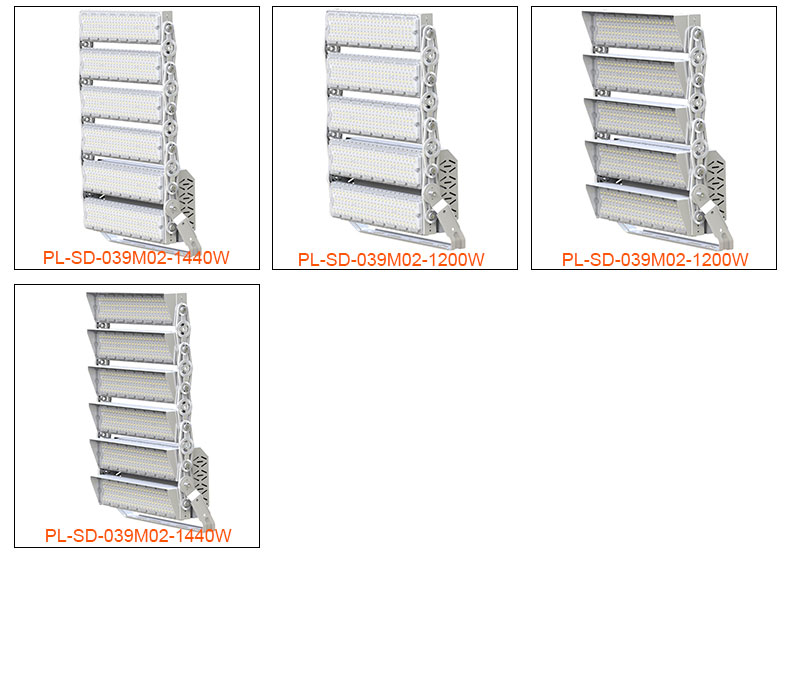

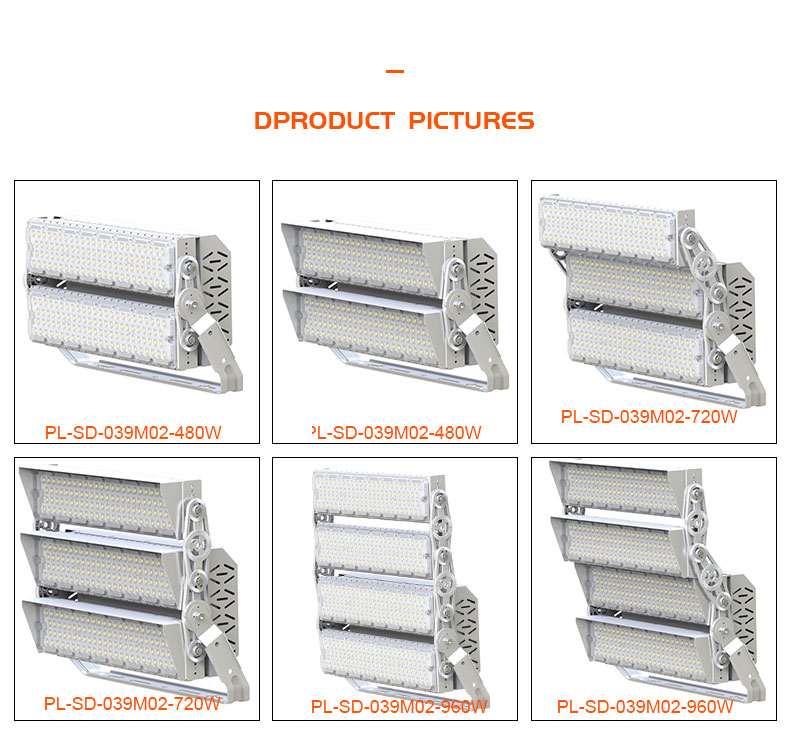

Model

PL-SD-039M-02-480W

PL-SD-039M-02-720W

PL-SD-039M-02-960W

PL-SD-039M-02-1200W

PL-SD-039M-02-1440W

Power

480W

720W

960W

1200W

1440W

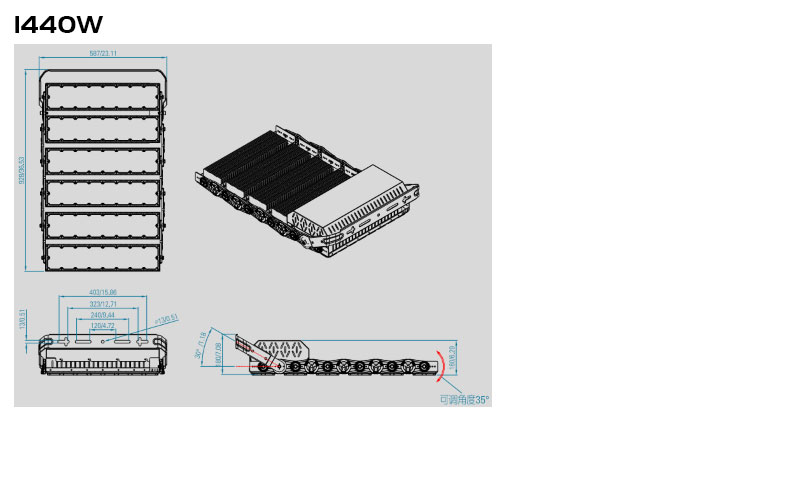

Dimension(mm)

 587X338X180

 587X484X180

 632X587X180

780X587X180

928X587X180

Luminous Flux

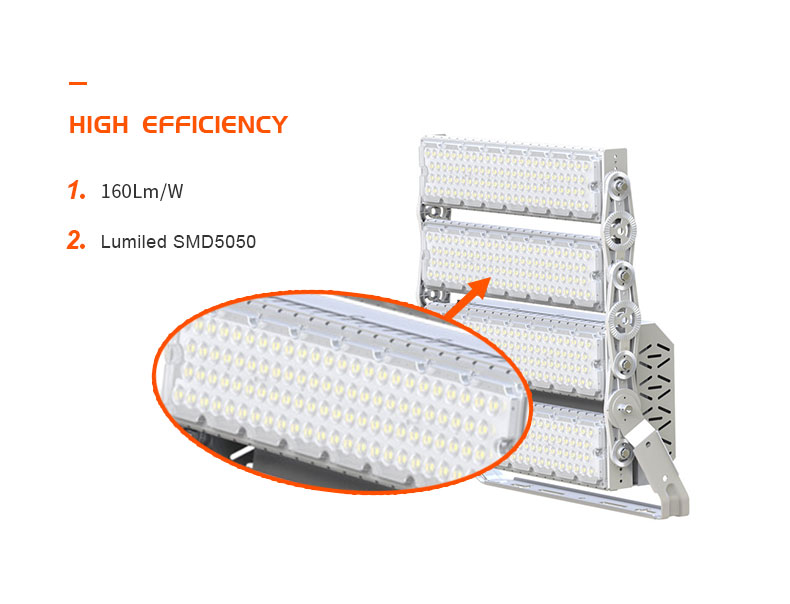

20°/40°/60°/9:160lm/w±5%.           8°/P50/P50H:110lm/w±5%

LED Source

192PCS Lumileds 5050

276PCS Lumileds 5050

384PCS Lumileds 5050

480PCS Lumileds 5050

576PCS Lumileds 5050

Input Voltage

AC100~277V

Frequency Range

50~60Hz

Total Harmonic Distortion

<20%  (Typical : 10%)

Color Temperature

2700-6500K

Color Rendering Index

CRI>70/80

IP Rating&IK

IP65&IK08

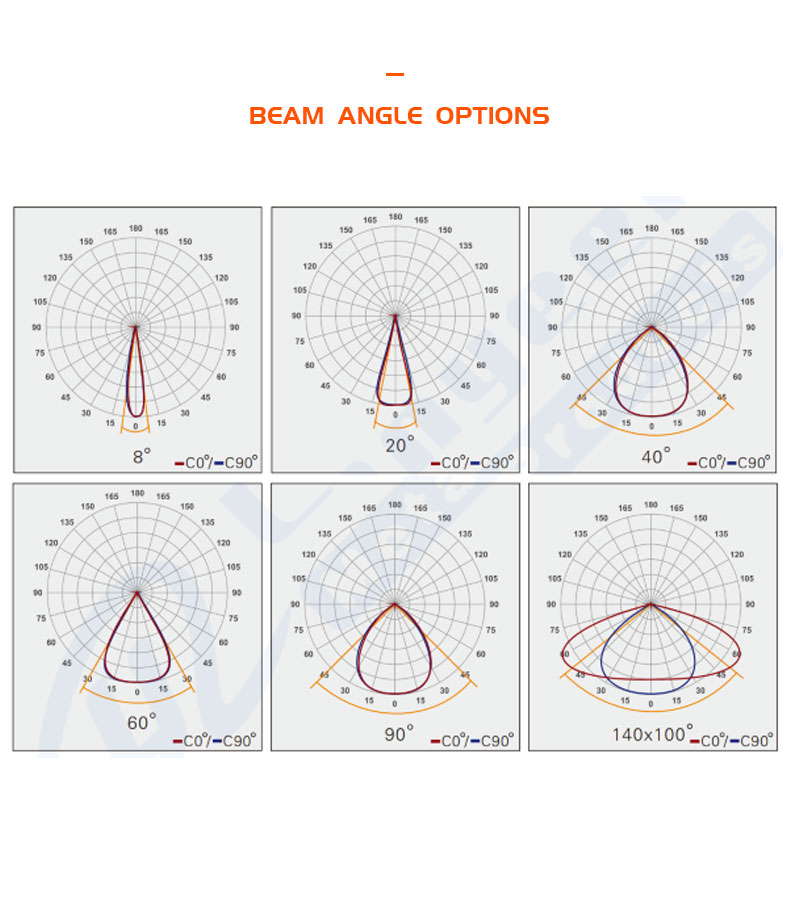

Beam Angle

20°/40°/60°/9lumileds5050smd),  8°/P50/P50H(CREE 3535SMD)

Housing Color

Silver/Black

Working Life

>50,000 hours

Warranty

5 years

Working Environment

-30ºC~+50ºC, 10%~90% RH

Body & Shade Material

 Aluminum housing &  Annular lens

Where Can Use

Applicable for Building external wall,square,project lighting, sport field, high masts, warehouse, display rack, tunnel, football field etc.

FAQ




Q: Whether the  LED lights really have 50,000 hours lifespan?

A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from

in lab,actual lifespan is only  <=50,000hours. Meanwhile it can also be 80,000 hours lifespan if it adopt very good material.



Q: For same power,why different suppliers with different brightness?

A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip

and same brightness version,the brightness will be slight difference.But please make clear the brightness difference

between LEDs and lamp fixture.



Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized

in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,

while a cooler (higher color temperature) light is used to enhance concentration in offices.



Q: What is CRI?

A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.



Q: What is PF and efficiency?

A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time
