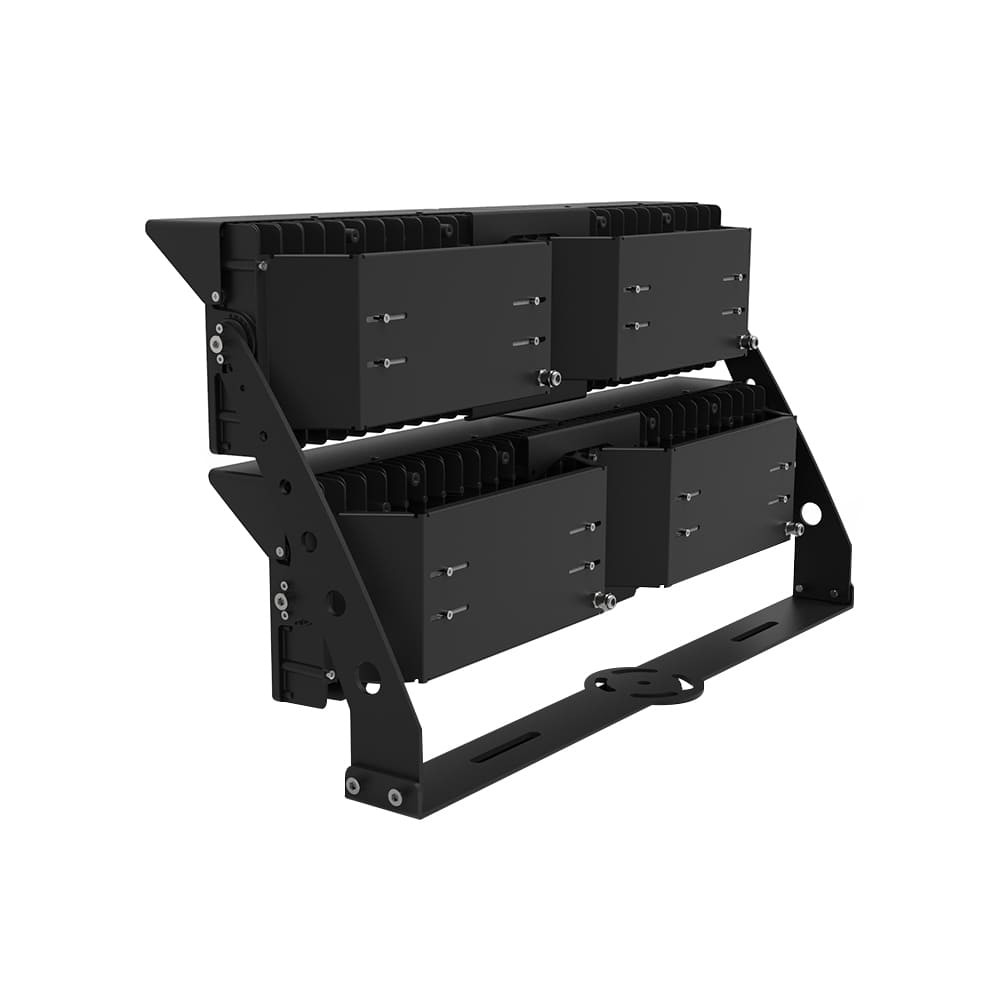

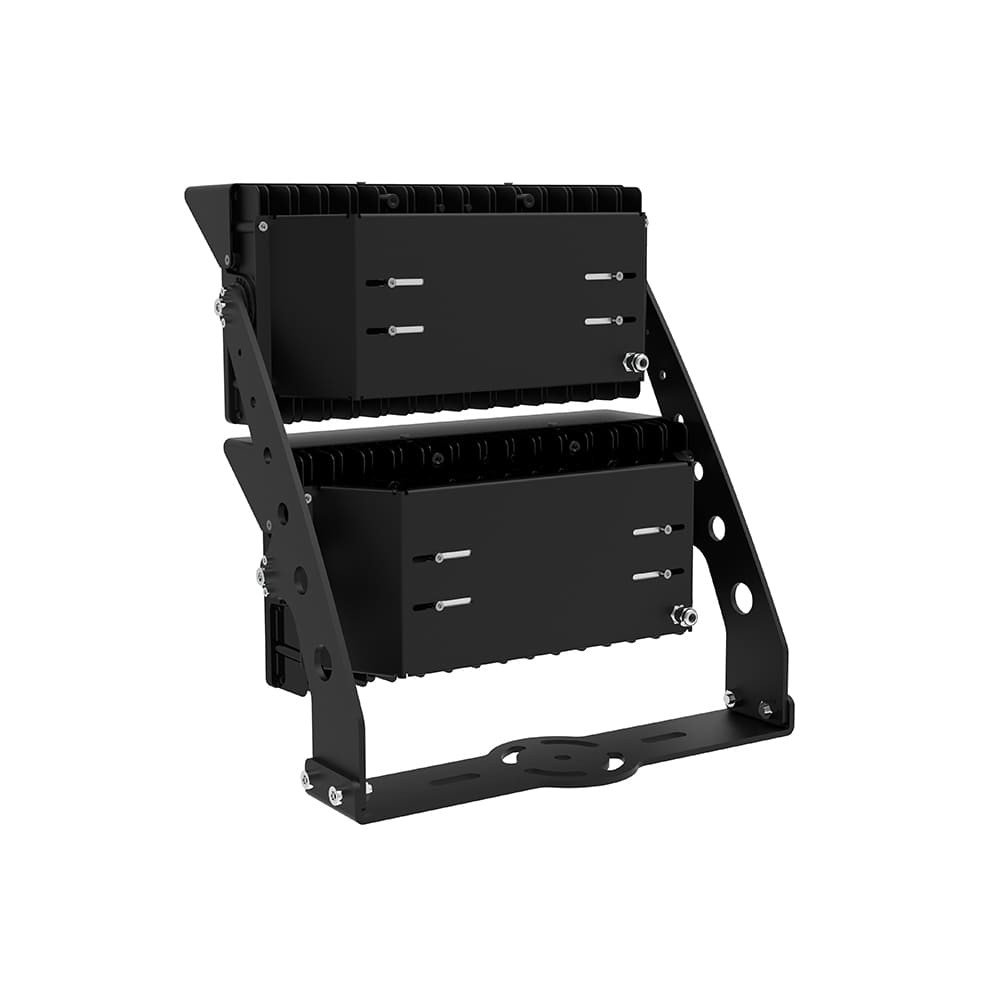

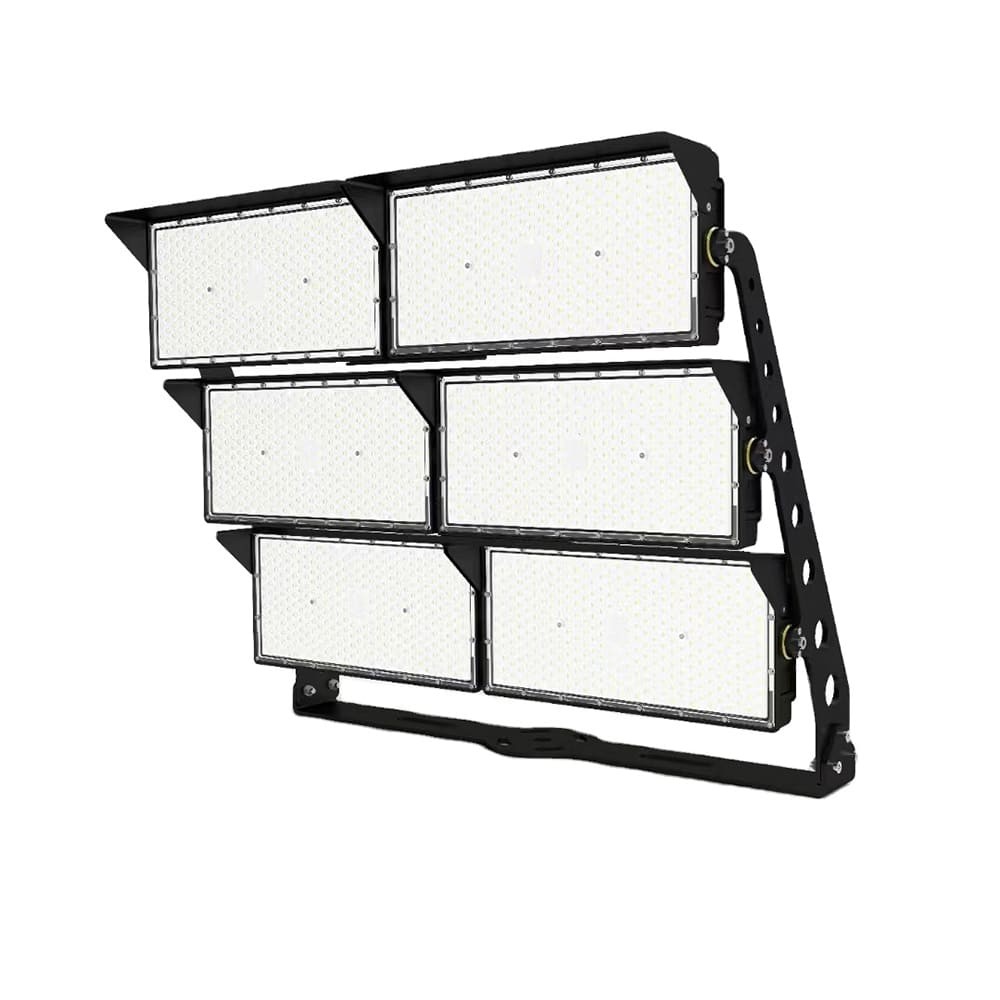

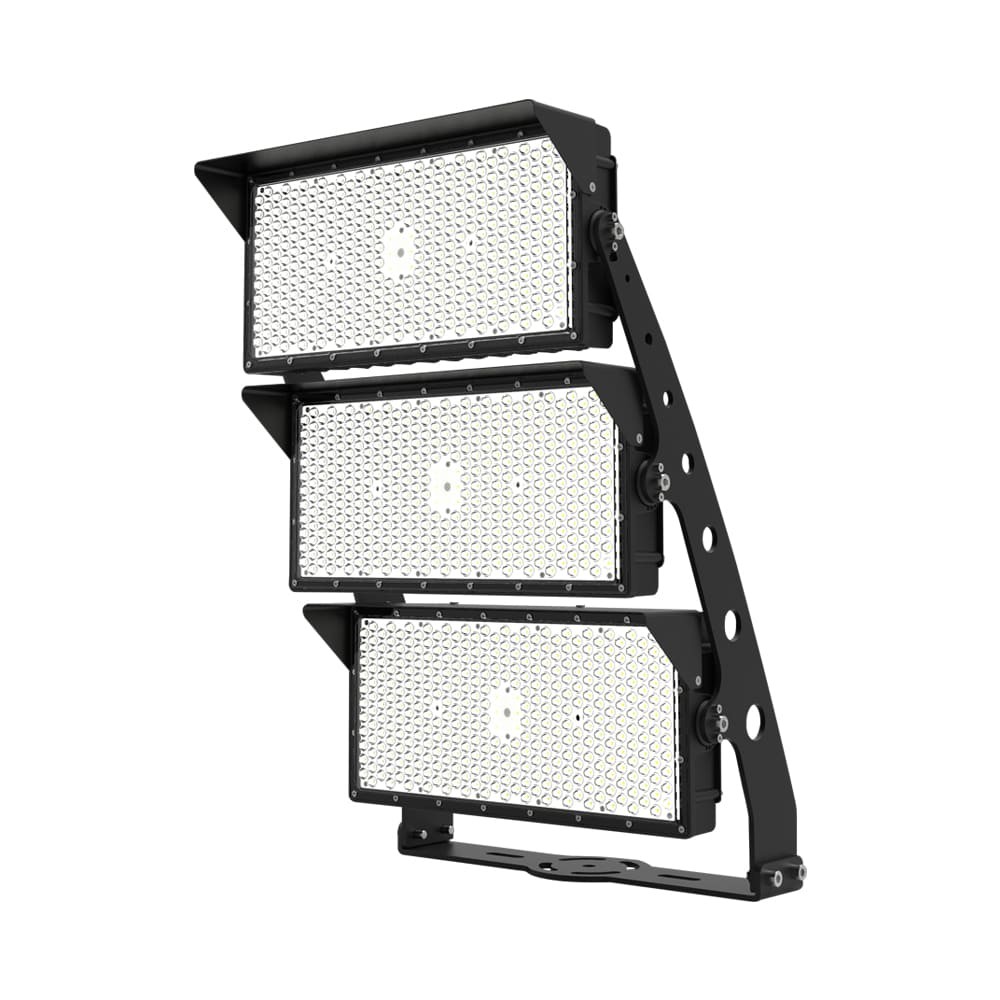

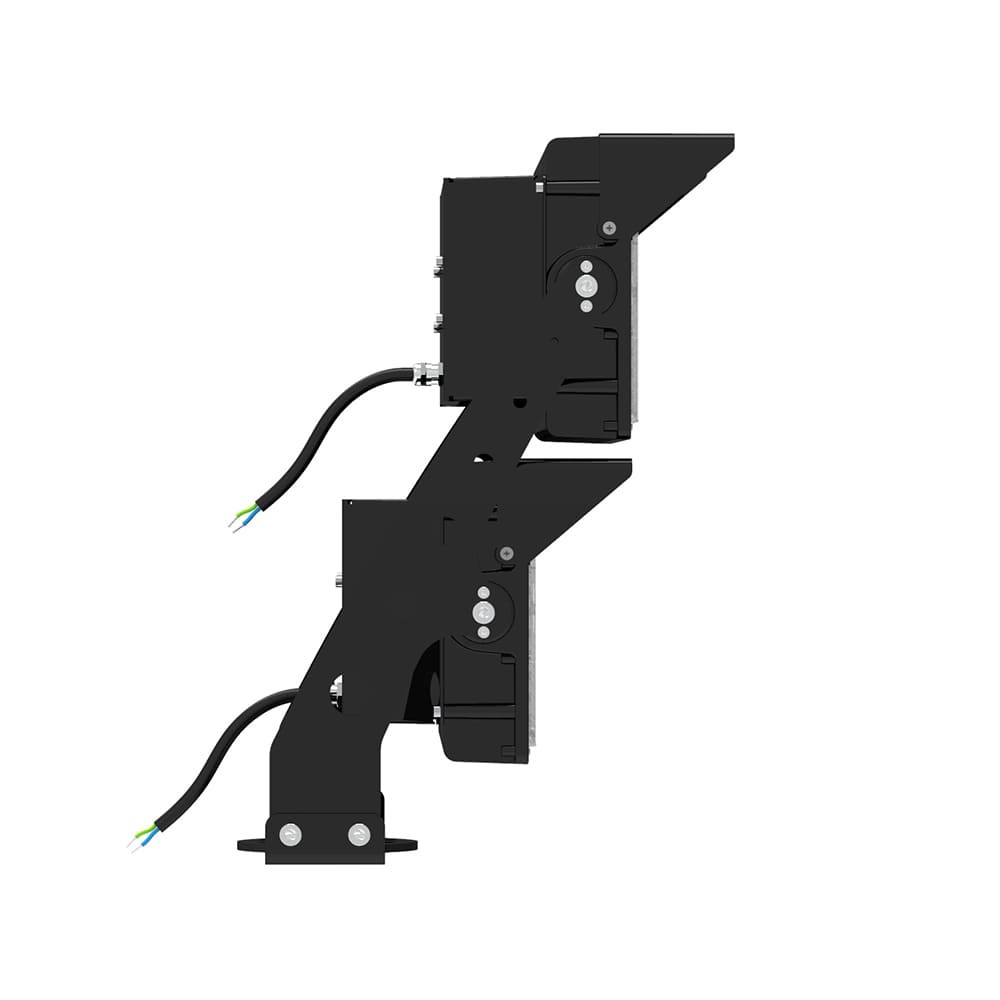

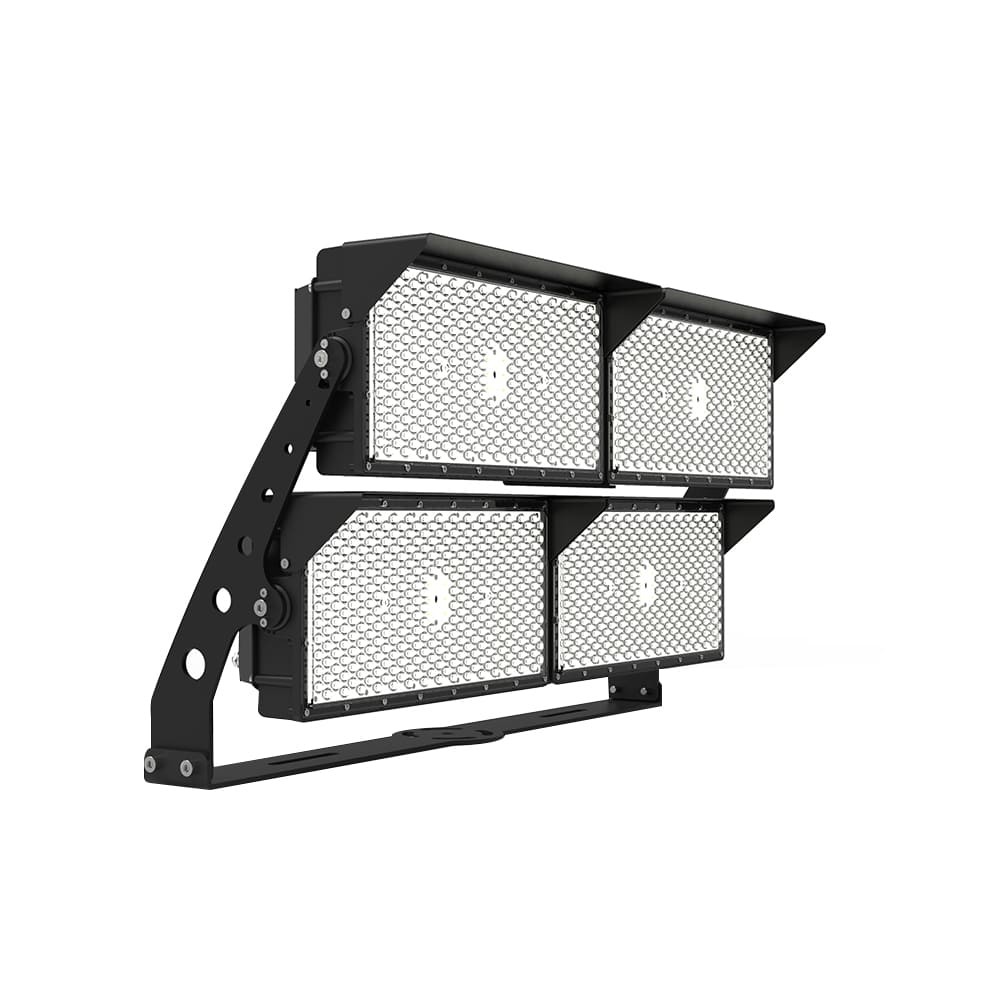

Led sports light (PL-SD-039N)

Input Voltage:AC100~277V
Frequency Range:50~60Hz
Total Harmonic Distortion:<20% (Typical : 10%)
Color Temperature:2700-6500K
Color Rendering Index:CRI>70
IP Rating:IP66

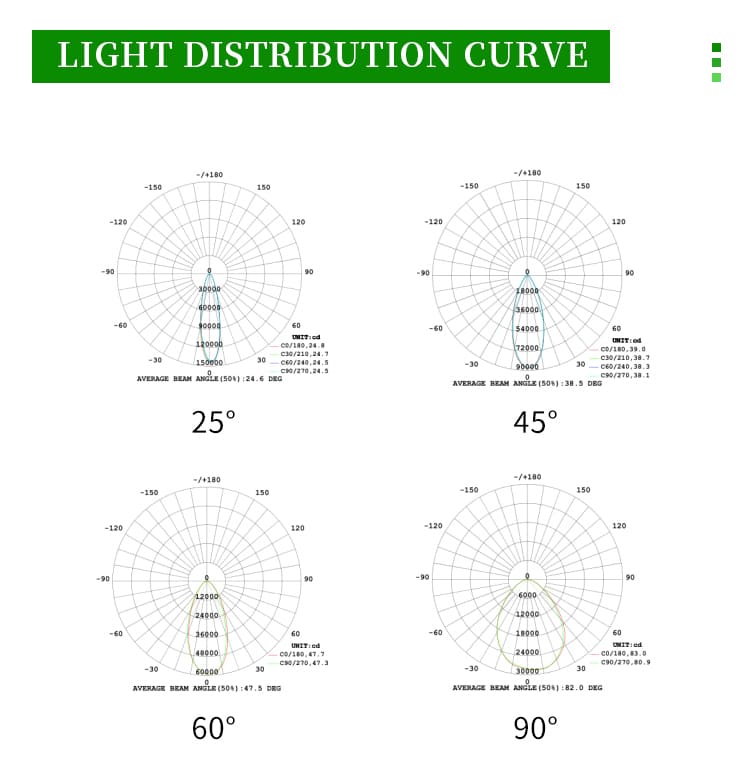

Beam Angle:25°/40°/55°/90°
Housing Color:Black
Working Life:>50,000 hours
Warranty:5 years
Working Environment:-30ºC~+50ºC, 10%~90% RH
Body & Shade Material:Aluminum housing & Annular lens

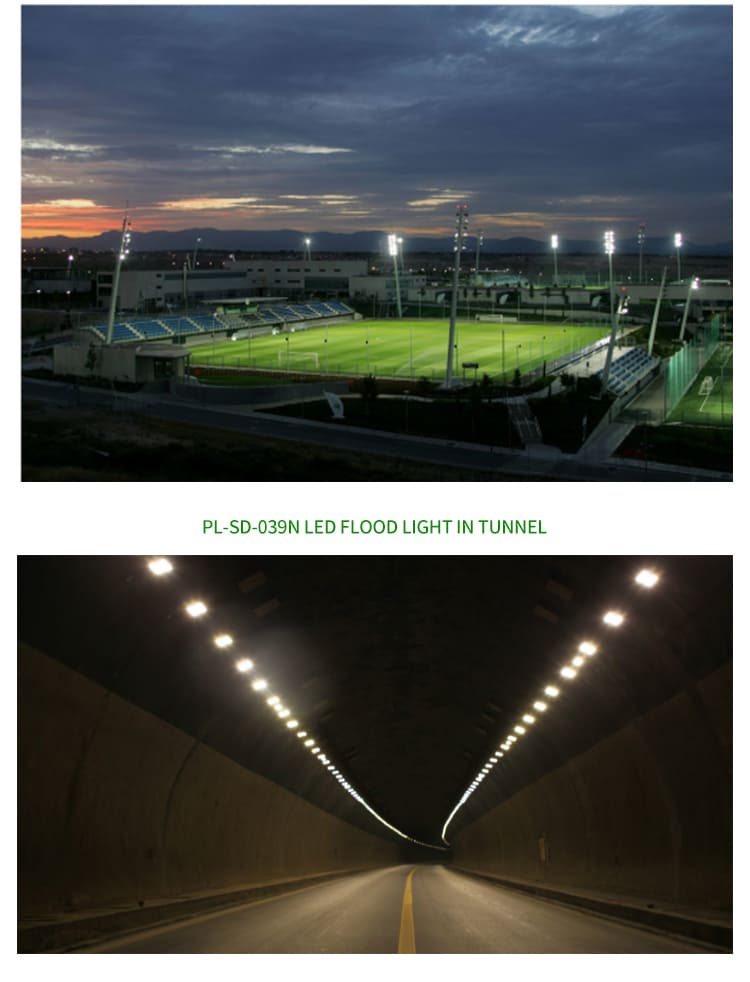

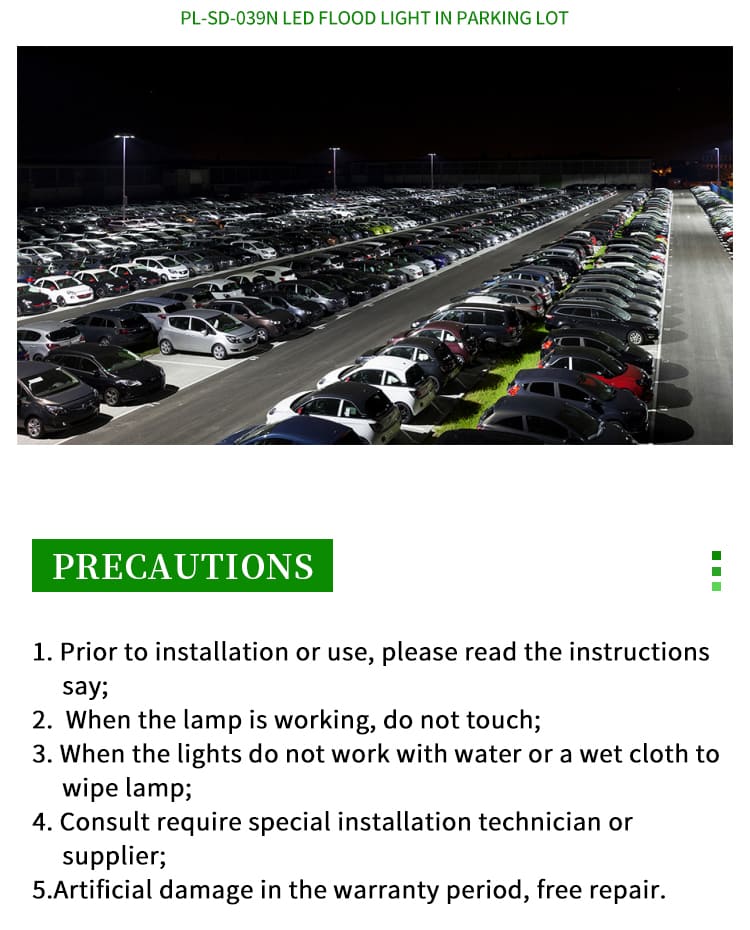

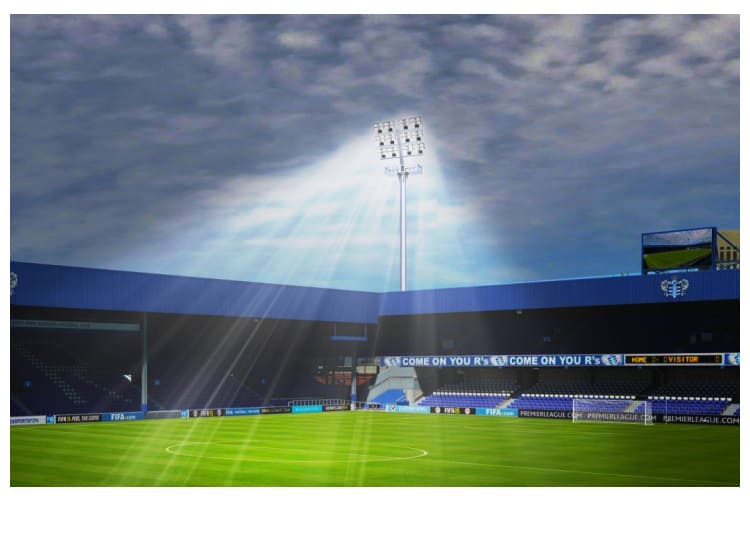

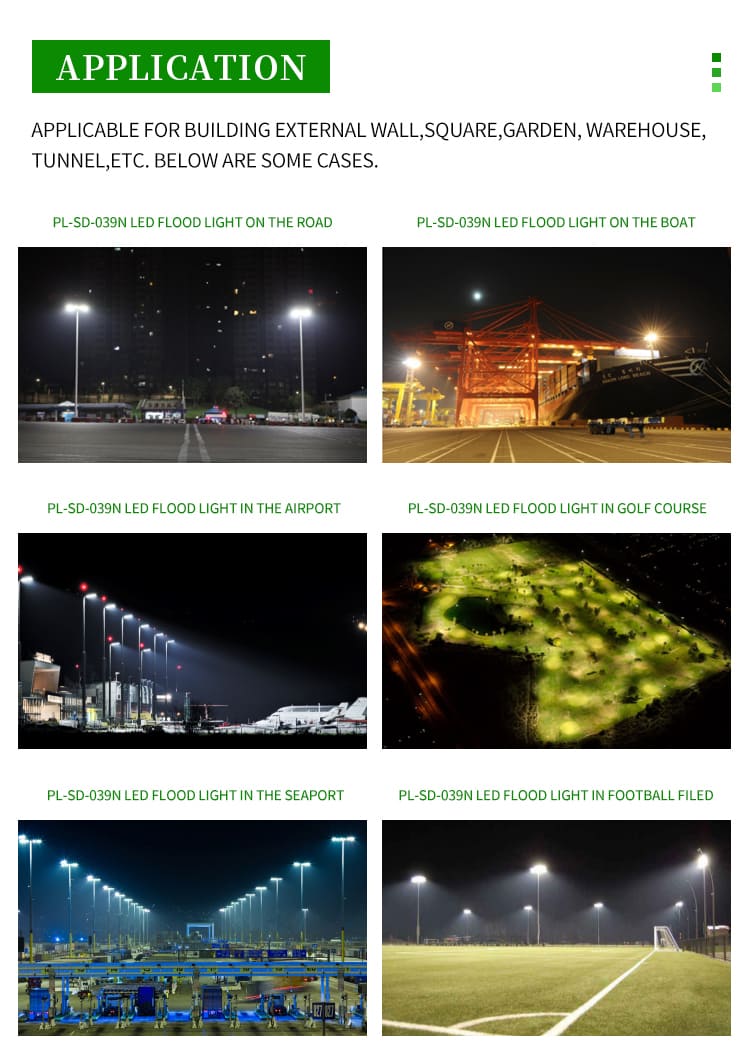

Where Can Use:Applicable for Building external wall,square,project lighting, sport field, high masts, display rack, tunnel, football field etc.

Factory Price For tennis/basketball/football courts lighting LED Stadium Lights Flood Light

Datesheet:

Model	PL-SD-039N

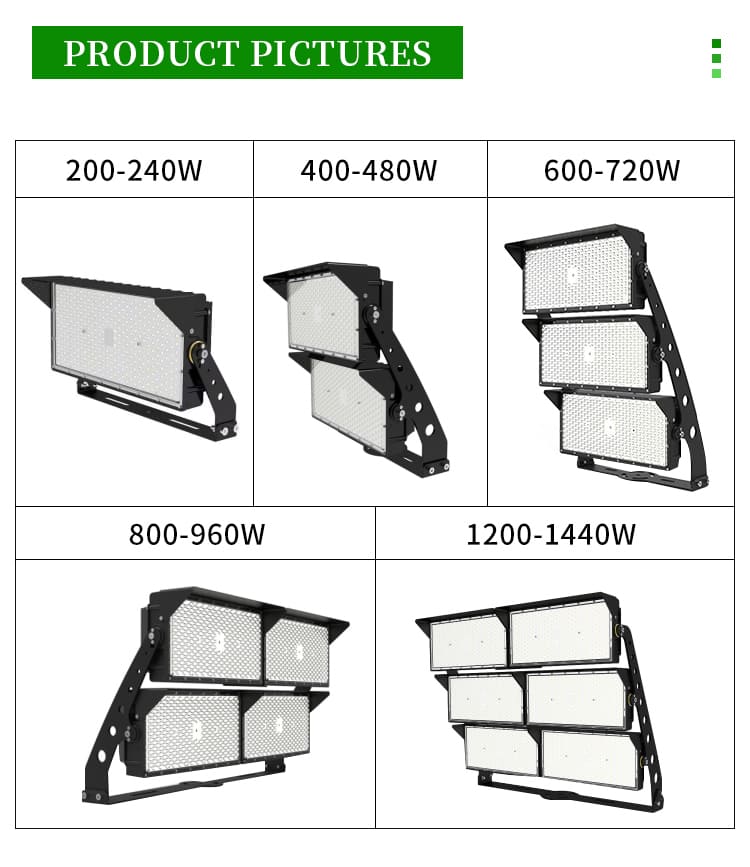

Power	200-240W	400-480W	600-720W	800-960W	1200-1440W

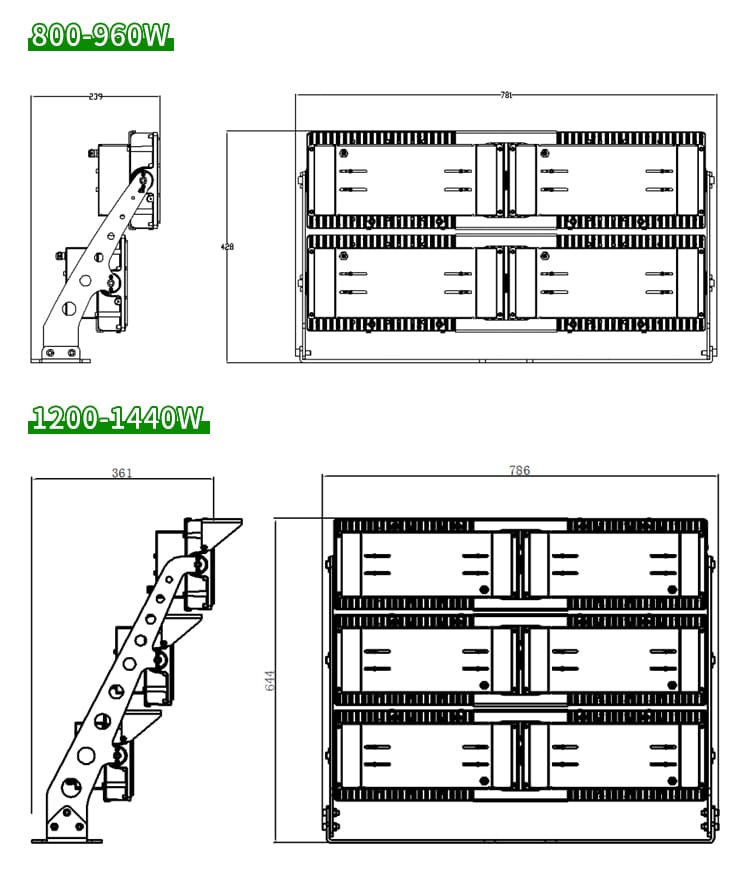

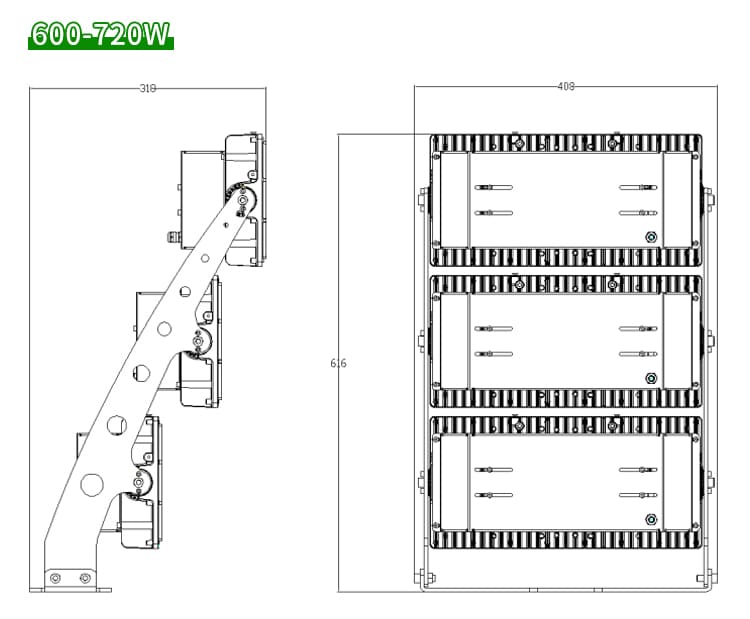

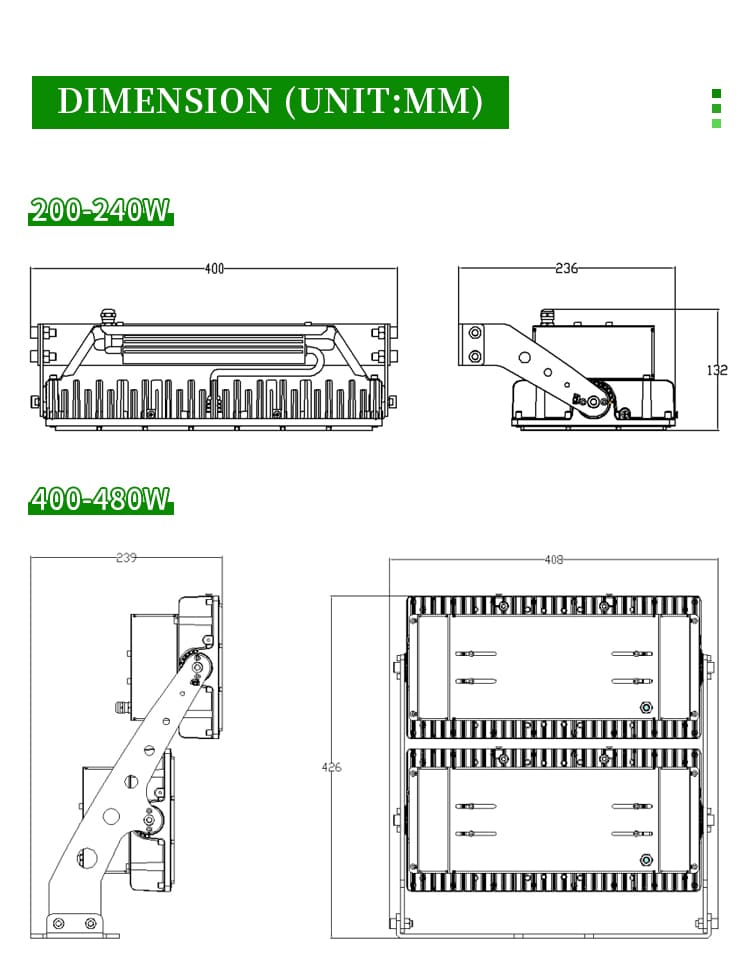

Dimension	400X236X132mm	426X408X239mm	616X408X318mm	781X428X239mm	786X644X361mm
Luminous Flux	140lm/w±5%
LED Source	344PCS Lumileds 3030	688PCS Lumileds 3030	1032PCS Lumileds 3030	1376PCS Lumileds 3030	2064PCS Lumileds 3030
Input Voltage	AC100~277V
Frequency Range	50~60Hz
Total Harmonic Distortion	<20% (Typical : 10%)
Color Temperature	2700-6500K
Color Rendering Index	CRI>70
IP Rating	IP66
Beam Angle	25°/40°/55°/90°
Housing Color	Black
Working Life	>50,000 hours

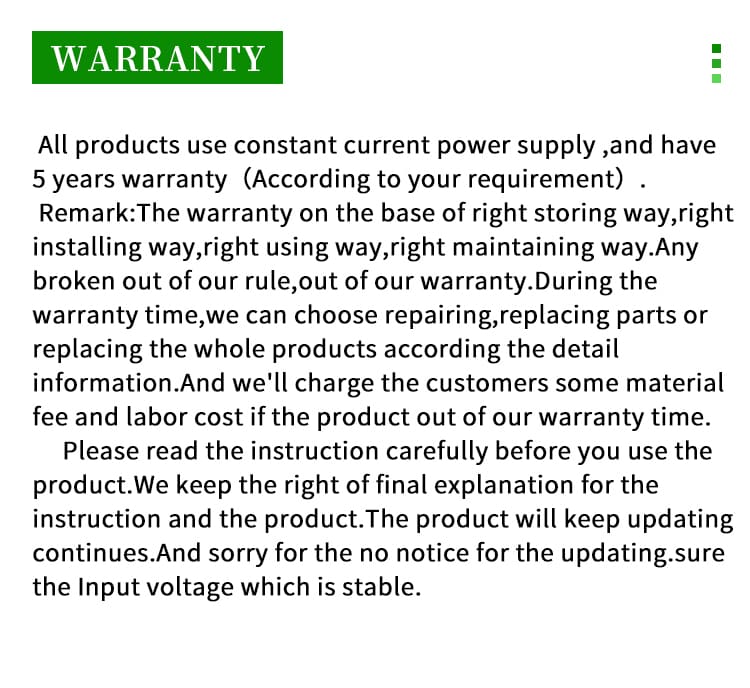

Warranty	5 years
Working Environment	-30ºC~+50ºC, 10%~90% RH
Body & Shade Material	Aluminum housing & Annular lens
Where Can Use	Applicable for Building external wall,square,project lighting, sport field, high masts, display rack, tunnel, football field etc.

FAQ

Q: Whether the LED lights really have 50,000 hours lifespan?

A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from

in lab,actual lifespan is only <=50,000hours. Meanwhile it can also be 80,000 hours lifespan if it adopt very good material.

Q: For same power,why different suppliers with different brightness?

A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip

and same brightness version,the brightness will be slight difference.But please make clear the brightness difference

between LEDs and lamp fixture.

Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized

in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,

while a cooler (higher color temperature) light is used to enhance concentration in offices.

Q: What is CRI?

A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.

Q: What is PF and efficiency?

A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time
