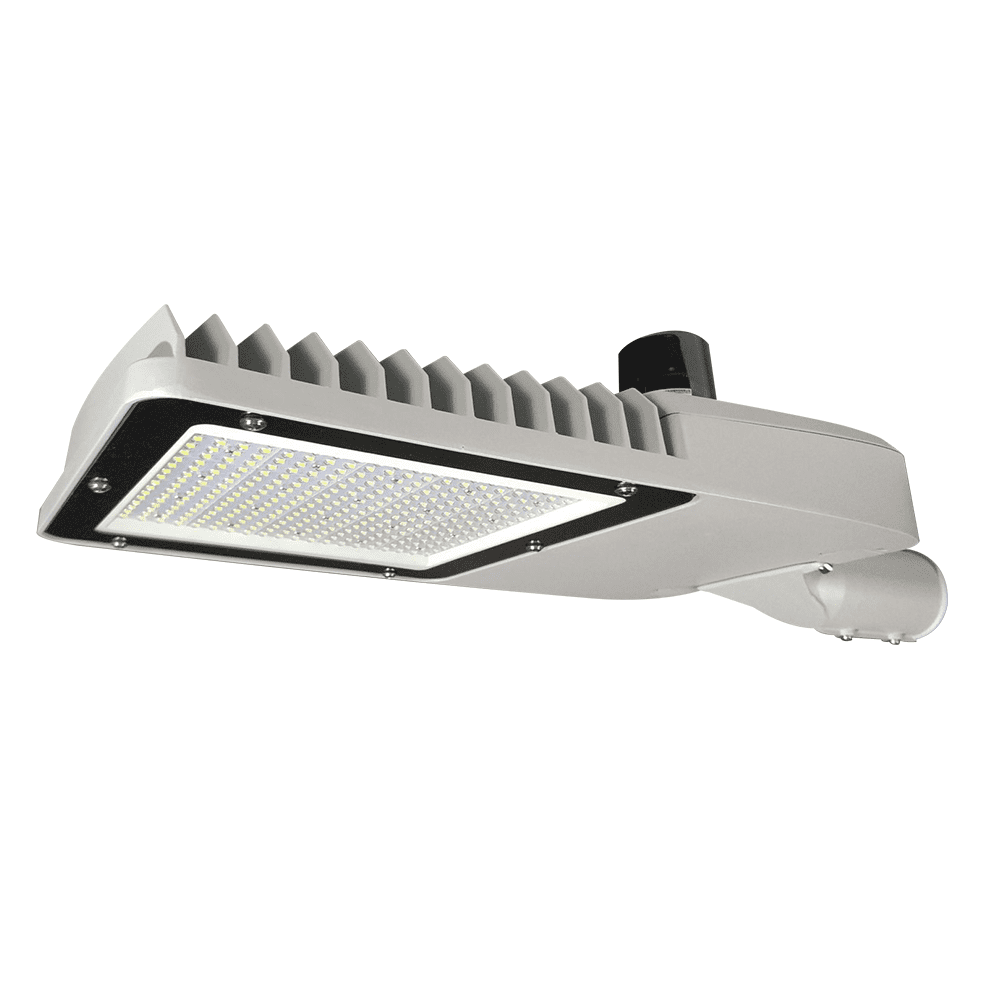

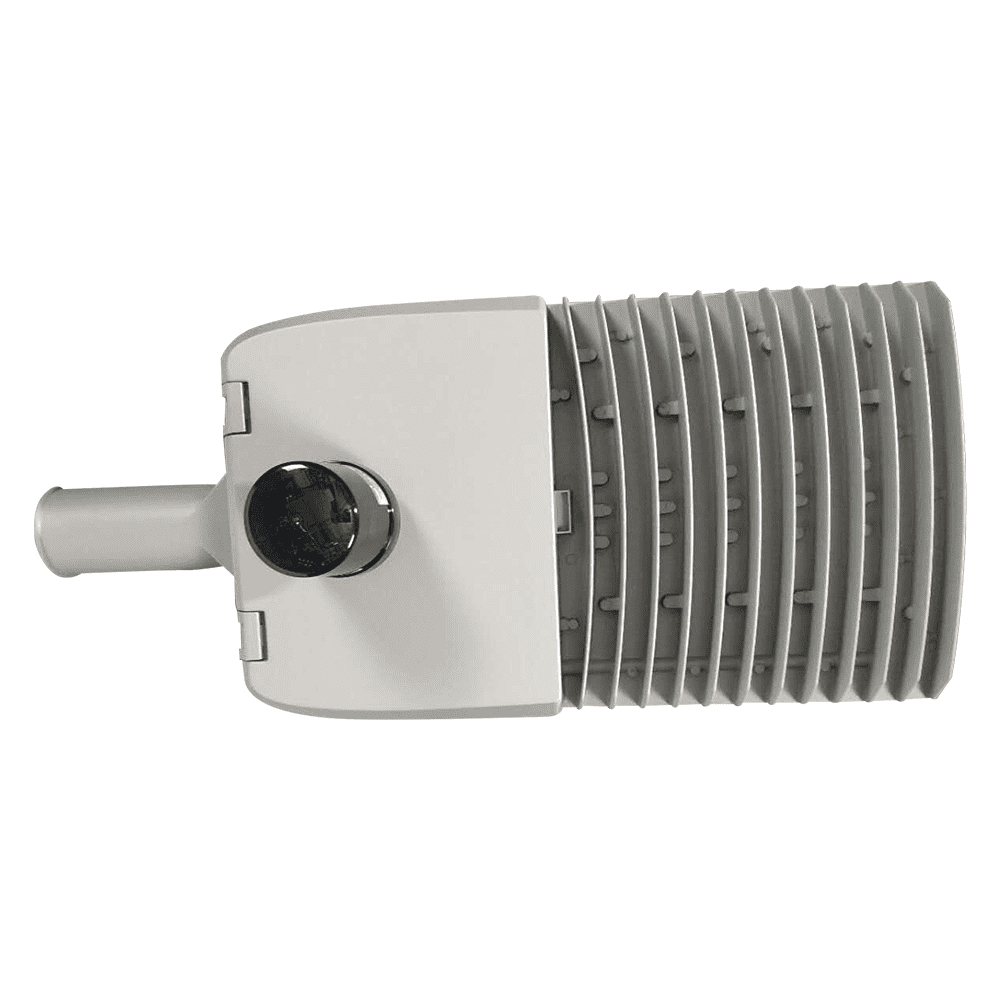

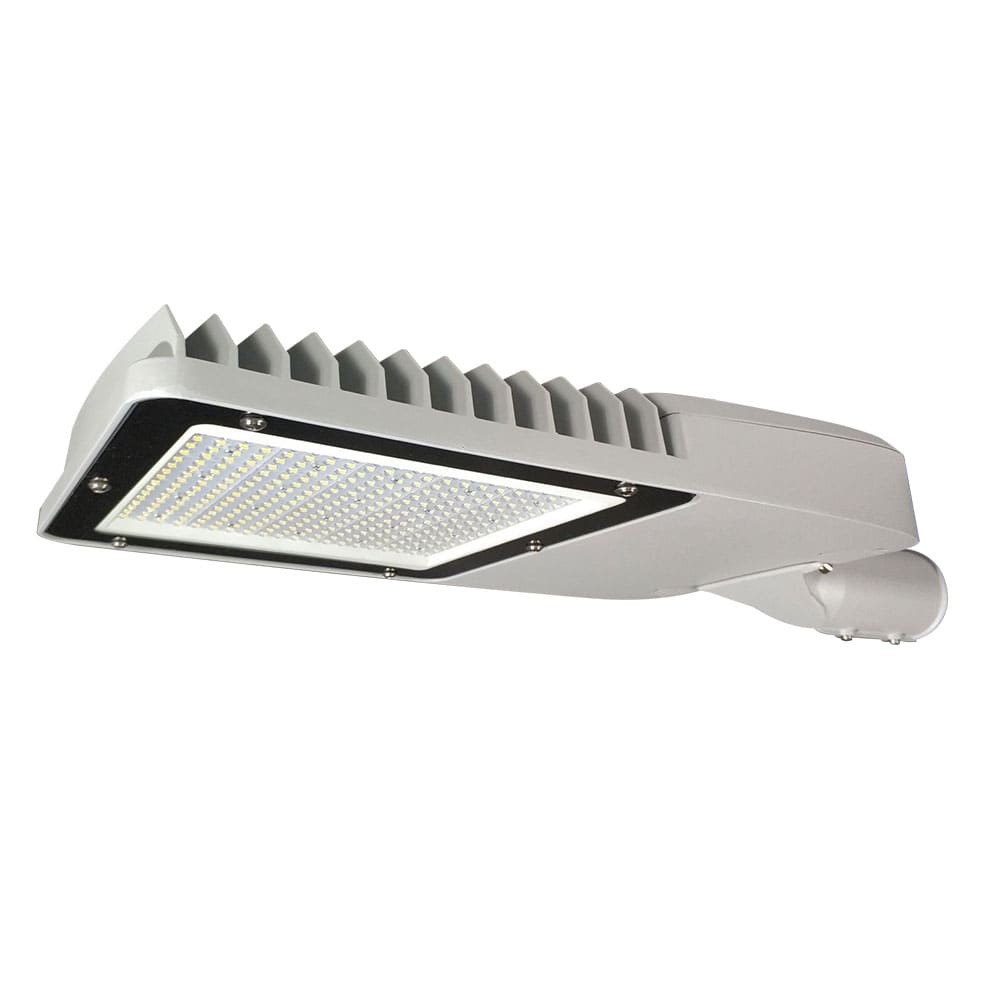

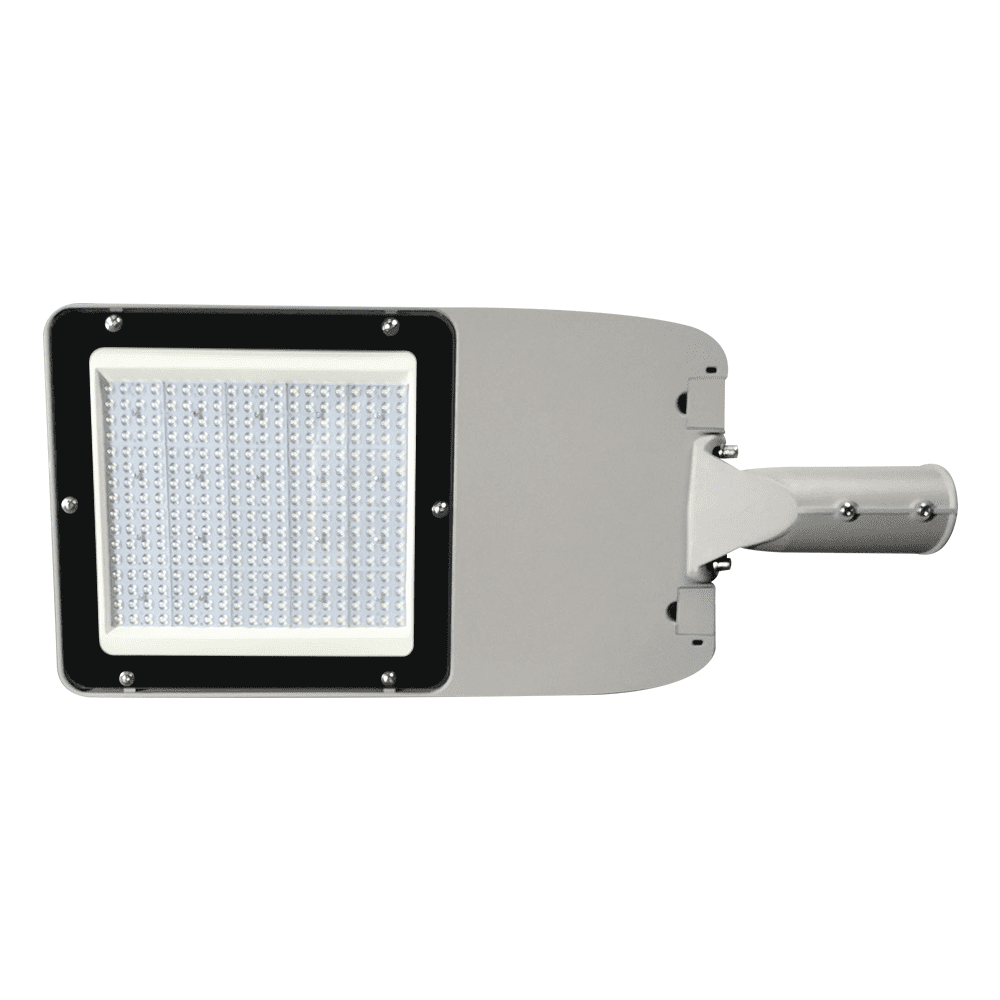

Led Street Light (PL-LD-069)

LED chip:Lumileds  3030SMD
CRI:Ra>70/80
Power Factor:>0.95
Light efficiency:150LM/W±5%
Beam angle :T2 T3 T4 T5
LED driver brand:HONTEK,Inventronics , Meanwell driver ELG/HLG series
Surge protection:6KV/10KV/20KV as customers' rerquirement
Waterproof and IK:IP66 IK10
Housing material:Die-cast  Aluminum +Steel glass
Storage temperature: -40℃~85℃ 10%~90% H.R
Work temperature:-40℃~50℃  20%~90% H.R
Lifespan:100000 hours

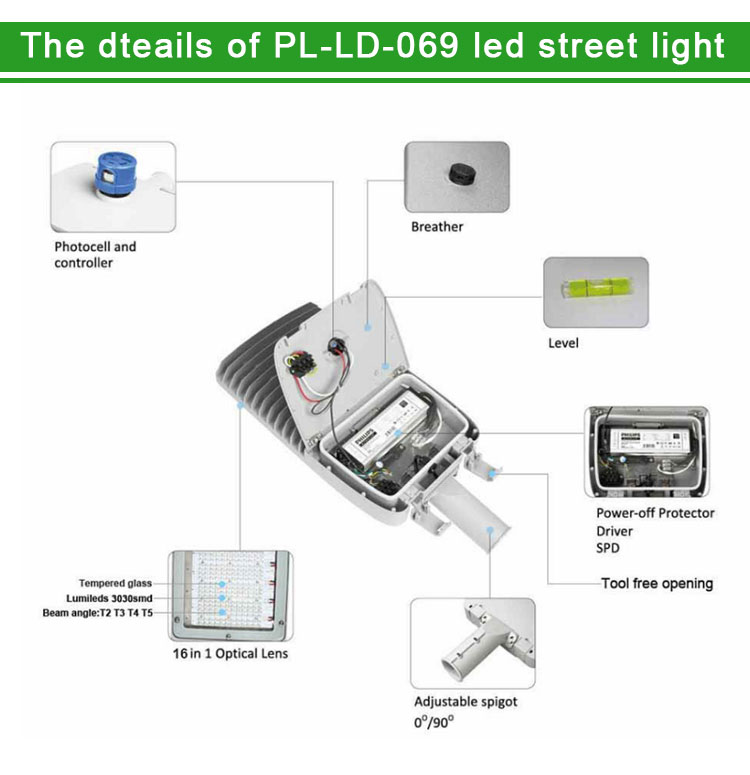

Options:Photocell ,PWM /DALI/1-10V/Timing/Daylight sensor/Nema 7  Pin socket
 Certificates:CE ROHS SAA CB  ENEC IK10 IP66  LM80 LM79 TM21
warranty:5 -8years

EMAIL

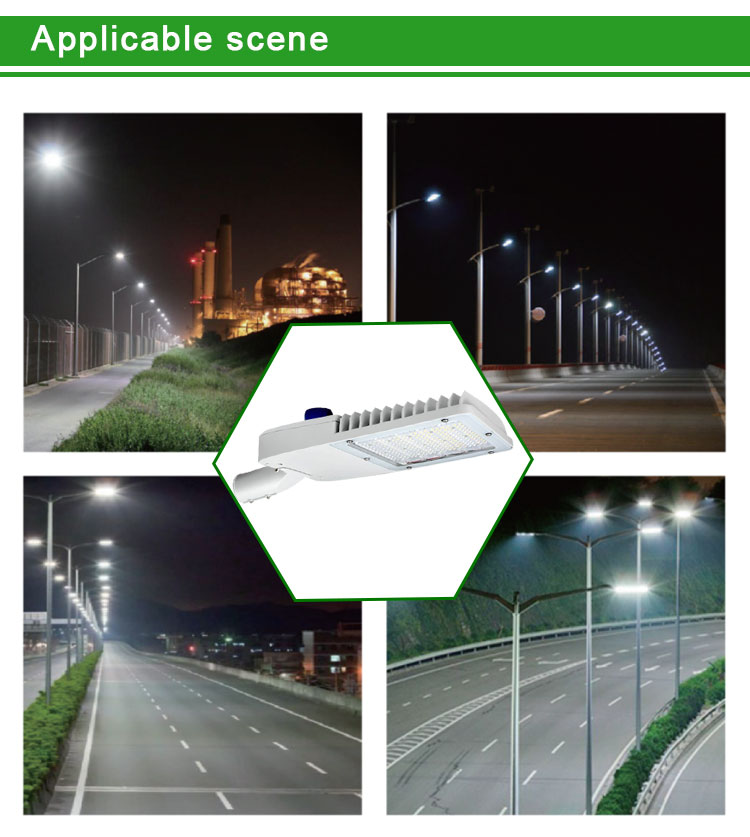

Villa/Garden/ Highway/ Pathway 5 Years Warranty IP66 Photocell NEMA Socket LED Street Light

LED Street light  Specifications

Model

PL-LD-069

PL-LD-069

PL-LD-069

Input Voltage

100-305 V AC

Power

30W 40W 50W 60W

70W 80W 90W 100w  120W

150W  180W 200W

240W 300W

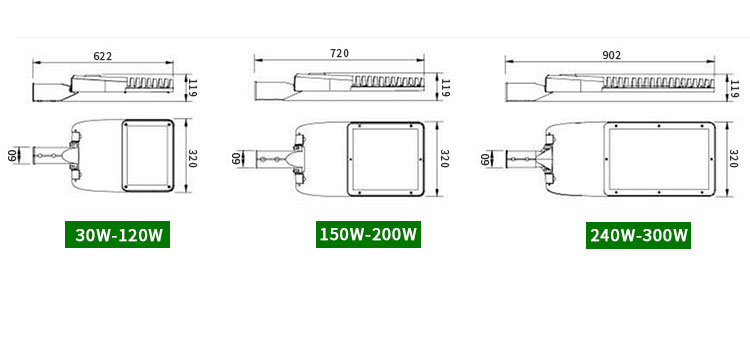

Size(mm)

622*320*119mm

720*320*119mm

902*320*119mm

LED chip

Lumileds  3030SMD

CRI

Ra>70/80

Power Factor

>0.95

Light efficiency

150LM/W±5%

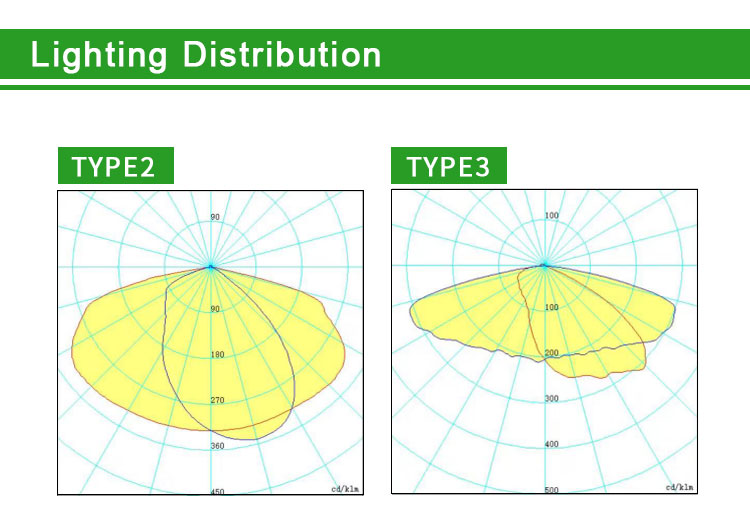

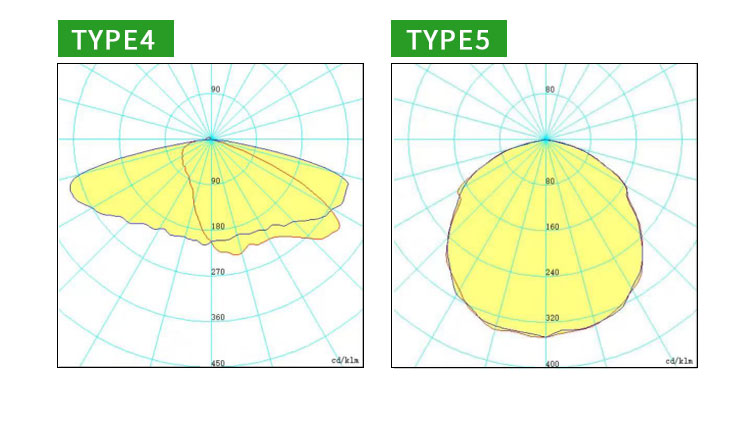

Beam angle

T2 T3 T4 T5

LED driver brand

HONTEK,Inventronics , Meanwell driver ELG/HLG series

Surge protection

6KV/10KV/20KV as customers' rerquirement

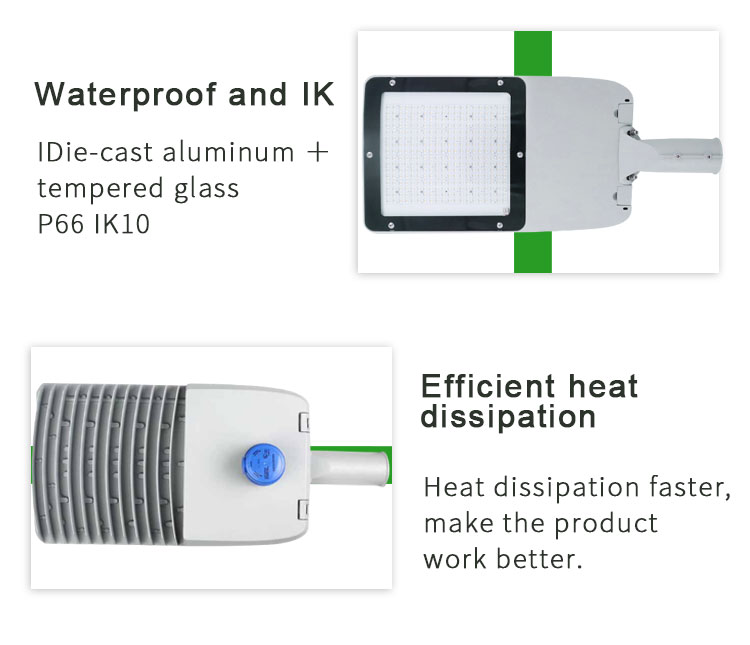

Waterproof and IK

IP66 IK10

Housing material

Die-cast  Aluminum +Steel glass

Storage temperature

-40℃~85℃ 10%~90% H.R

Work temperature

-40℃~50℃  20%~90% H.R

Lifespan

100000 hours

Options

Photocell ,PWM /DALI/1-10V/Timing/Daylight sensor/Nema 7  Pin socket

 Certificates

CE ROHS SAA CB  ENEC IK10 IP66  LM80 LM79 TM21

warranty

5 -8years

FAQ




Q: Whether the  LED lights really have 50,000 hours lifespan?

A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from

in lab,actual lifespan is only  <=50,000hours. Meanwhile it can also be 80,000 hours lifespan if it adopt very good material.



Q: For same power,why different suppliers with different brightness?

A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip

and same brightness version,the brightness will be slight difference.But please make clear the brightness difference

between LEDs and lamp fixture.



Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized

in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,

while a cooler (higher color temperature) light is used to enhance concentration in offices.



Q: What is CRI?

A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.



Q: What is PF and efficiency?

A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time
