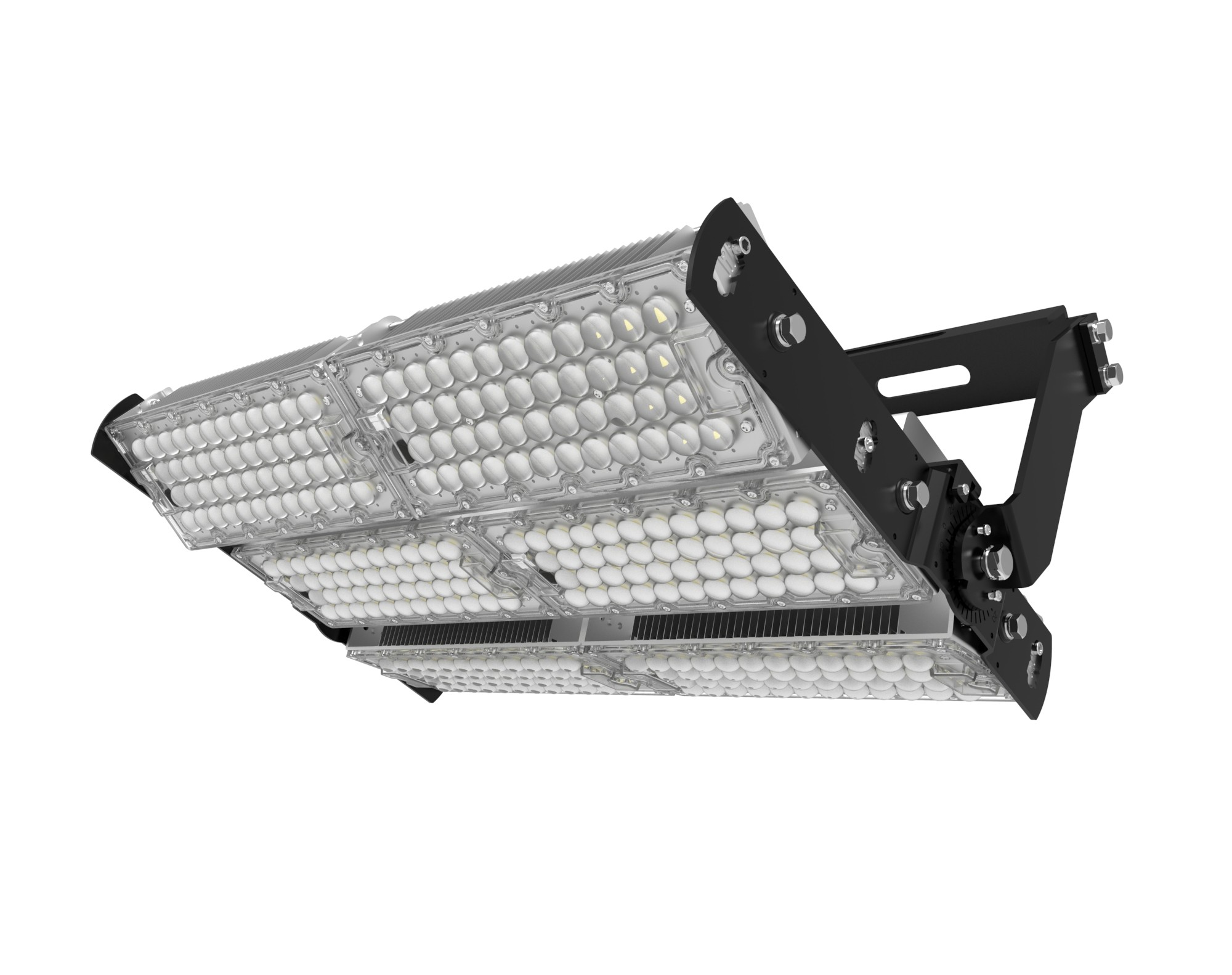

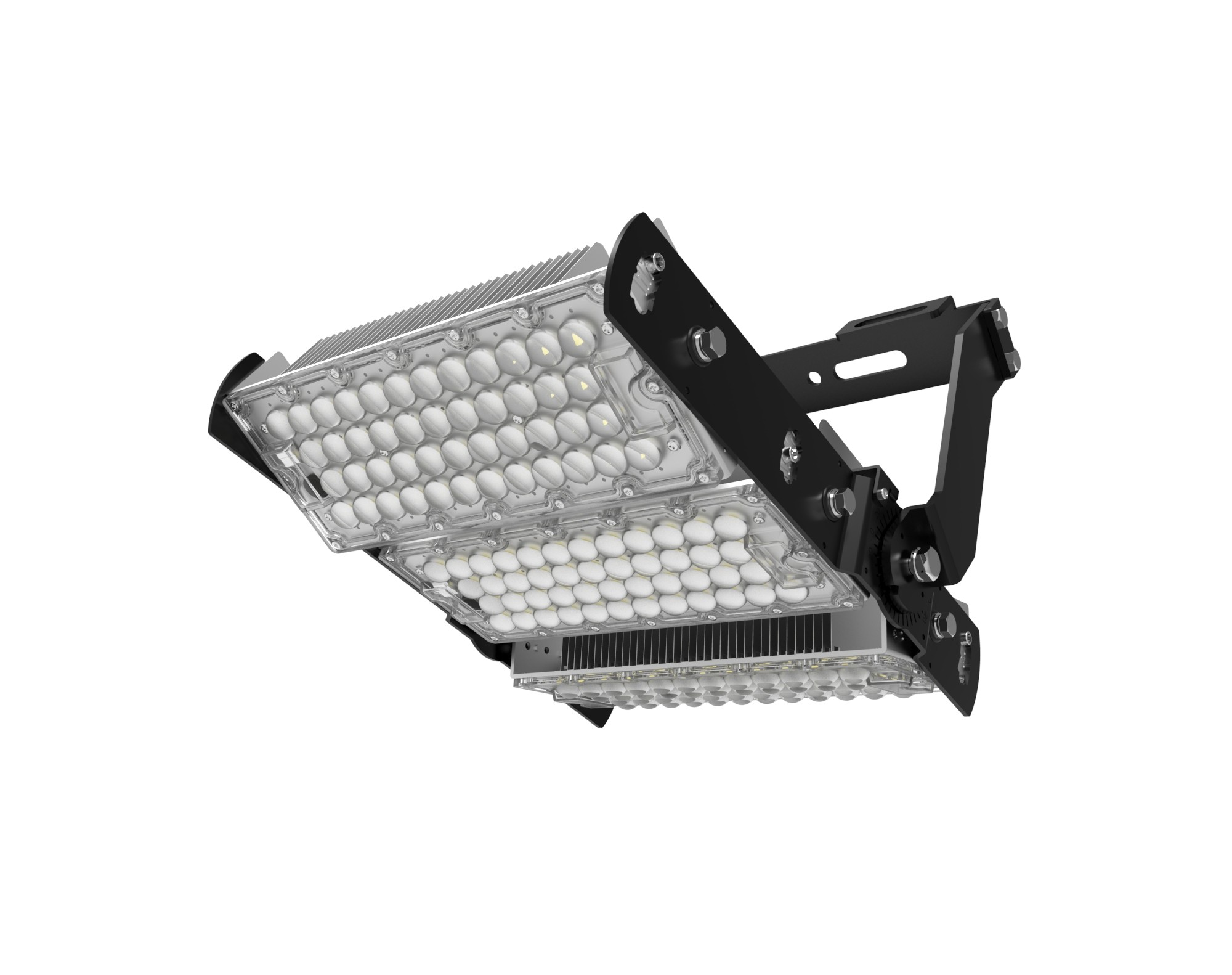

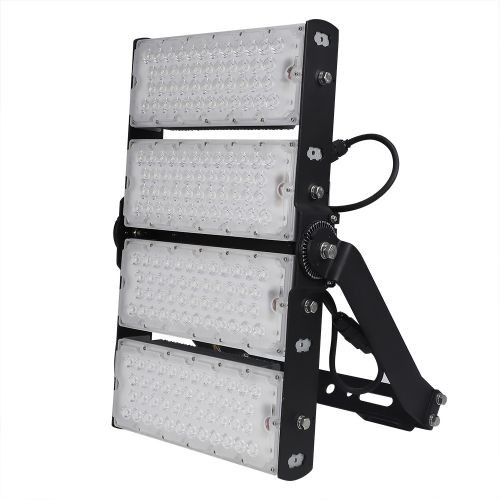

Led sports light (PL-SD-039E)

LEDs & Driver:CREE 3535SMD/Philips5050+Meanwell Driver etc.
Beam Angle:8°(CREE 3535SMD)/20°/40°/60°/90°/140x100°/120°(Philips 5050smd)
Input Voltage:AC90-305V
CCT 2200K,3000K,4000K,5000K,5700K,6500K
CRI >70/80
Power Factor:>0.9
Operating Temperature:-25°C--50°C
IP&IK Degree:IP65/IP67/IK08
Certification:TUV-CE(EMC.LVD, RoHS)/SAA/CB
Surge Protection:6-10KV

EMAIL

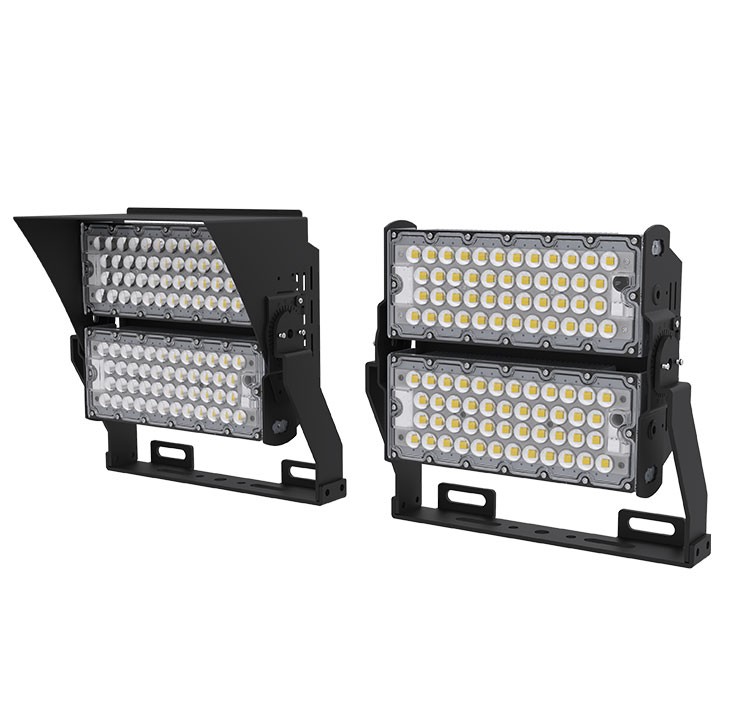

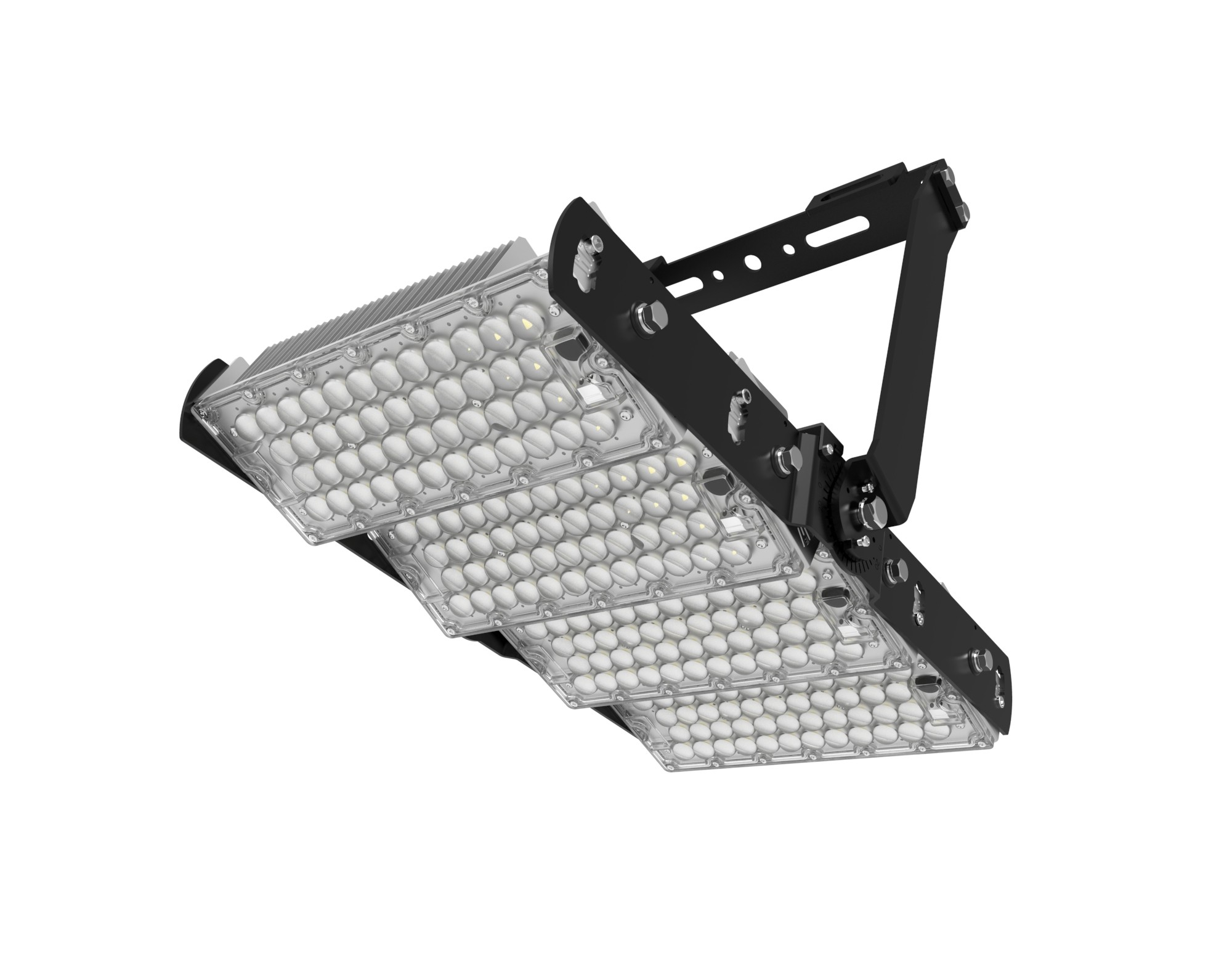

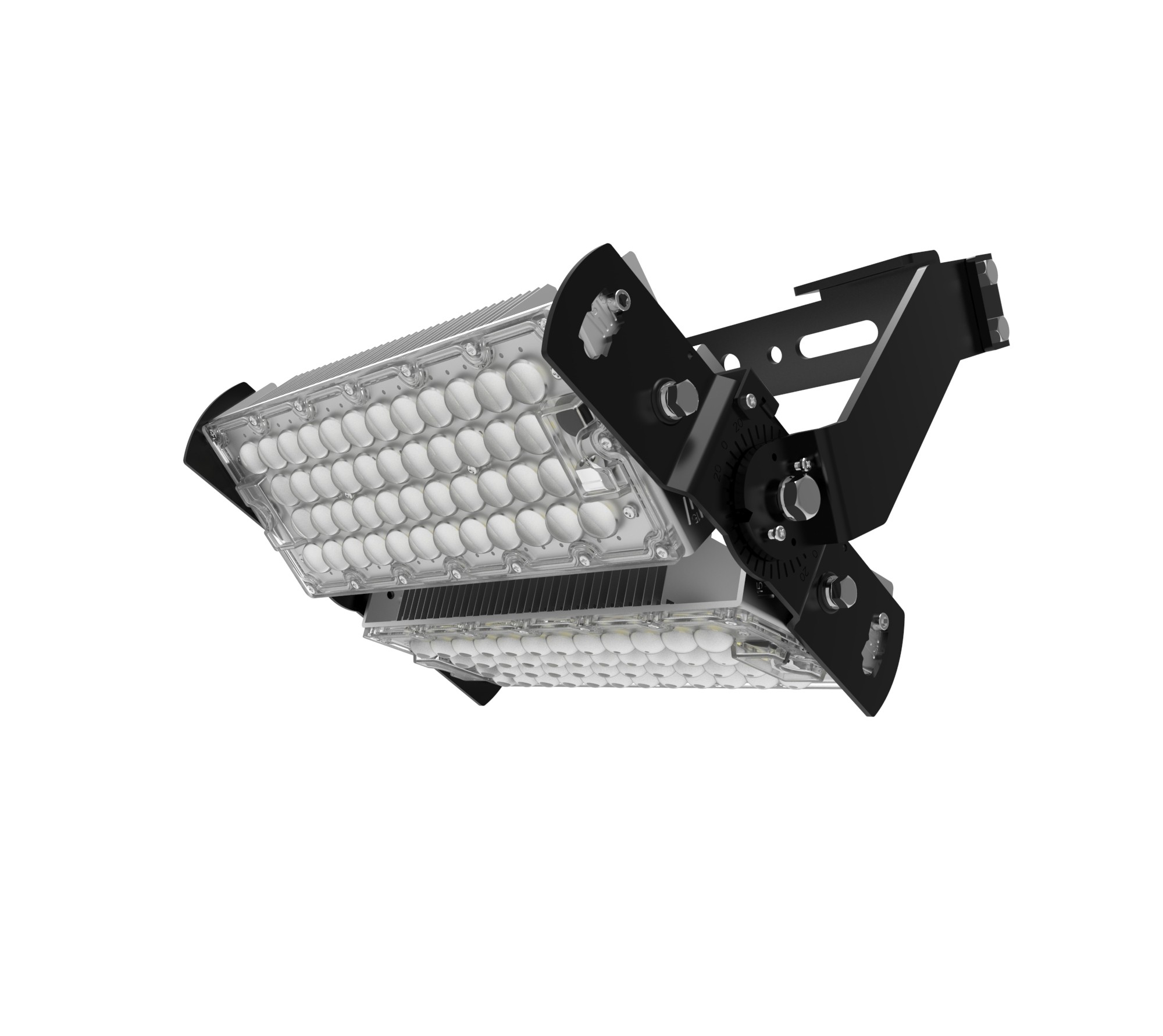

Outdoor Waterproof IP67 High Power Sports Filed Stadium LED Flood Light

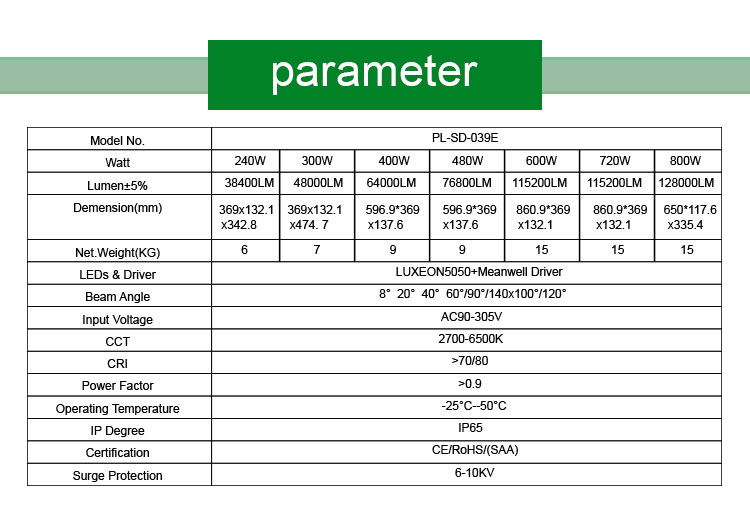

Parameters



Model No.

PL-SD-039E-240W

PL-SD-039E-300W

PL-SD-039E-360W

PL-SD-039E-400W

PL-SD-039E-480W

PL-SD-039E-600W

Watt

240W

300W

360W

400W

480W

600W

Lumen±5%

38400LM

48000LM

57600LM

64000LM

76800LM

96000LM

Dimension(mm)

369X342.8X131.6

474.8X369X131.6

474.8X369X131.6

596.9X369X131.6

596.9X369X131.6

728.9X369X131.6

Net. Weight(KG)

5.5

7.5

7.5

9

9

13

LEDs & Driver

CREE 3535SMD/Philips5050+Meanwell Driver etc.

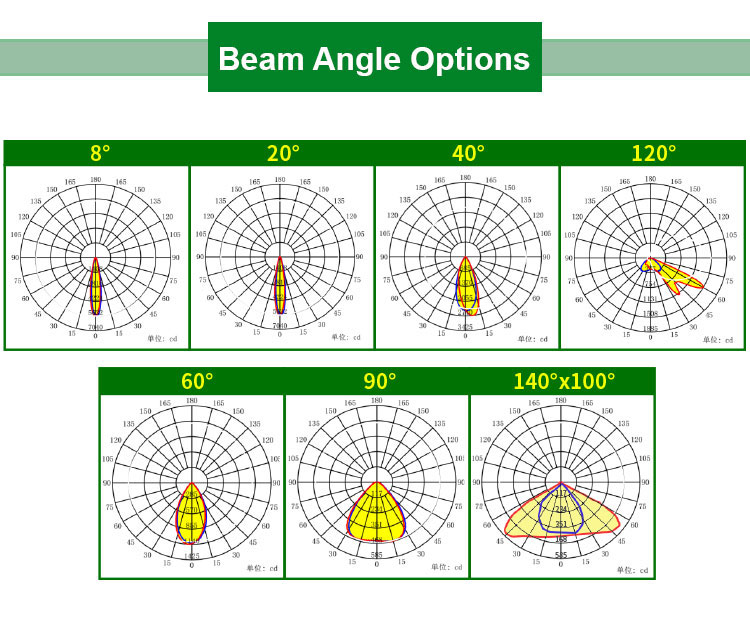

Beam Angle

CREE 3535SMD/20°/40°/60°/90°/140x100°/120°(Philips 5050smd)

Input Voltage

AC90-305V

CCT

2200K,3000K,4000K,5000K,5700K,6500K

CRI

>70/80

Power Factor

>0.9

Operating Temperature

-25°C--50°C

IP&IK Degree

IP65/IP67/IK08

Certification

TUV-CE(EMC.LVD, RoHS)/SAA/CB

Surge Protection

6-10KV

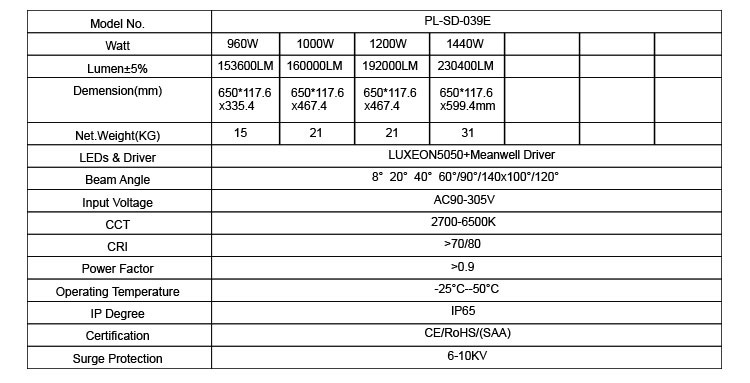

Model No.

PL-SD-039E-720W

PL-SD-039E-800W

PL-SD-039E-960W

PL-SD-039E-1000W

PL-SD-039E-1200W

PL-SD-039E-1440W

Watt

720W

800W

960W

1000W

1200W

1440W

Lumen±5%

115200LM

128000LM

153600LM

160000LM

192000LM

230400LM

Dimension(mm)

860.9X369X131.6

655X596.9X131.6

655X596.9X131.6

728.9X655X131.6

728.9X655X131.6

860.9X655X131.6

Net. Weight(KG)

15

21

21

25

25

31

LEDs & Driver

CREE 3535SMD/Philips5050+Meanwell Driver etc.

Beam Angle

CREE 3535SMD/20°/40°/60°/90°/140x100°/120°(Philips 5050smd)

Input Voltage

AC90-305V

CCT

2200K,3000K,4000K,5000K,5700K,6500K

CRI

>70/80

Power Factor

>0.9

Operating Temperature

-25°C--50°C

IP Degree

IP65

Certification

CE/RoHS/SAA/CB

Surge Protection

6-10KV

FAQ




Q: Whether the  LED lights really have 50,000 hours lifespan?

A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from

in lab,actual lifespan is only  <=50,000hours. Meanwhile it can also be 80,000 hours lifespan if it adopt very good material.



Q: For same power,why different suppliers with different brightness?

A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip

and same brightness version,the brightness will be slight difference.But please make clear the brightness difference

between LEDs and lamp fixture.



Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized

in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,

while a cooler (higher color temperature) light is used to enhance concentration in offices.



Q: What is CRI?

A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.



Q: What is PF and efficiency?

A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time
