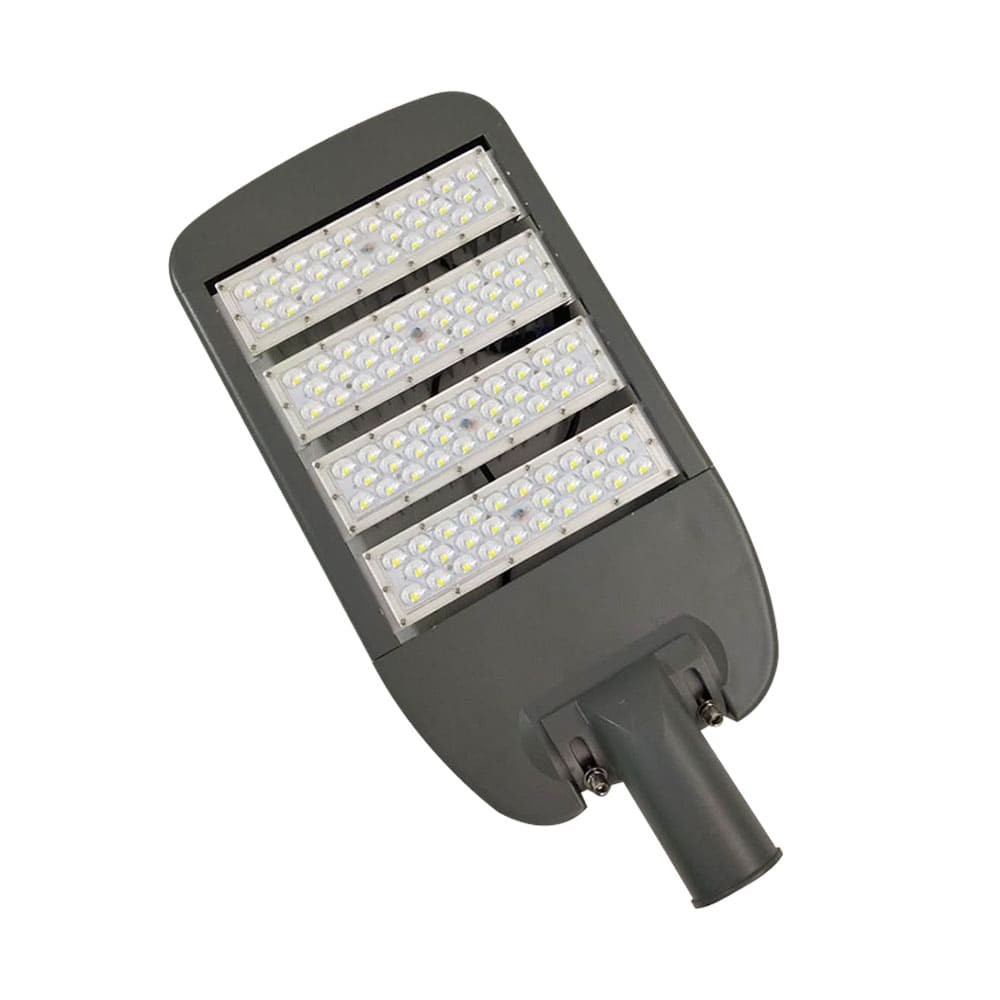

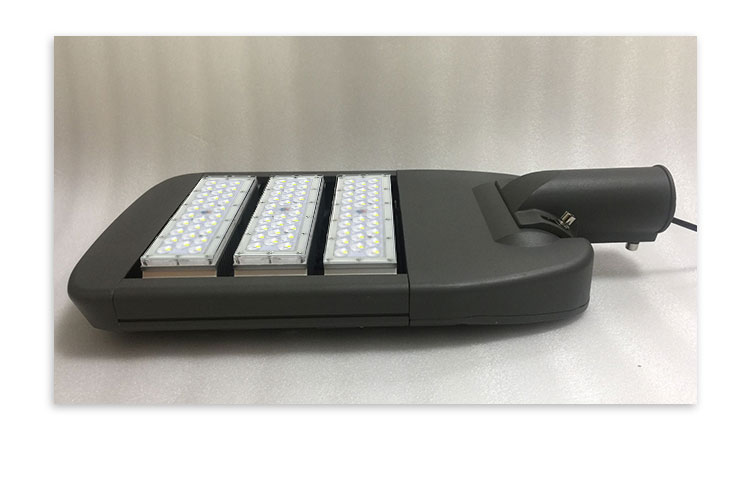

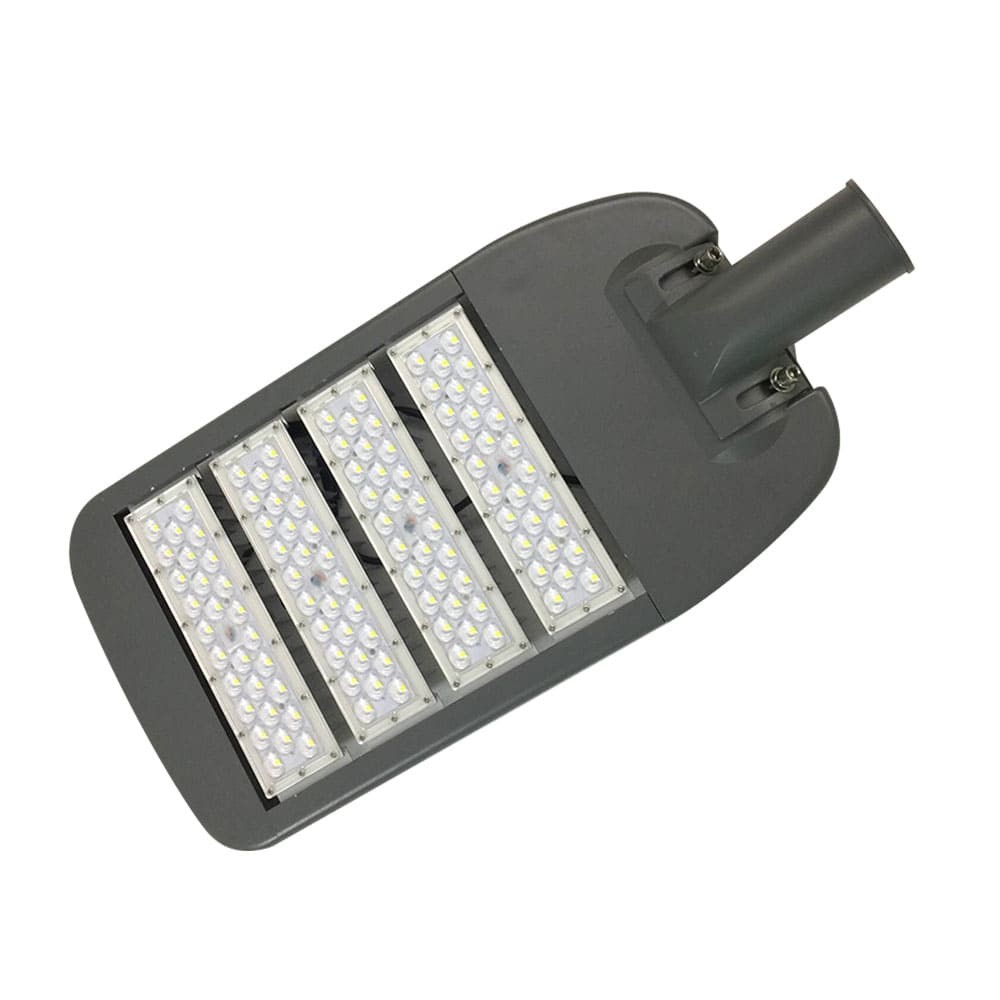

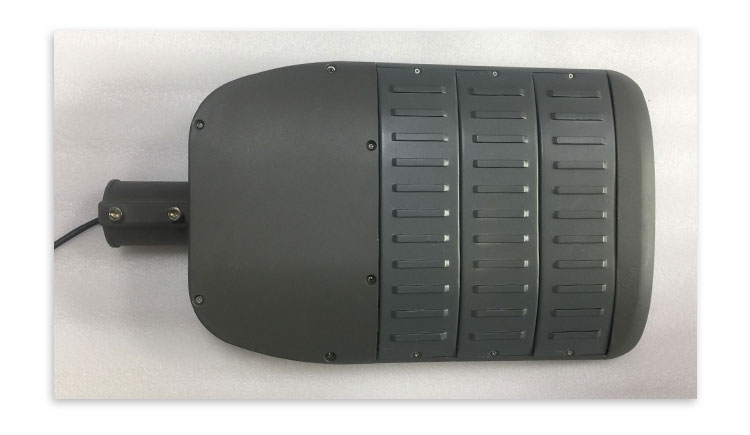

Led Street Light (PL-LD-058S)

LED chip:Lumileds 5050SMD
CRI:Ra>70/80
Power Factor:>0.95
Light efficiency:170LM/W±5%
Beam angle :70*150°
LED driver brand:SOSEN, Meanwell driver  series
Surge protection:6KV/10KV/20KV as customers' rerquirement

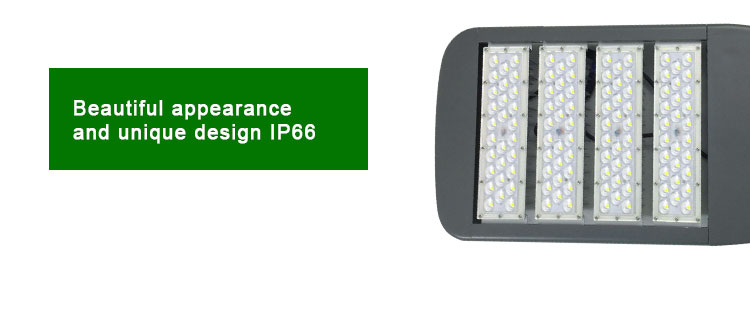

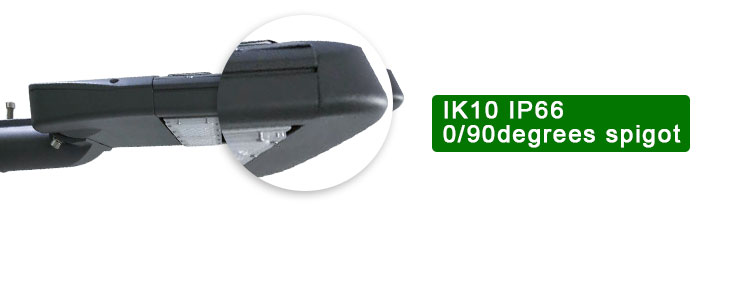

Waterproof:IP66

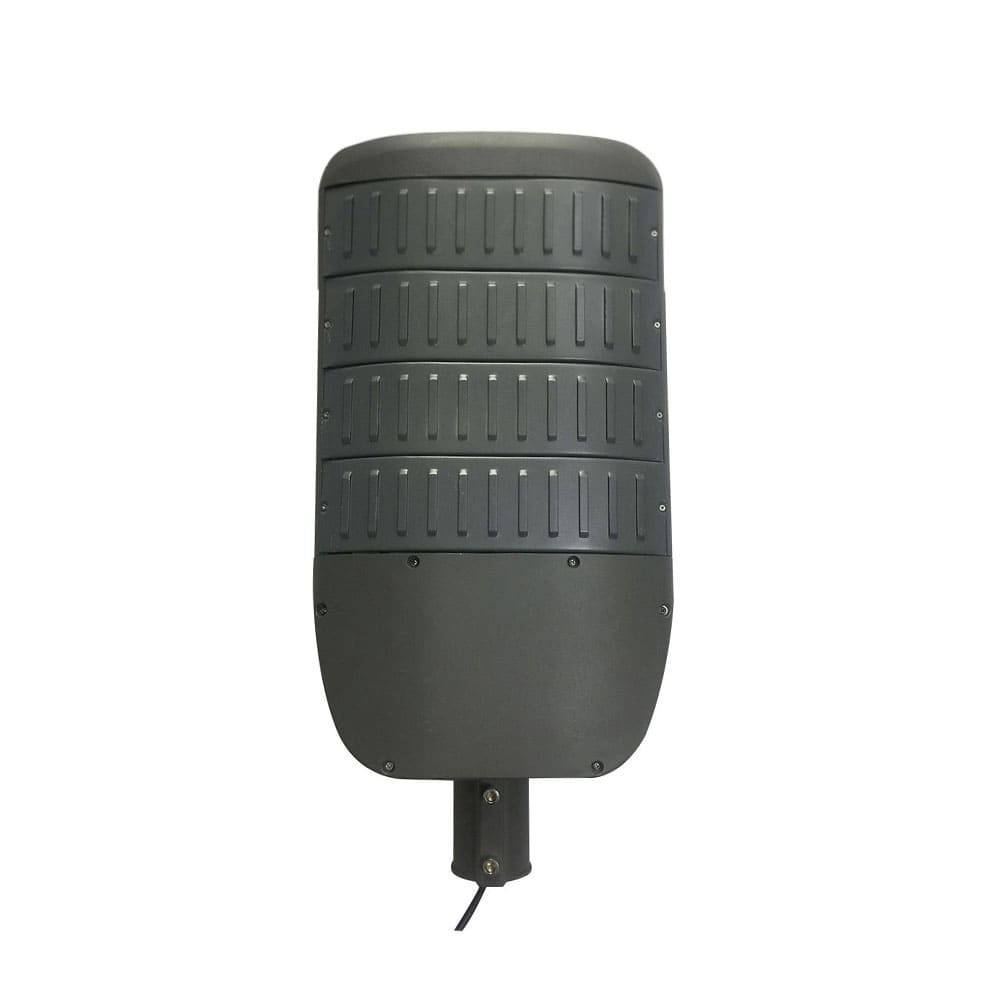

Housing material:Excellent Aluminum +Acylic lens
Work temperature:-50°C ~ +50°C
Lifespan:50000 hours
warranty:5 -8years

EMAIL

High brightness ENEC SAA CE CB led street light with daylight sensor

 Specifications

Model

PL-LD-058S

PL-LD-058S

PL-LD-058S

PL-LD-058S

PL-LD-058S

PL-LD-058S

Input Voltage

100-277/305 V AC

Power

50W

100W

150W

200W

250W

300W

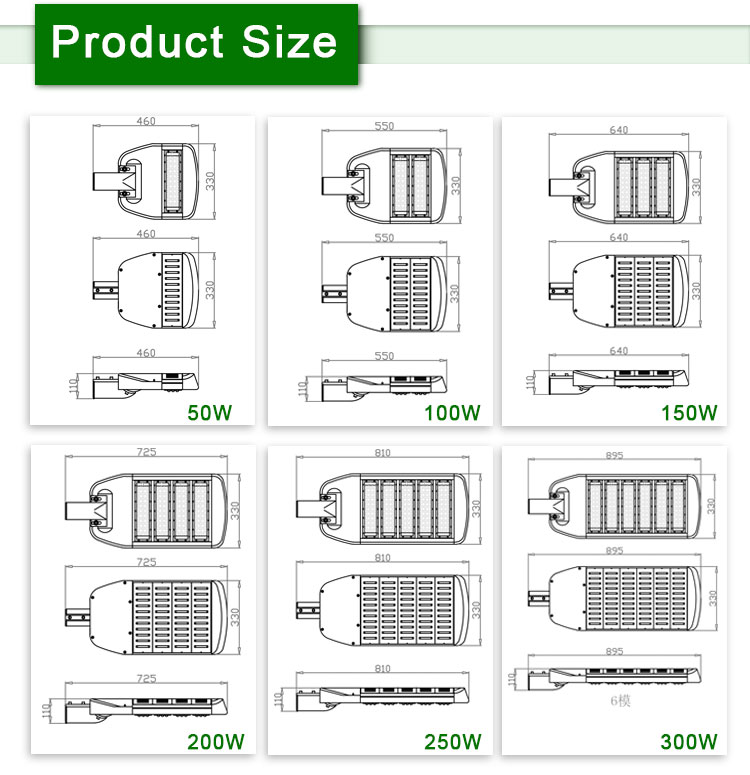

Size(mm)

410*360*90

500*360*90

590*360*90

680*282*75

760*282*75

850*282*75

Lumens

8500lm±5%

17000lm±5%

25500lm±5%

17000lm±5%

42500lm±5%

51000lm±5%

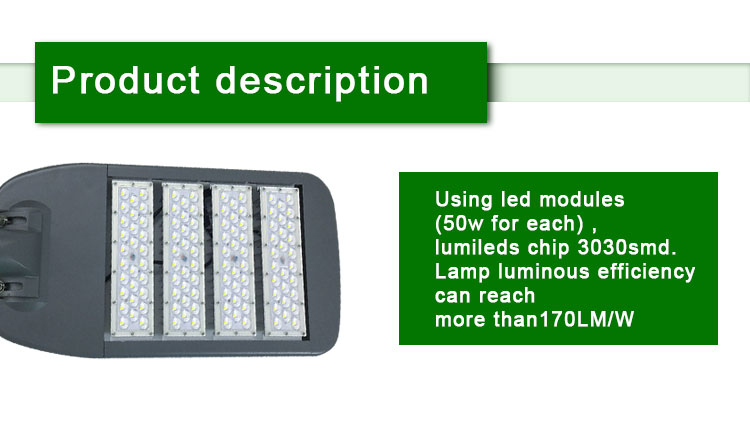

LED chip

Lumileds 5050SMD

CRI

Ra>70/80

Power Factor

>0.95

Light efficiency

170LM/W±5%

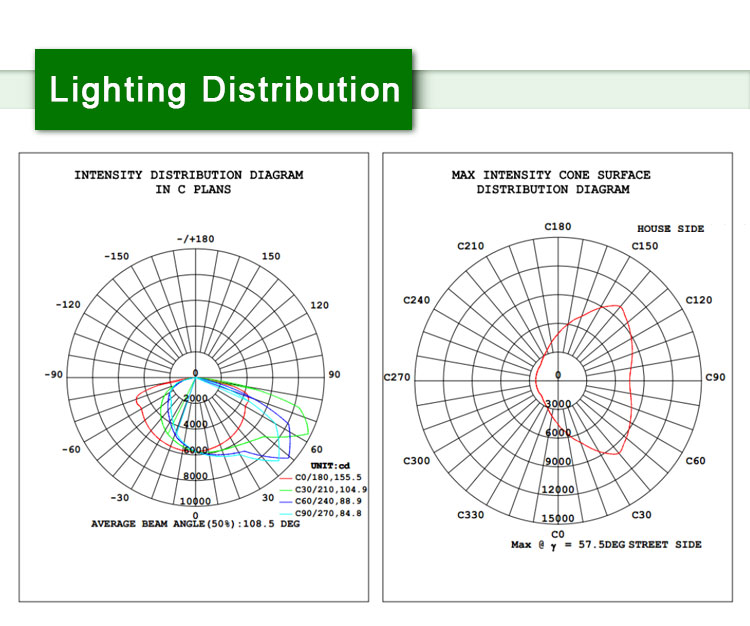

Beam angle

70*150°

LED driver brand

SOSEN, Meanwell driver  series

Surge protection

6KV/10KV/20KV as customers' rerquirement

Waterproof

IP66

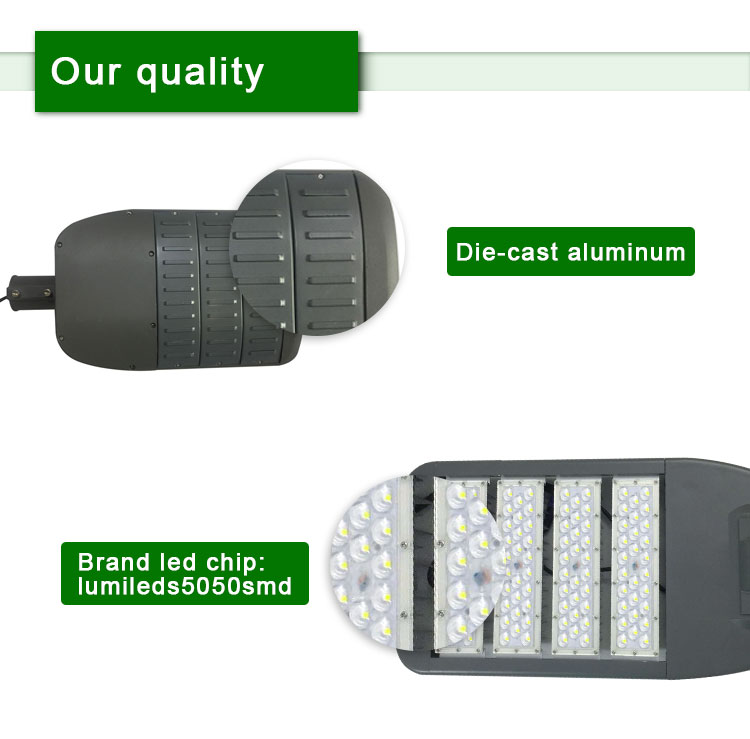

Housing material

Excellent Aluminum +Acylic lens

Work temperature

-50°C ~ +50°C

Lifespan

50000 hours

warranty

5 -8years



FAQ




Q: Whether the  LED lights really have 50,000 hours lifespan?

A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from

in lab,actual lifespan is only  <=50,000hours. Meanwhile it can also be 80,000 hours lifespan if it adopt very good material.



Q: For same power,why different suppliers with different brightness?

A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip

and same brightness version,the brightness will be slight difference.But please make clear the brightness difference

between LEDs and lamp fixture.



Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized

in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,

while a cooler (higher color temperature) light is used to enhance concentration in offices.



Q: What is CRI?

A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.



Q: What is PF and efficiency?

A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time
