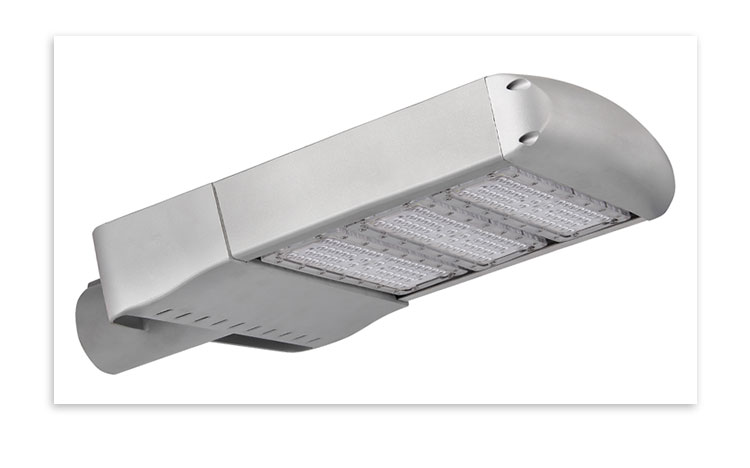

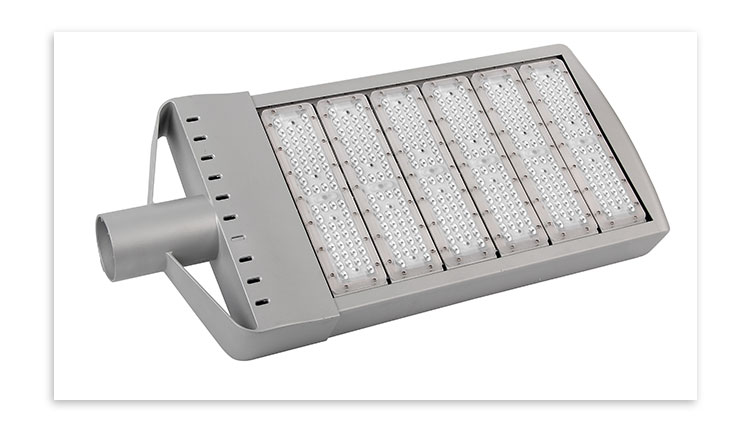

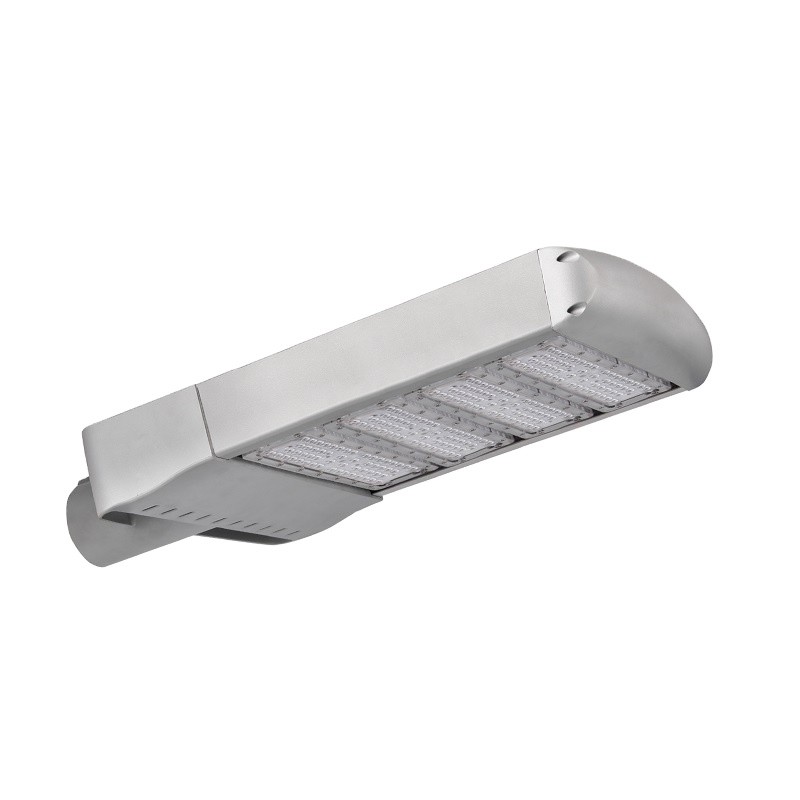

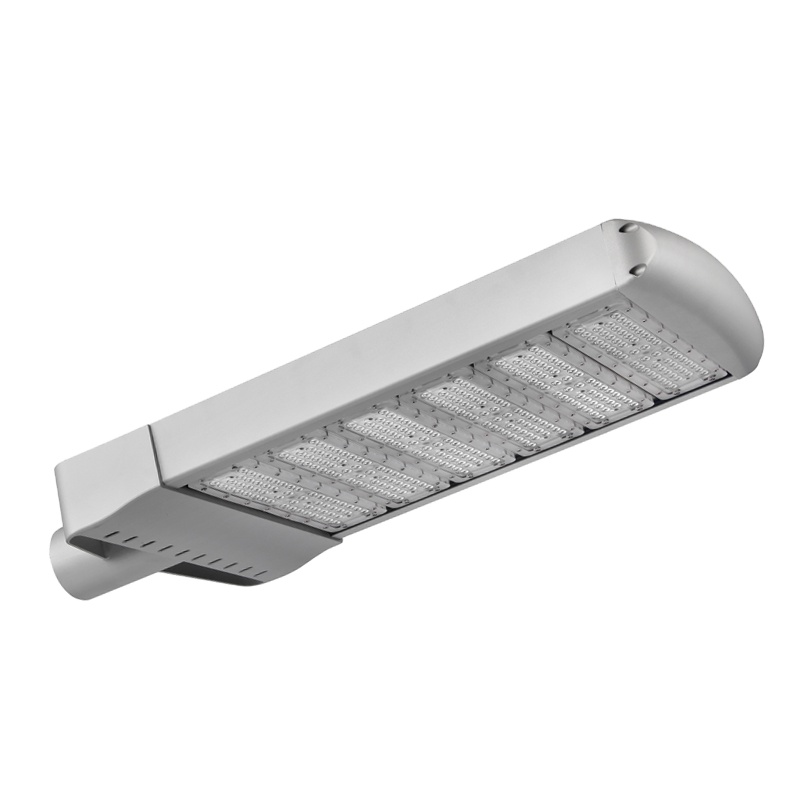

Led Street Light (PL-LD-057)

LED chip:Lumileds 3030SMD
CRI:Ra>70/80
Power Factor:>0.95
Light efficiency:140LM/W±5%
Beam angle:60*140°
Control:Photocell ,0-10V;dimming range;DALI
Surge protection:6KV/10KV/20KV as customers' rerquirement
Waterproof:IP66 IK08

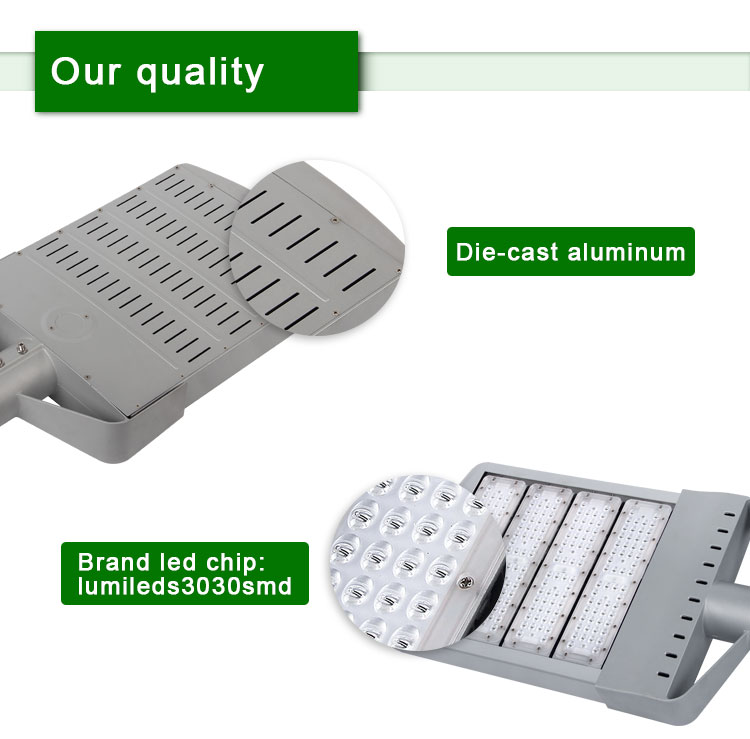

Housing material:Excellent Aluminum +Acylic lens
Work temperature:-50°C ~ +50°C
Lifespan:50000 hours
warranty:5 years


EMAIL

High Quality Parking Lot Area Pole Lighting Street Lamp Led street Light

 Specifications

Model

PL-LD-057

PL-LD-057

PL-LD-057

PL-LD-057

PL-LD-057

PL-LD-057

Input Voltage

100-277/305 V AC

Power

50W

100W

150W

200W

250W

300W

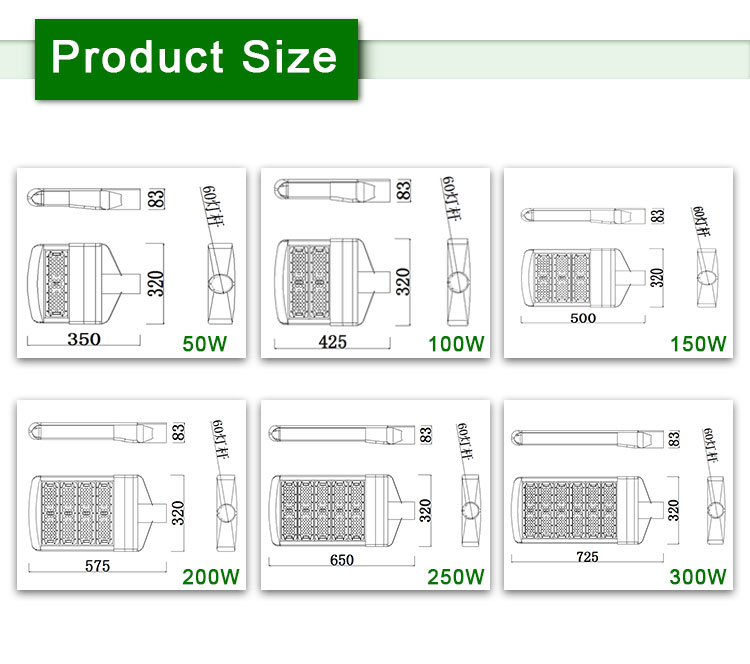

Size(mm)

350*320*83

425*320*83

500*320*83

575*320*83

650*320*83

725*320*83

Lumens

7000lm±5%

14000lm±5%

21000lm±5%

28000lm±5%

35000lm±5%

42000lm±5%

LED chip

Lumileds 3030SMD

CRI

Ra>70/80

Power Factor

>0.95

Light efficiency

140LM/W±5%

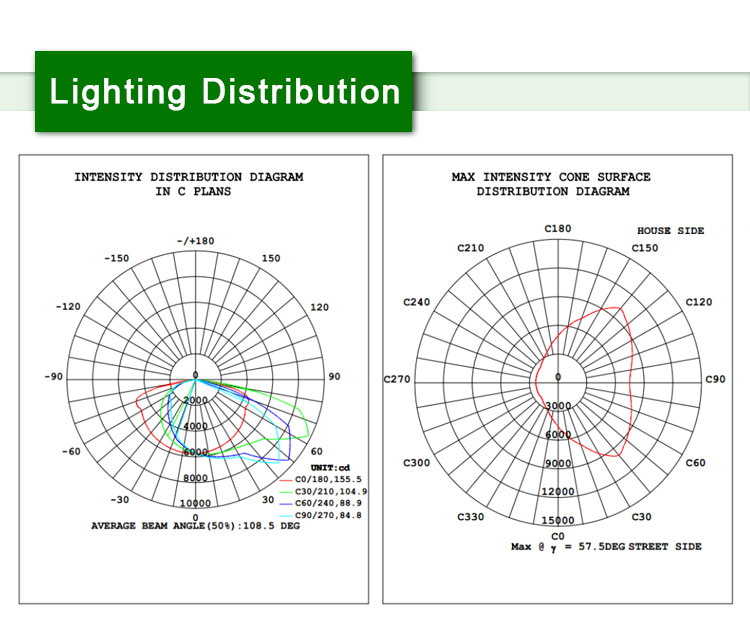

Beam angle

60*140°

Control

Photocell ,0-10V;dimming range;DALI

Surge protection

6KV/10KV/20KV as customers' rerquirement

Waterproof

IP66 IK08

Housing material

Excellent Aluminum +Acylic lens

Work temperature

-50°C ~ +50°C

Lifespan

50000 hours

warranty

5 years



FAQ




Q: Whether the  LED lights really have 50,000 hours lifespan?

A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from

in lab,actual lifespan is only  <=50,000hours. Meanwhile it can also be 80,000 hours lifespan if it adopt very good material.



Q: For same power,why different suppliers with different brightness?

A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip

and same brightness version,the brightness will be slight difference.But please make clear the brightness difference

between LEDs and lamp fixture.



Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized

in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,

while a cooler (higher color temperature) light is used to enhance concentration in offices.



Q: What is CRI?

A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.



Q: What is PF and efficiency?

A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time
