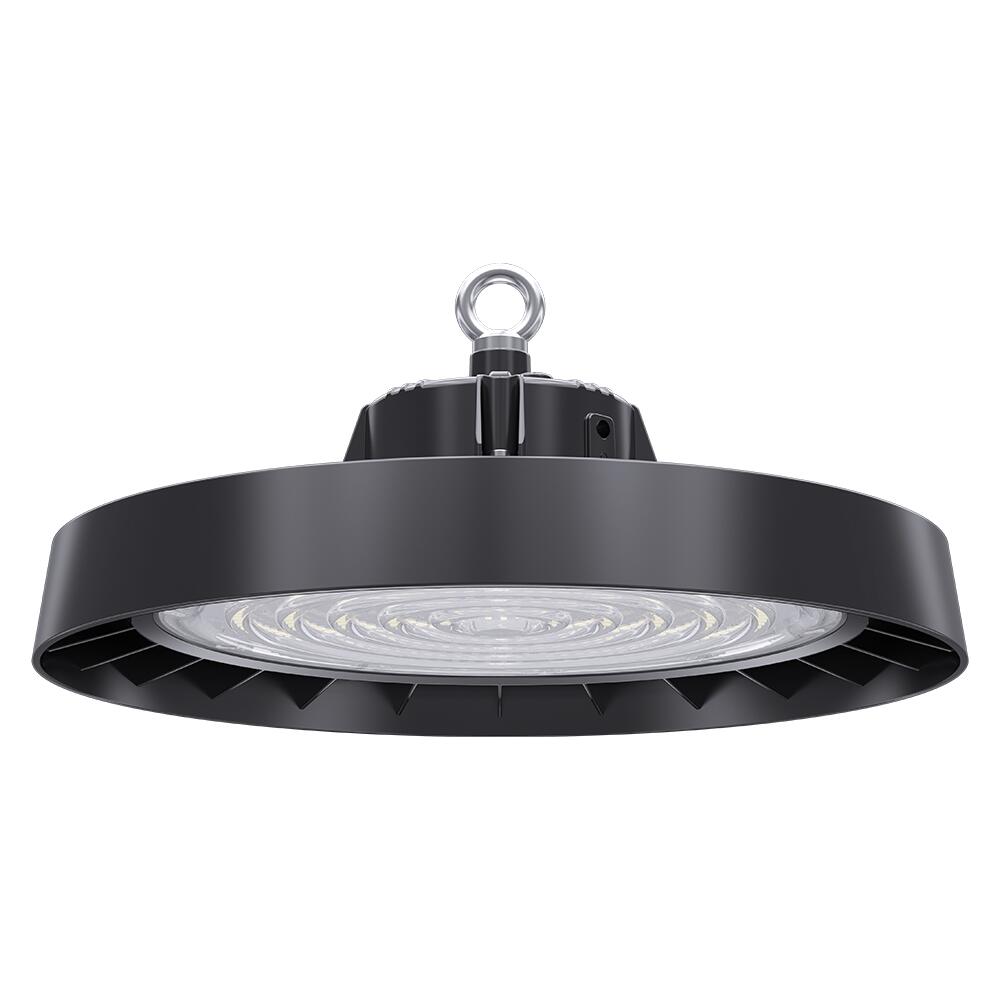

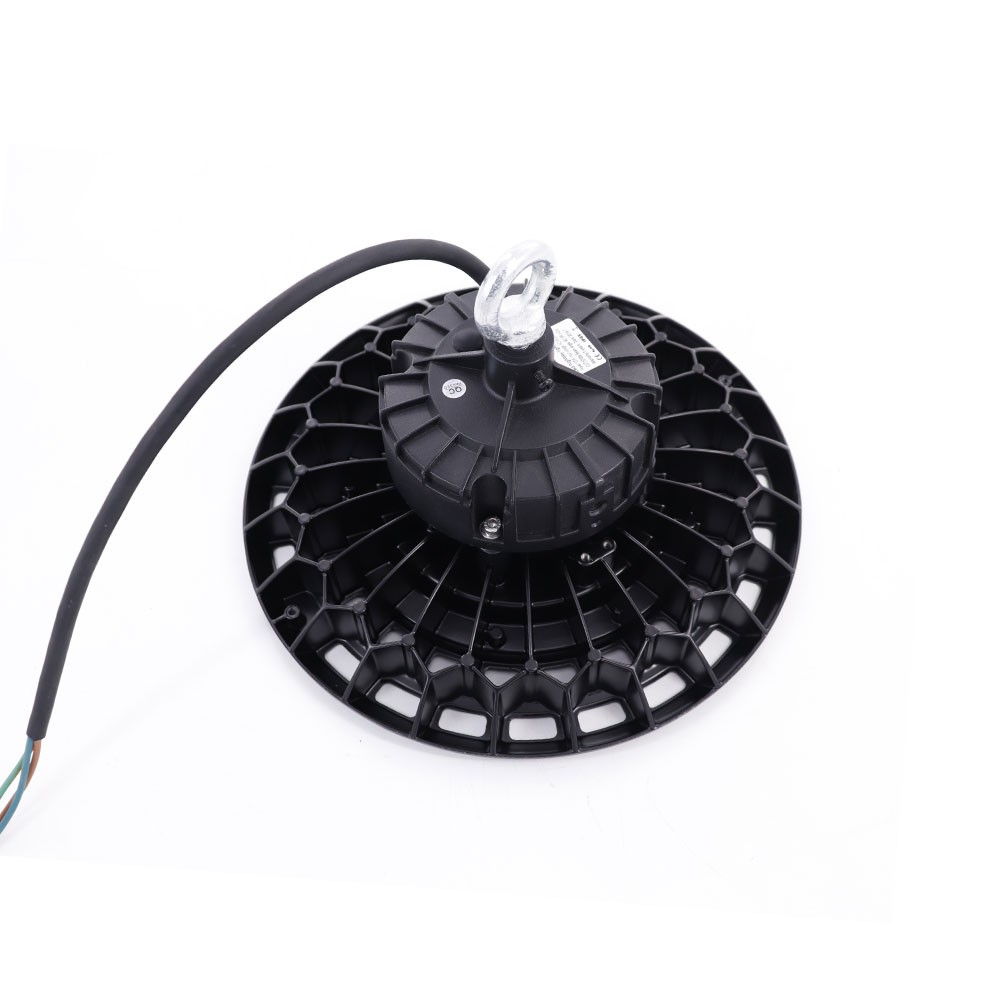

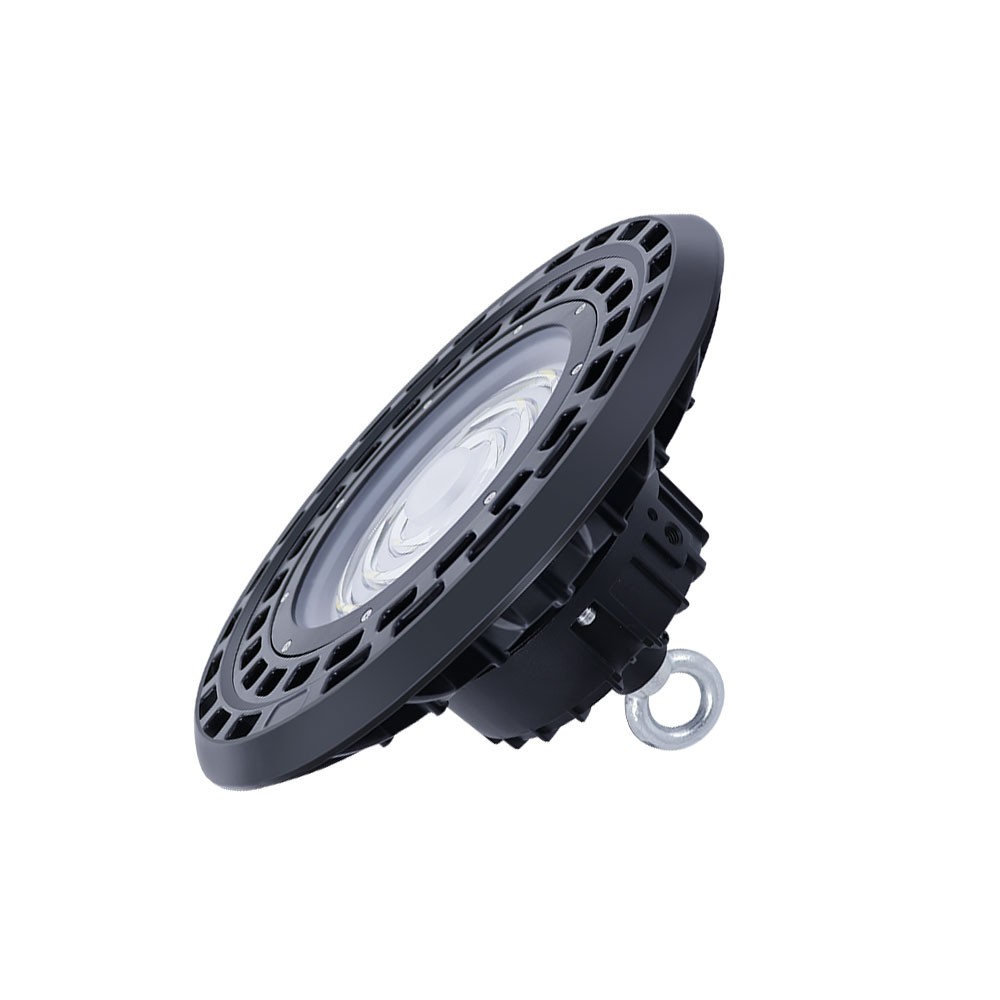

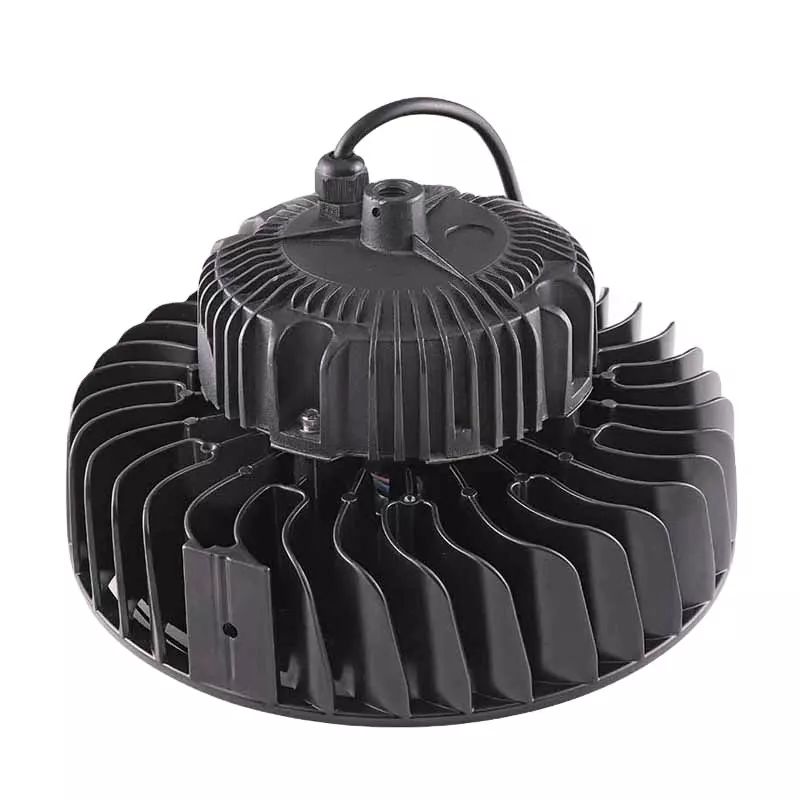

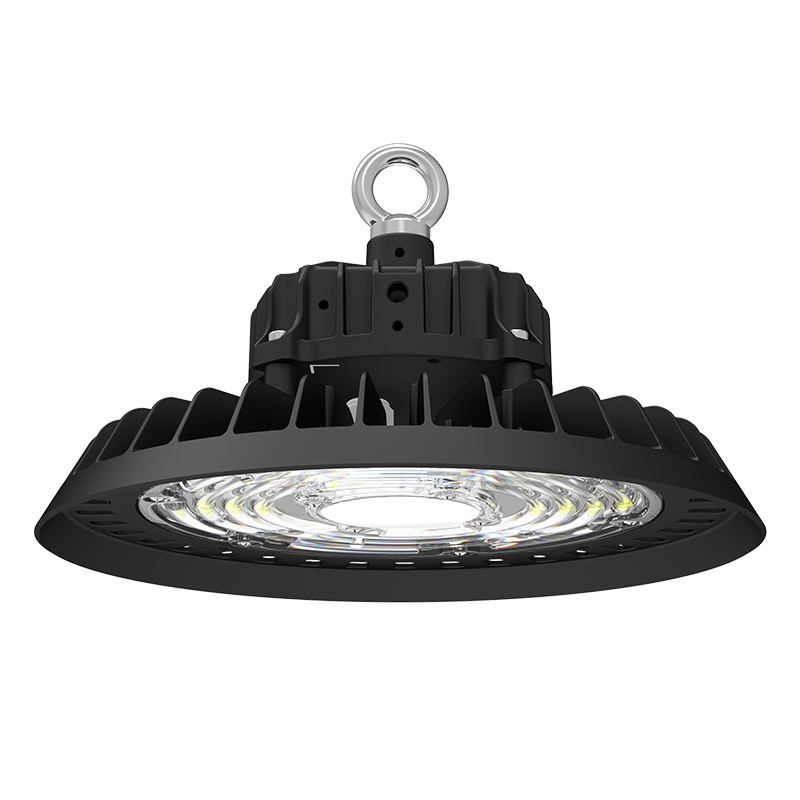

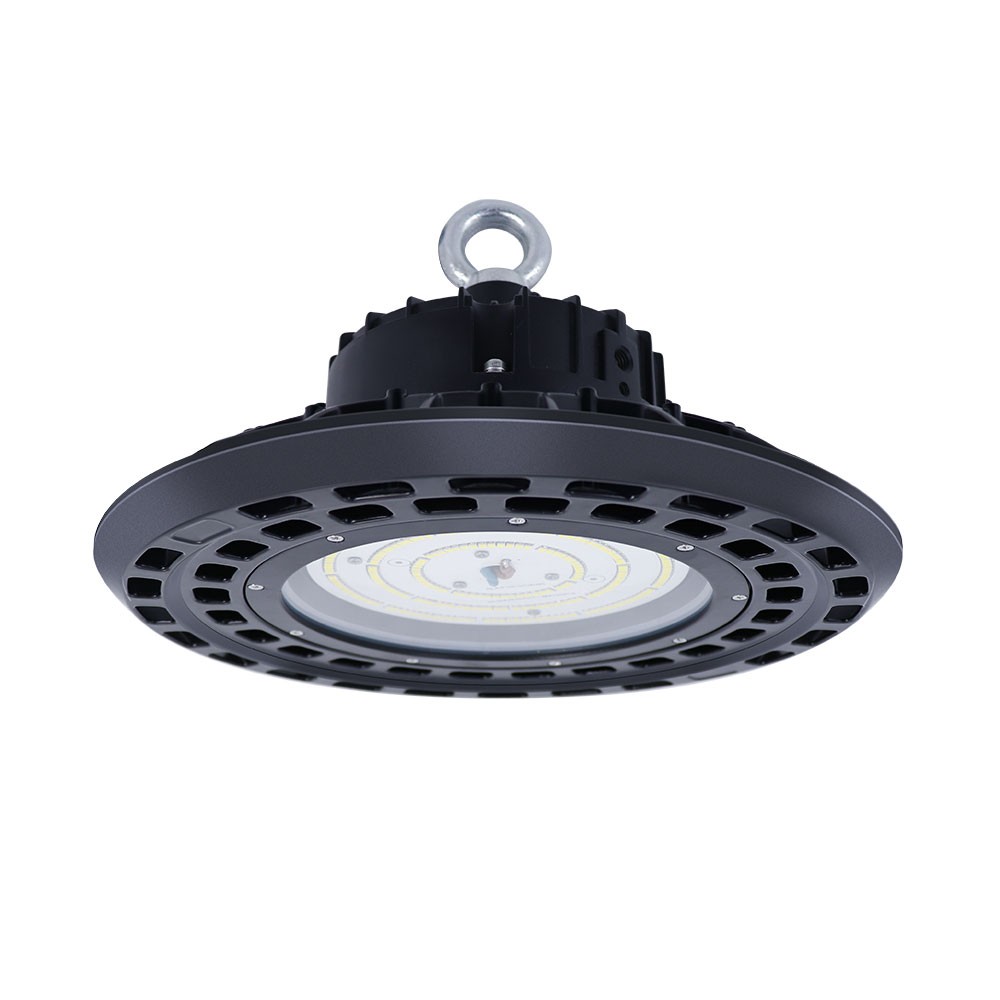

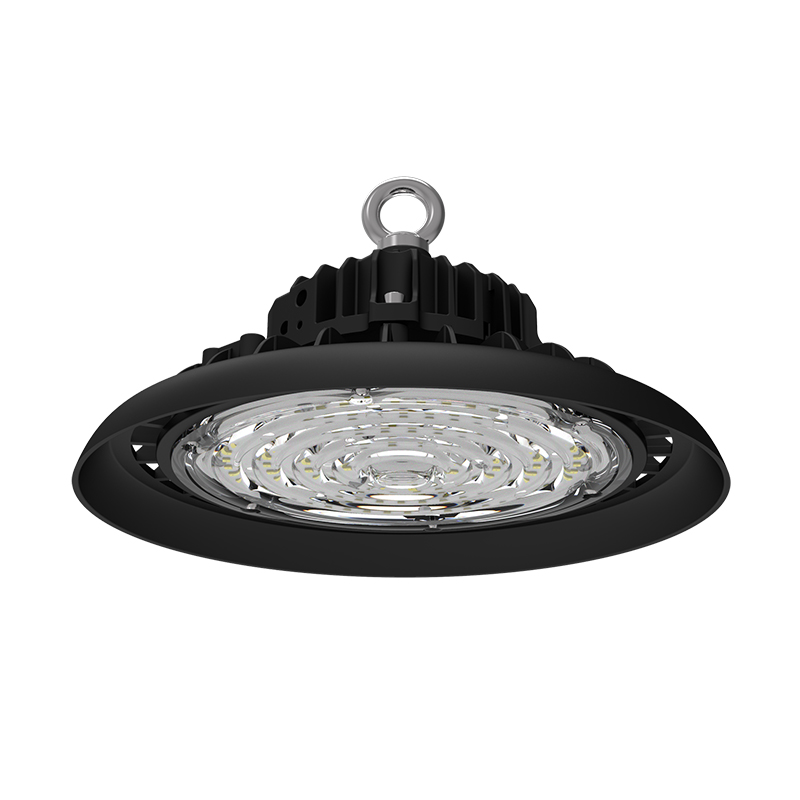

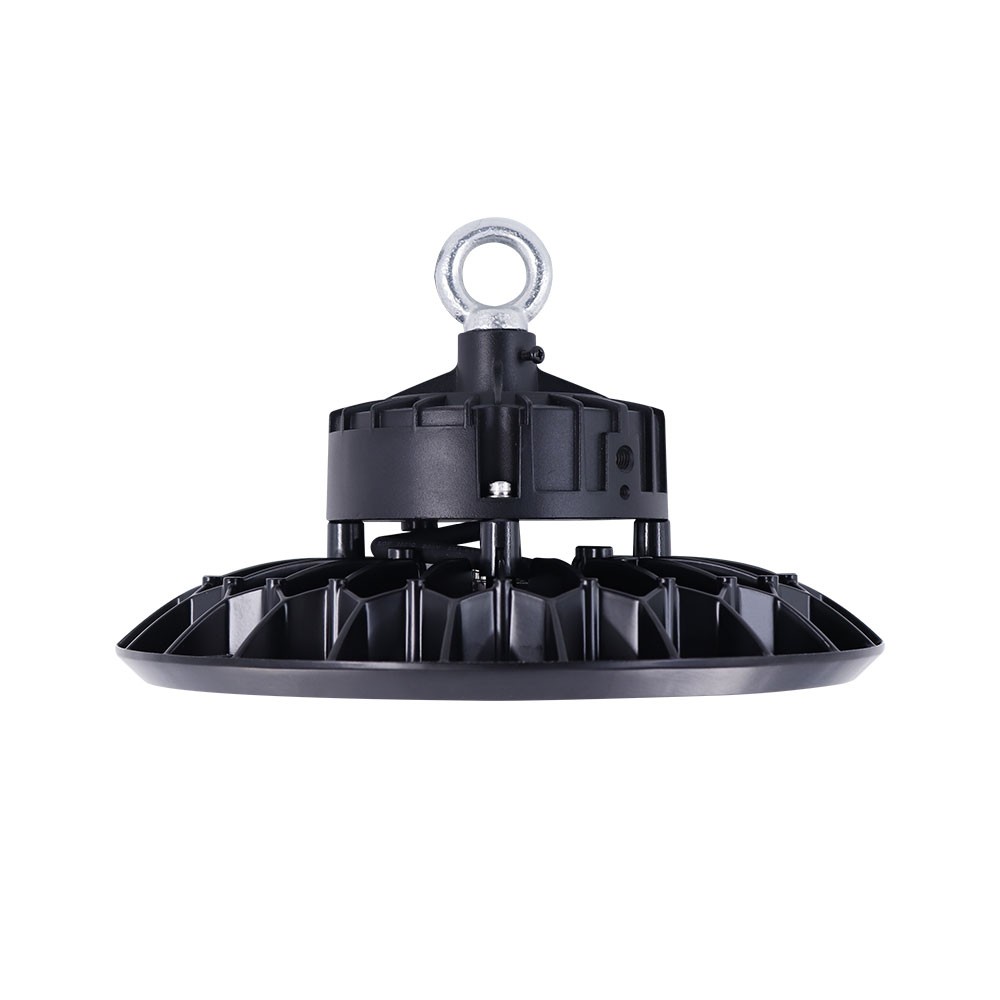

Led highbay light (PL-UFO-LL)

Luminous Flux:(150-180lm/w)±5%
LED Source:Lumileds/CREE
Inpuct Voltage:AC100~277V
Frequency Range:50~60Hz
Total Harmonic Distortion:<15%  (Typical : 8%)
Color Temperature:3000k ,4000K, 5000k, 5700K,6500k
Color Rendering Index:CRI>70/80
IP Rating:IP65

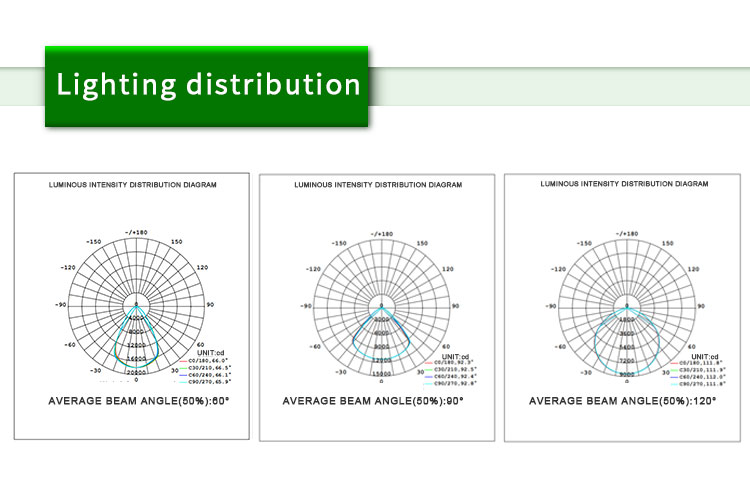

Beam Angle:60/90/110°
Optical Transmittance:>97% >97% >97%
Housing Color:Black/Gray/White
Working Life:>50,000 hours
Warranty:5 years
Working Environmment   -30ºC~+50ºC, 10%~90% RH
Body & Shade Material Die-casting Aluminum housing & TG glass& Acylic lens
Where Can Use  Warehouse; industrial production workshop; pavilion; stadium; the
train station; shopping malls; gas stations and other indoor lighting

EMAIL

European Popular LED UFO high bay lightled high bay warehouse lights, UFO lights led high bay

Specifications

ModelPL-UFO-LL-100WPL-UFO-LL-150WPL-UFO-LL-200W
Power100w150W200W
Luminous Flux180lm/w±5%

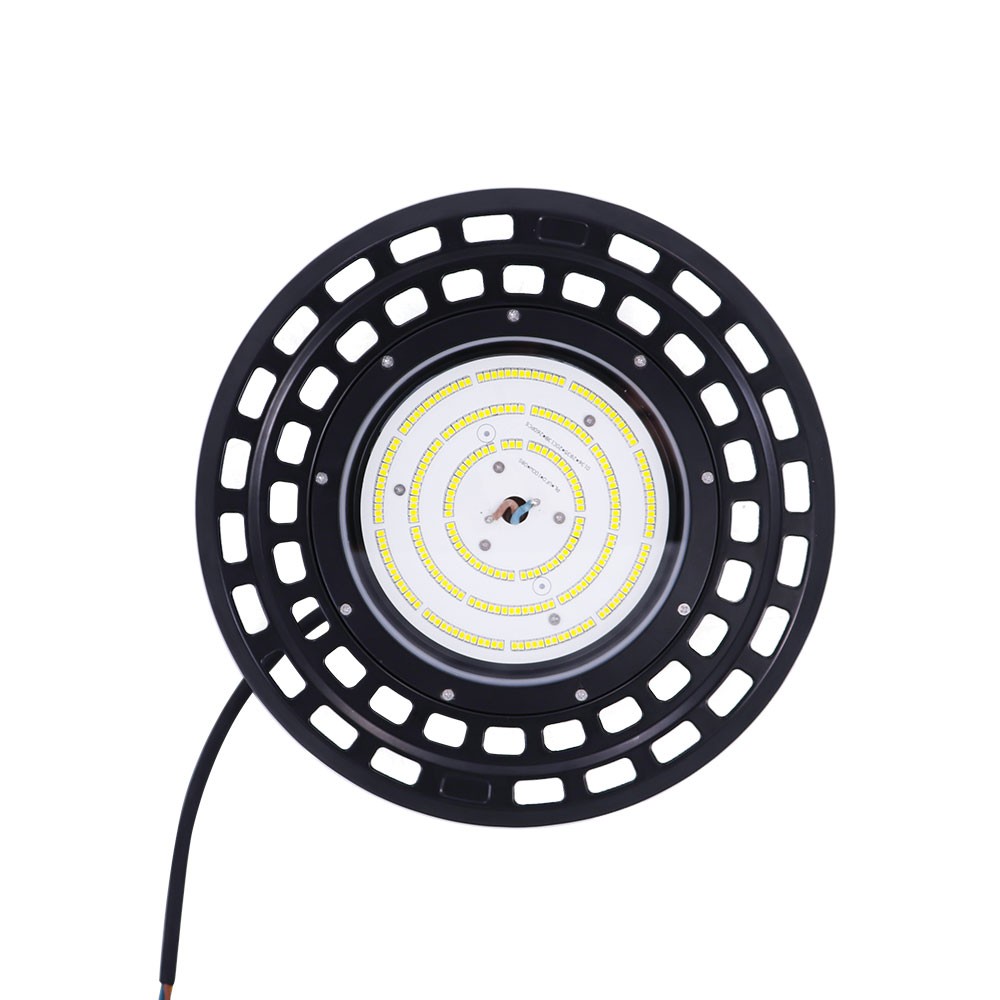

LED Sourcelumileds 2835smd
Inpuct VoltageAC90-305v
Frequency Range50~60Hz
Total Harmonic Distortion<15%  (Typical : 8%)
Color Temperature3000K, 4000K, 5000k, 5700K, 6500K
Color Rendering IndexCRI>70/80
IP RatingIP65
Beam Angle120°
Optical Transmittance>97%>97%>97%
Housing ColorBlack/Gray/White
Working Life>50,000 hours
Certificate CE ROHS SAA CB LM80 LM79 TM-21
Warranty5 years
Working Environmment-30ºC~+50ºC, 10%~90% RH

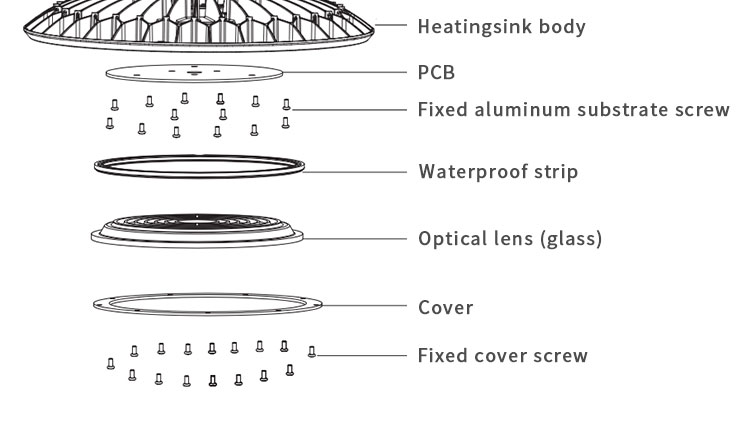

Body & Shade MaterialDie-cast aluminum+toughed glass+Lens

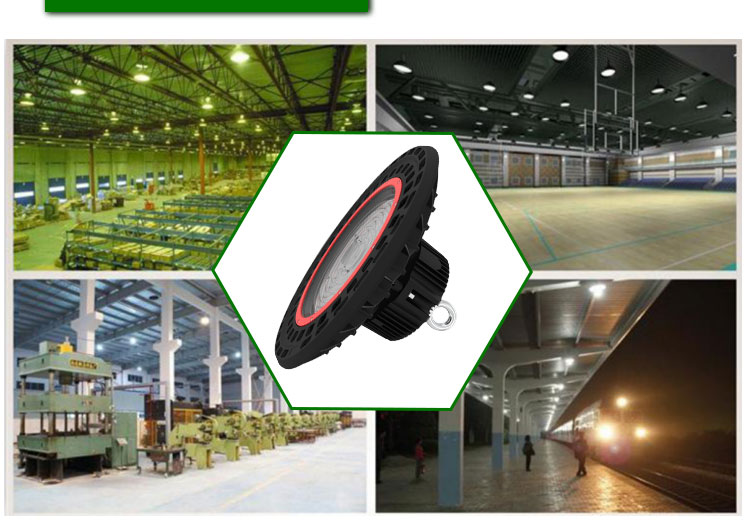

Where Can Use Warehouse; industrial production workshop; pavilion; stadium; the
train station; shopping malls; gas stations and other indoor lighting

FAQ




Q: Whether the  LED lights really have 50,000 hours lifespan?

A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from

in lab,actual lifespan is only  <=50,000hours. Meanwhile it can also be 80,000 hours lifespan if it adopt very good material.



Q: For same power,why different suppliers with different brightness?

A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip

and same brightness version,the brightness will be slight difference.But please make clear the brightness difference

between LEDs and lamp fixture.



Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized

in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,

while a cooler (higher color temperature) light is used to enhance concentration in offices.



Q: What is CRI?

A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.



Q: What is PF and efficiency?

A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time
