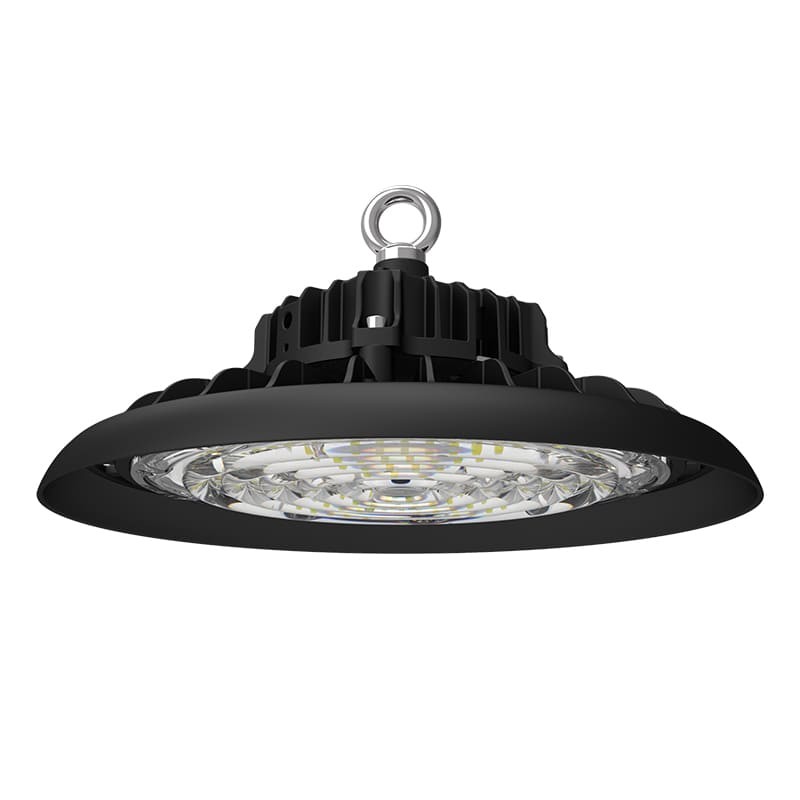

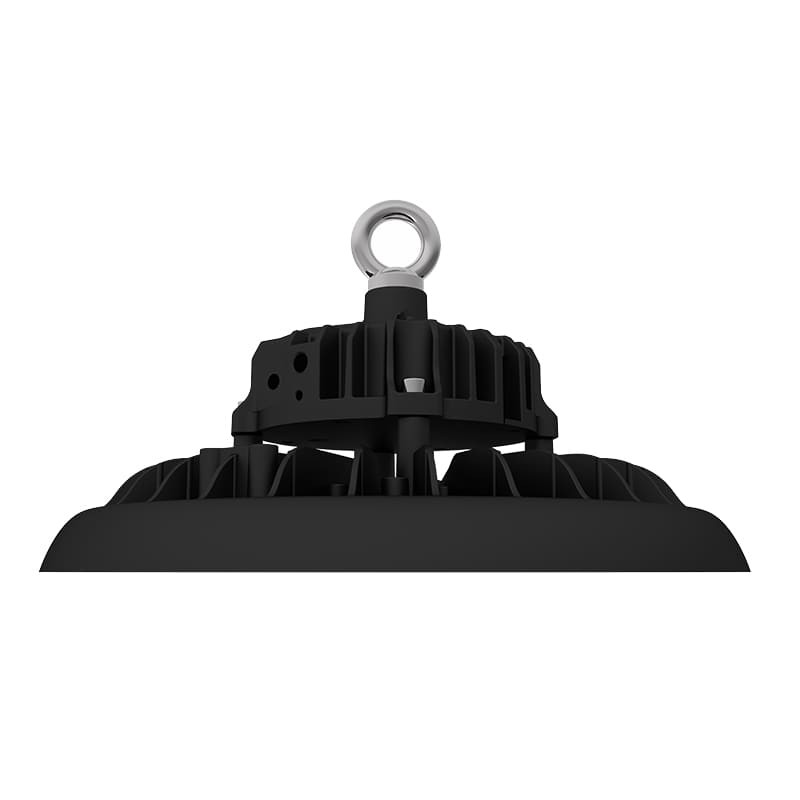

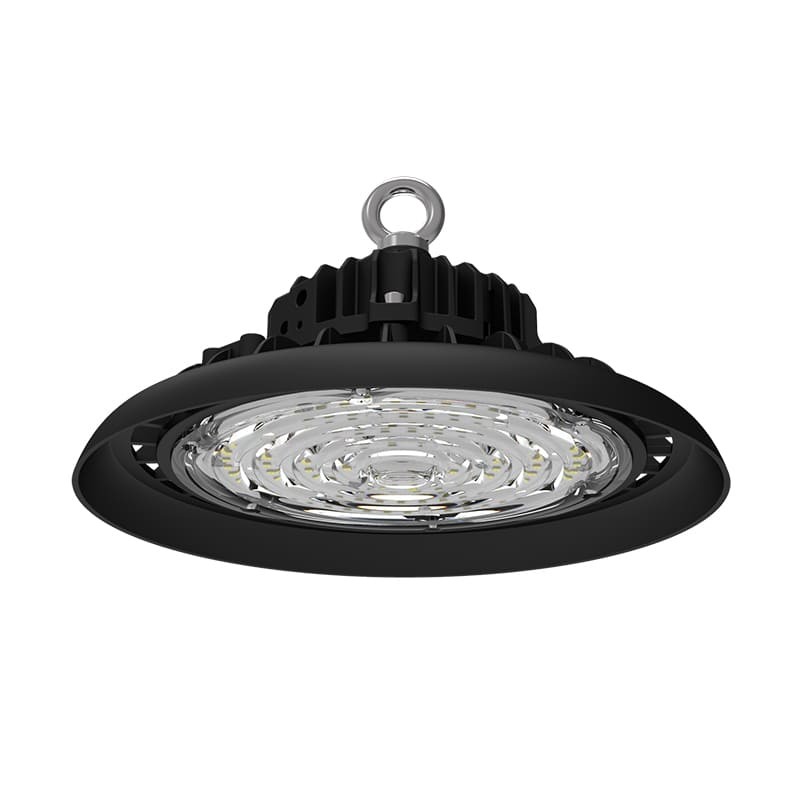

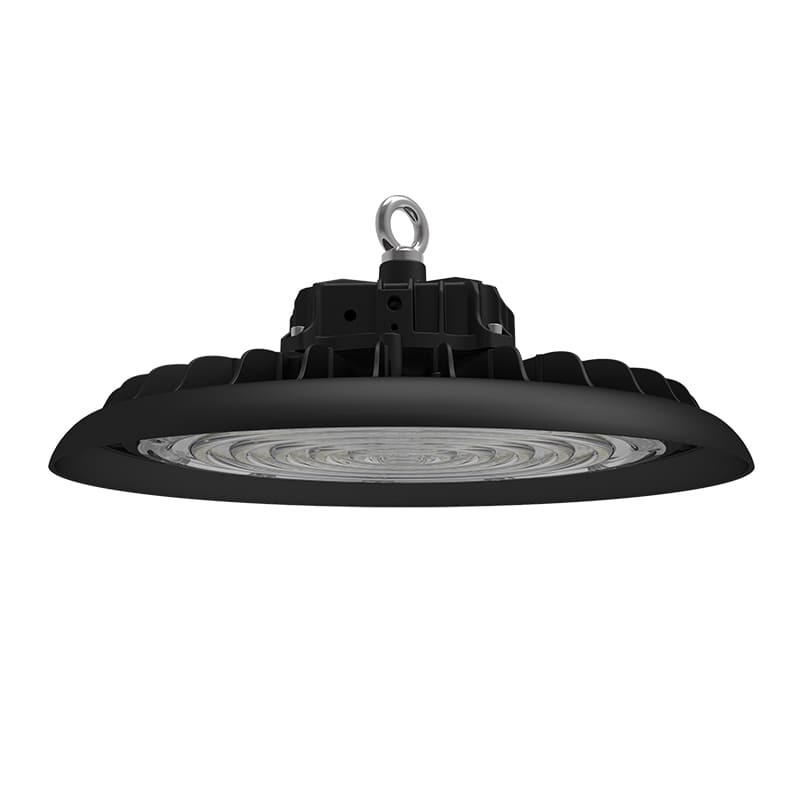

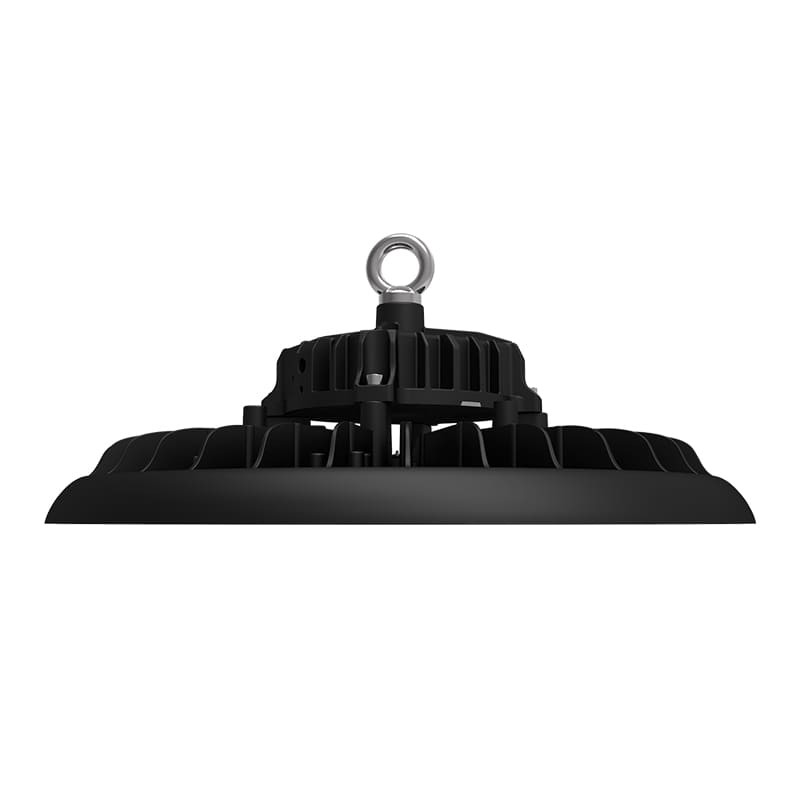

Led highbay light (PL-UFO-025)

Input Voltage:AC100~277V
Frequency Range:50~60Hz
Total Harmonic Distortion:<20%  (Typical : 10%)
Color Temperature:2700-6500K
Color Rendering Index:CRI>70
IP&IK Rating:IP65&IK08
Beam Angle:60°/90°/120°
Optical Transmittance:>97%
Housing Color:Black
Working Life:>50,000 hours

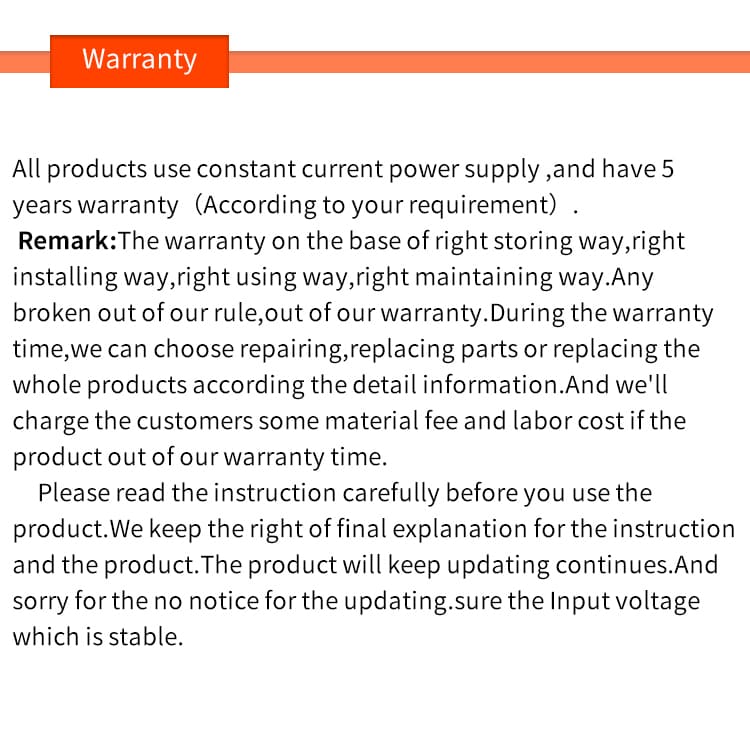

Warranty:5 years
Working Environment:-30ºC~+50ºC, 10%~90% RH
Control:0-10V Dimmable

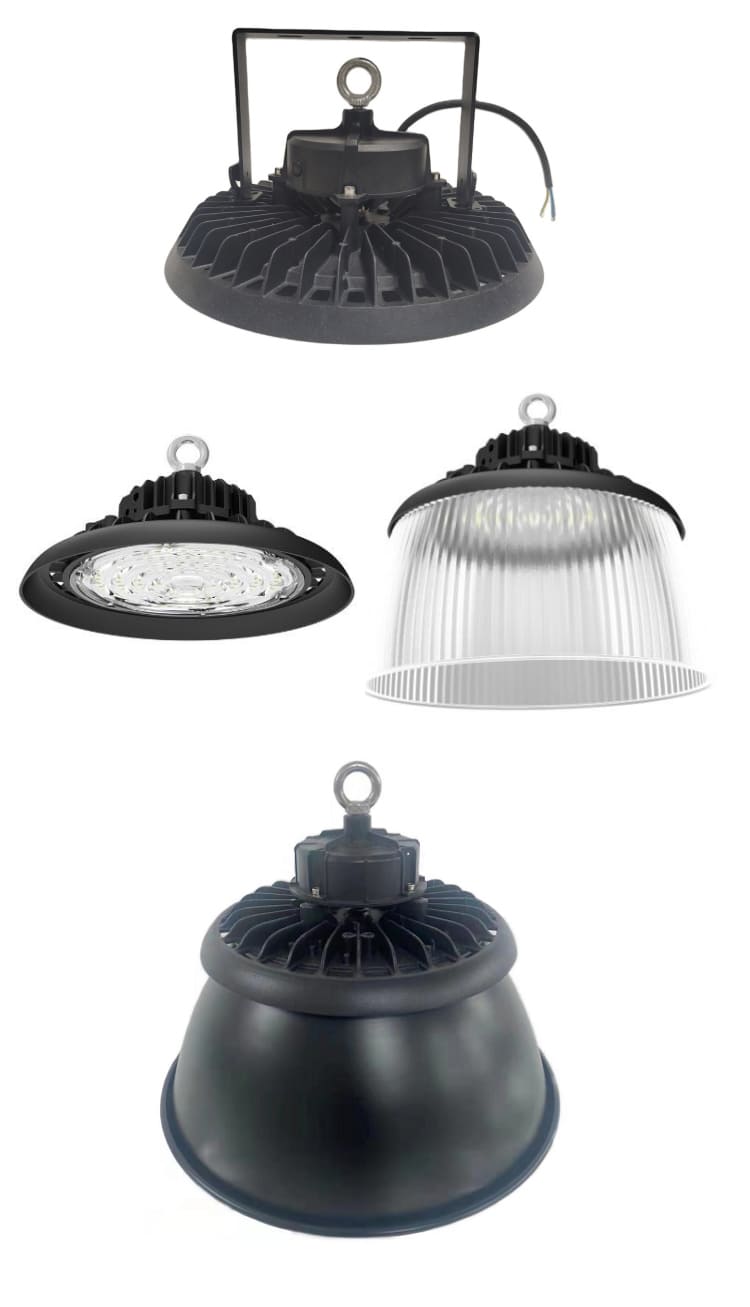

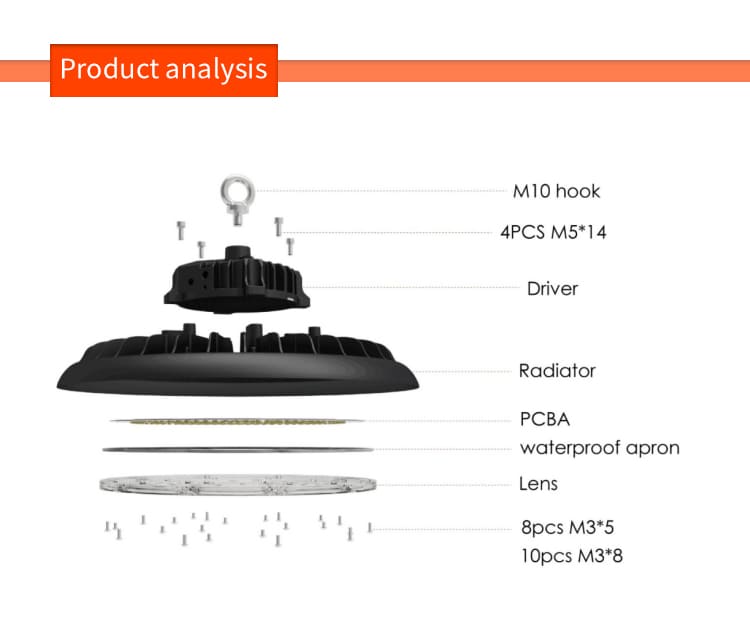

Body & Shade Material:Die-casting Aluminum housing & Annular lens

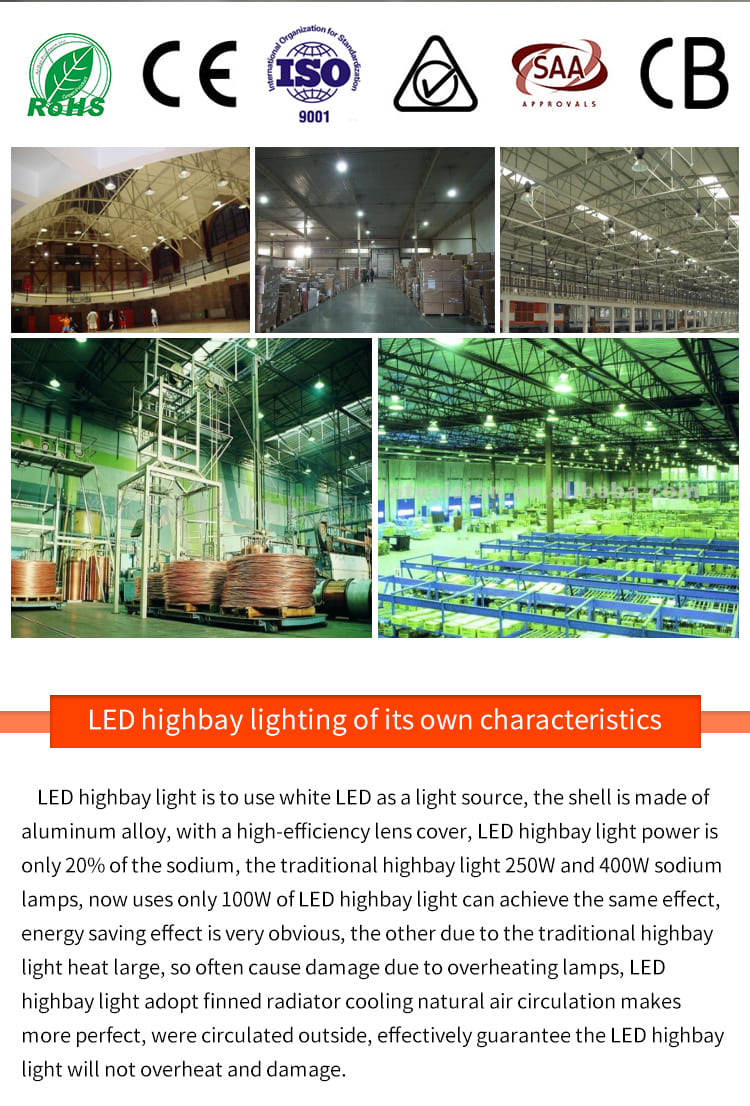

Where Can Use:Warehouse; industrial production workshop; pavilion; stadium; the train station; shopping malls; gas stations and other indoor lighting

EMAIL

Latest 100W High Quality TUV SAA CE CB IP66 IK08 Led High Bay Light

Specification datasheet

Model

PL-UFO-025-100W

PL-UFO-025-150W

PL-UFO-025-200W

Power

100W

150W

200W

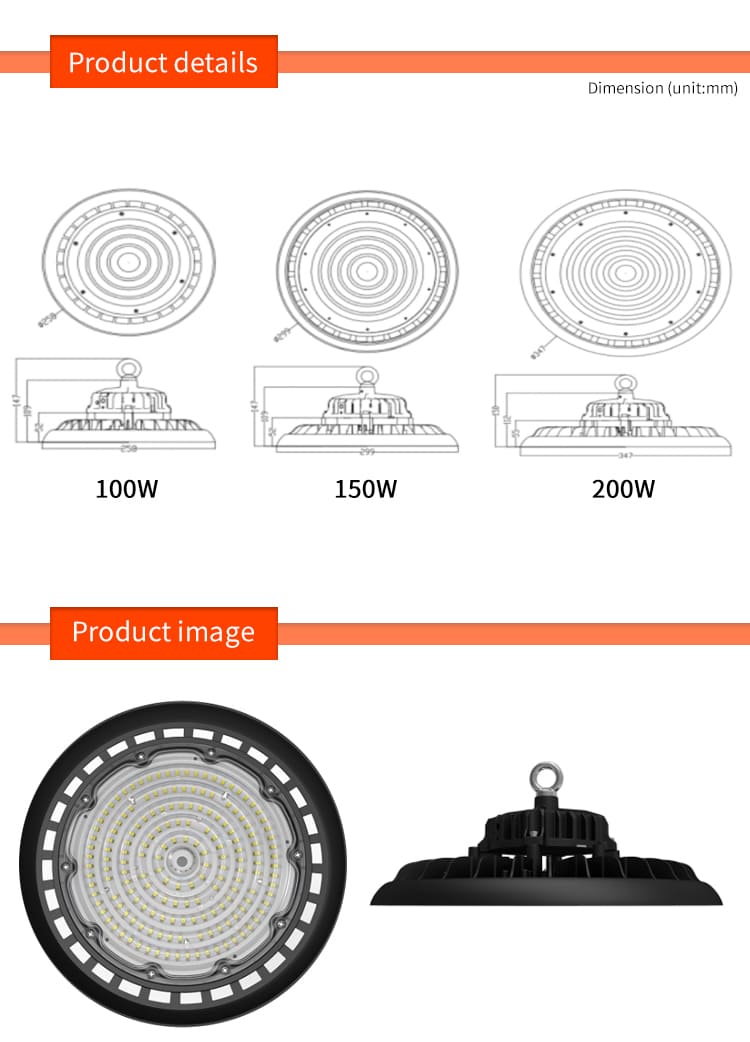

Dimension

Φ258X147mm

Φ299X147mm

Φ347X150mm

Luminous Flux

170lm/w±5%

LED Source

160PCS Lumileds 2835

240PCS Lumileds 2835

320PCS Lumileds 2835

Input Voltage

AC100~277V

Frequency Range

50~60Hz

Total Harmonic Distortion

<20%  (Typical : 10%)

Color Temperature

2700-6500K

Color Rendering Index

CRI>70

IP&IK  Rating

IP65&IK08

Beam Angle

60°/90°/120°

Optical Transmittance

>97%

Housing Color

Black

Working Life

>50,000 hours

Warranty

5 years

Working Environment

-30ºC~+50ºC, 10%~90% RH

Control

0-10V Dimmable

Body & Shade Material

Die-casting Aluminum housing Annular lens

Where Can Use

Warehouse; industrial production workshop; pavilion; stadium; the train station; shopping malls; gas stations and other indoor lighting

FAQ



Q: Whether the  LED lights really have 50,000 hours lifespan?

A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from

in lab,actual lifespan is only  <=50,000hours. Meanwhile it can also be 80,000 hours lifespan if it adopt very good material.



Q: For same power,why different suppliers with different brightness?

A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip

and same brightness version,the brightness will be slight difference.But please make clear the brightness difference

between LEDs and lamp fixture.



Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized

in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,

while a cooler (higher color temperature) light is used to enhance concentration in offices.



Q: What is CRI?

A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.



Q: What is PF and efficiency?

A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time
