Led garden light (PL-GL-015)

Input Votage:AC90V-305V
Material: die-cast aluminium + lens IP grade:IP66 Led chip:Lumileds 5050smd Working temperature:-40-50°C
Beam angle: T1 T2 T3
luminous efficiency:110LM/W±5% PF:> 0.95
CRI: Ra>70/80
CCT:2700-6500K
Life:50000H

EMAIL

2021 New IP66 LED Post Top Light Outdoor Landscape Area High Pole LED Garden Lighting Park Lamp Outdoor Lights Garden

PL-GL015  series led garden light is a state-of-the-art luminaries that includes the latest advances of led technology, complemented by a simply, yet elegant ergonomic design. Perfect for installing on 3-8m poles both wide and narrow bicycle paths, parking lots, parks, highways, etc.More information, please contact our sales directly.More information, please contact our sales directly


Light Data-Sheet
Model NoPL-GL-015
SizeD400*490mm
Holder76mm
Watts30W55W
Luminous120lm/W
LED Qty16PCS Lumileds 505024PCS Lumileds 5050
MaterialAluminum, PC Cover
Kelvin3000K, 4000K, 5000K, 6000K or Specified Color
CRI90Ra, 80Ra, 70Ra (Note: normal are 70Ra)
Lens AngleT1/T2/T3
Driver optionInventronics, Meanwell or Specified brand (Note: normal are  Inventronics driver)
Input Voltage90-305Vac; 50/60Hz; PF>0.95
Lifetime>50, 000hours
IP LevelIP65
CertificateENEC, CB, SAA, CE, RoHS, IP65, IK09 etc.
Package415*415*530mm
N.W4.00KG
G.W5.00KG

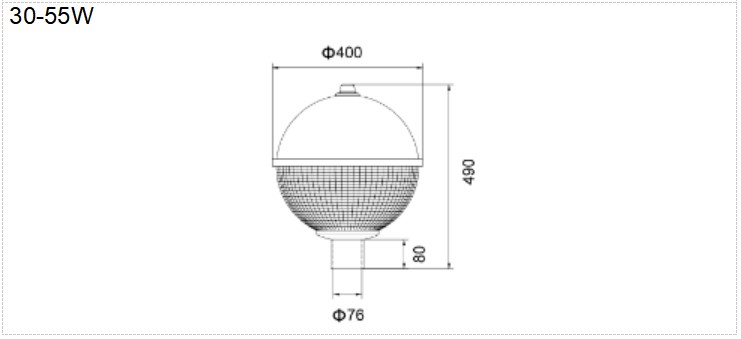

GL015 SIZE.JPG

GL-015 (1).jpg

FAQ

Q: Whether the  LED lights really have 50,000 hours lifespan?

A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from

in lab,actual lifespan is only  <=50,000hours. Meanwhile it can also be 80,000 hours lifespan if it adopt very good material.



Q: For same power,why different suppliers with different brightness?

A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip

and same brightness version,the brightness will be slight difference.But please make clear the brightness difference

between LEDs and lamp fixture.



Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized

in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,

while a cooler (higher color temperature) light is used to enhance concentration in offices.



Q: What is CRI?

A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.



Q: What is PF and efficiency?

A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time
