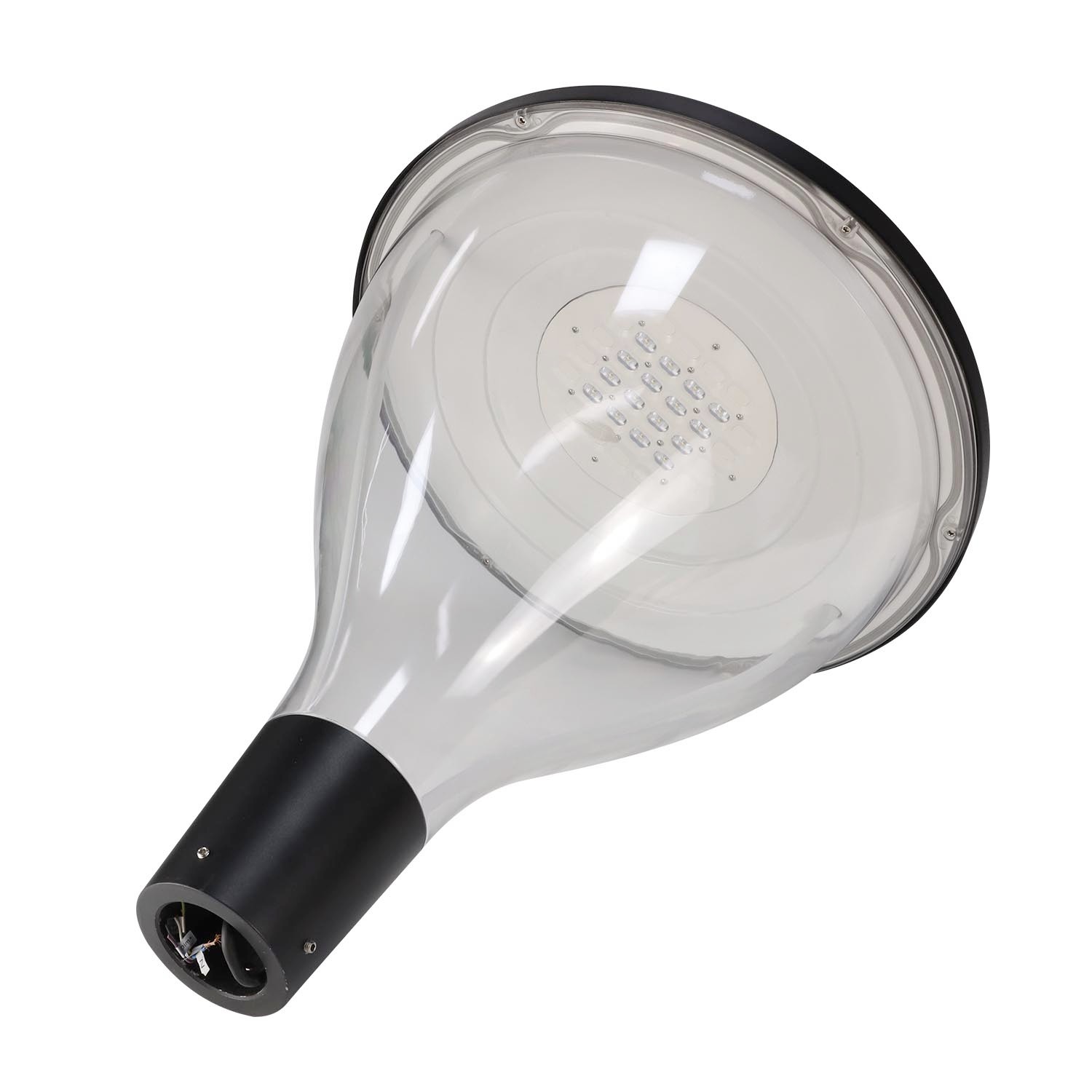

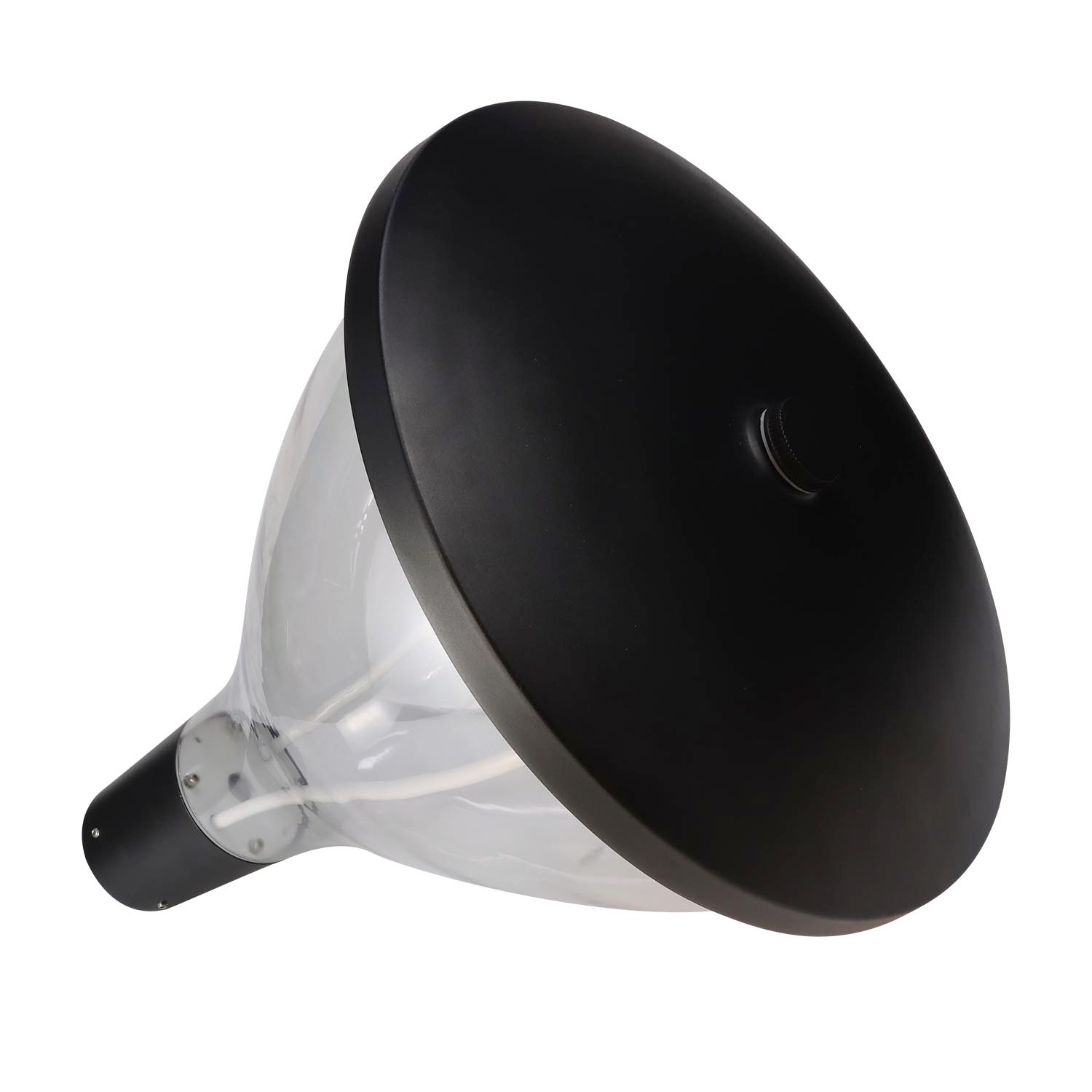

Led garden light (PL-GL-008)

Input Votage:AC90V-305V
Material: die-cast aluminium + toughed glass
IP grade:IP66 Led chip:CREE
Working temperature:-40-50°C
Beam angle: T1 T2 T3
luminous efficiency:100LM/W±5% PF:> 0.95
CRI: Ra>70/80
CCT:2700-6500K
Life:50000H

EMAIL

Peonylighting Modern IP65 Aluminum Outdoor Grey LED Post Top Light Waterproof LED Gar

PL-GL-008 海报 (1).jpg

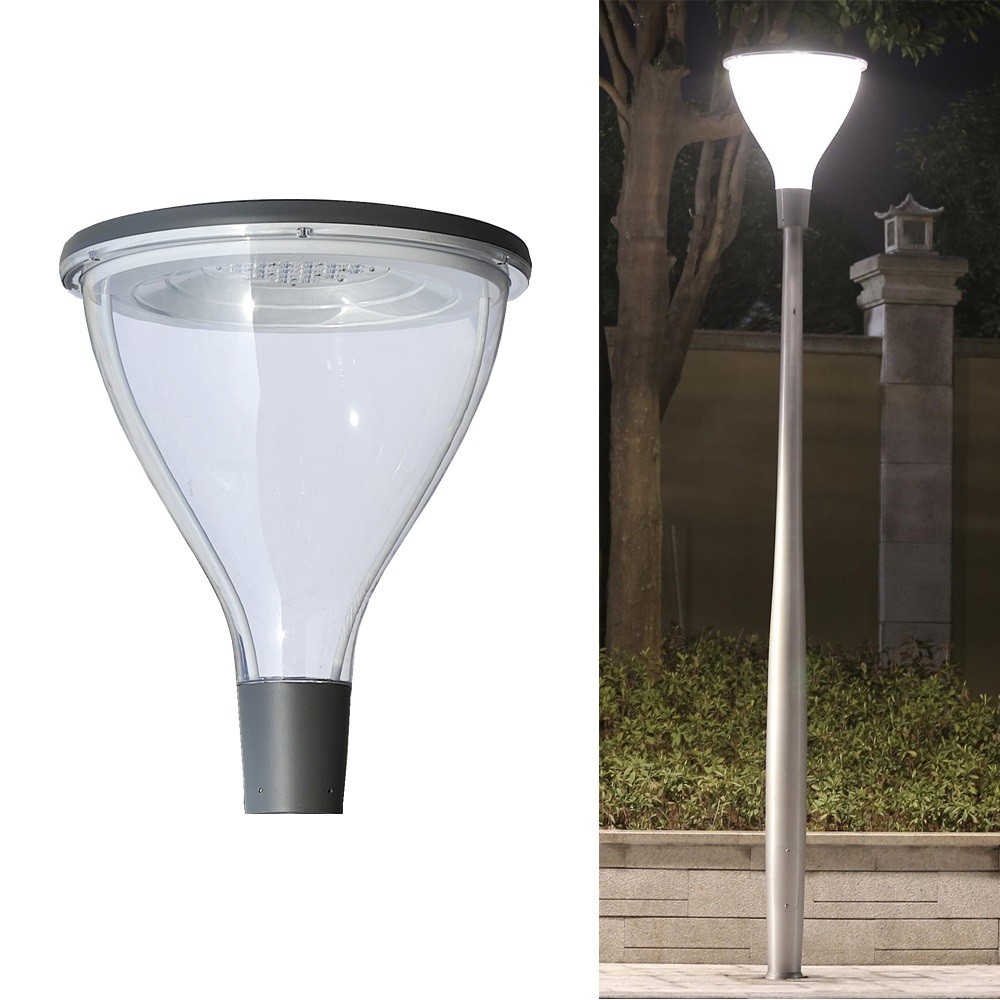

PL-GL008 series led garden light is a state-of-the-art luminaries that includes the latest advances of led technology, complemented by a simply,

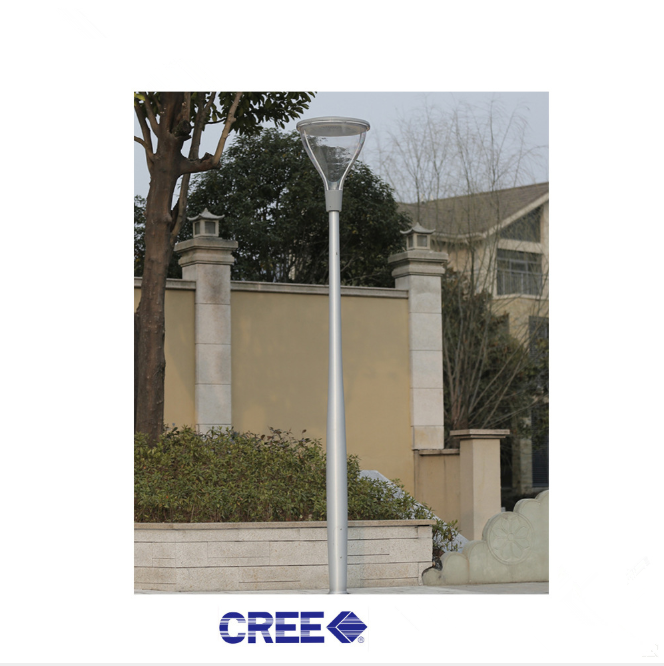

 yet elegant ergonomic design. Perfect for installing on 3-8m poles both wide and narrow bicycle paths, parking lots, parks, highways, etc.
LED
CREE
PL-GL008

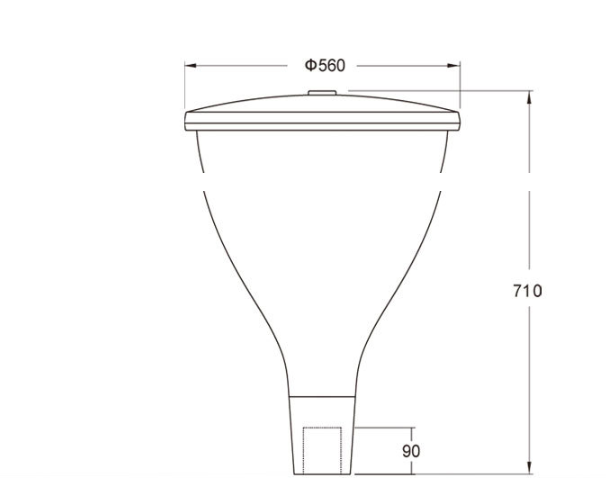

D560*H710mm
35W-60W

Light Data-Sheet
Model NoPL-GL008
SizeD480*525mm
Holder60mm or 76mm
Watts35W 45W 55W60W
Luminous100lm/W100lm/W100lm/W100lm/W

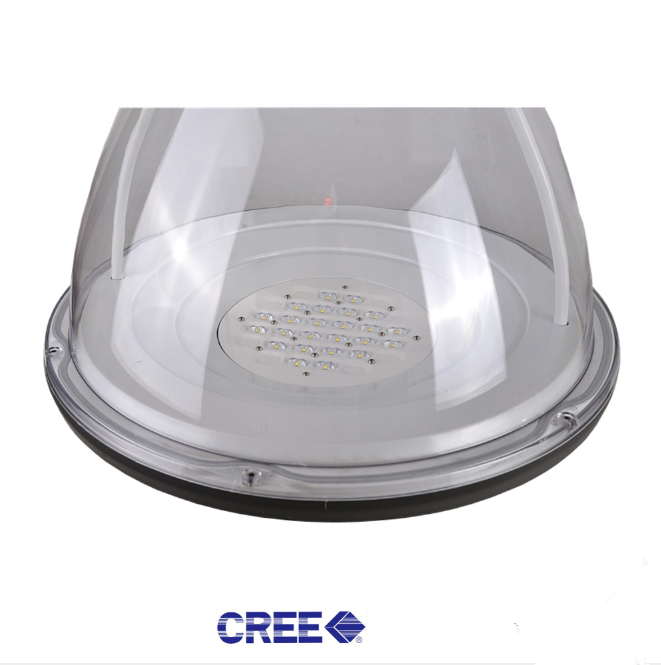

LED Qty16pcs CREE XTE20pcs CREE XTE24pcs CREE XTE28pcs CREE XTE

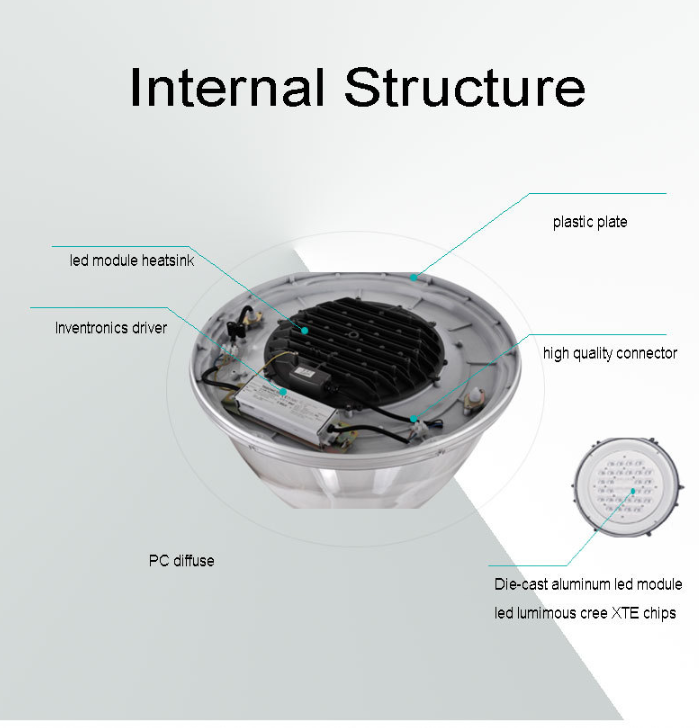

MaterialAluminum, LED Chip, Lens, PC Cover, Screw
Kelvin3000K, 4000K, 5000K, 6000K or Specified Color
LED optionCREE
CRI90Ra, 80Ra, 70Ra (Note: normal are 70Ra)
Lens AngleTI,TI,TIII degree

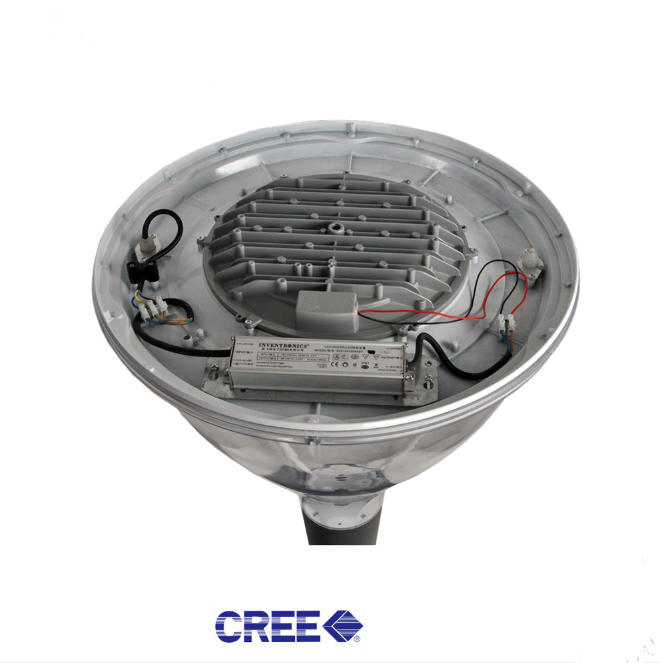

Driver optionInventronics, Meanwell or Specified brand (Note: normal are  Meanwell driver)
Input Voltage 200-240Vac (Meanwell ELG), 90-305Vac (Inventronics); 50/60Hz; PF>0.95
Lifetime>50, 000 hours
IP LevelIP66
Lighting WayAC Normal Lighting, AC Dimming Lighting
CertificateENEC, CB, SAA, CE, RoHS, IP66, IK09 etc.
Package  35W 45W 55W 60W

605*605*750mm/1PC
N.W9.2KG
G.W11.5KG



FAQ




Q: Whether the  LED lights really have 50,000 hours lifespan?

A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from

in lab,actual lifespan is only  <=50,000hours. Meanwhile it can also be 80,000 hours lifespan if it adopt very good material.



Q: For same power,why different suppliers with different brightness?

A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip

and same brightness version,the brightness will be slight difference.But please make clear the brightness difference

between LEDs and lamp fixture.



Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized

in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,

while a cooler (higher color temperature) light is used to enhance concentration in offices.



Q: What is CRI?

A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.



Q: What is PF and efficiency?

A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time
