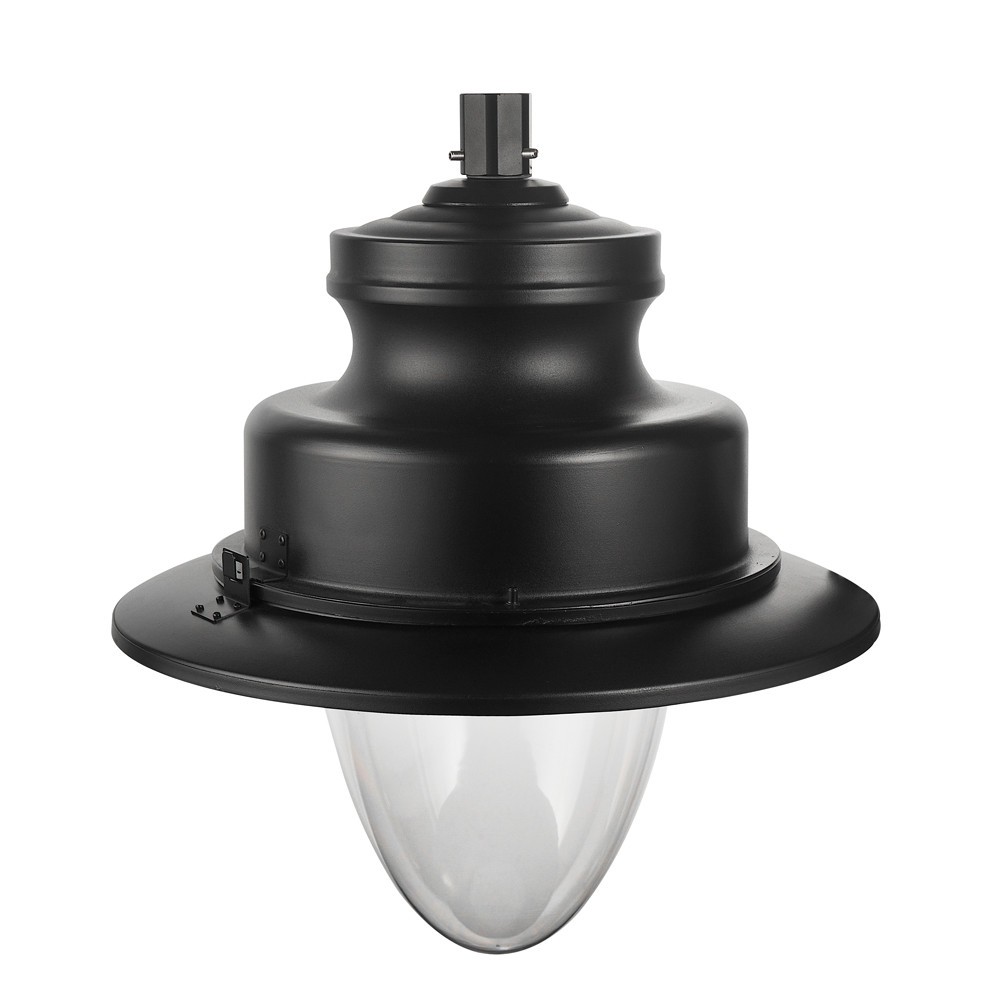

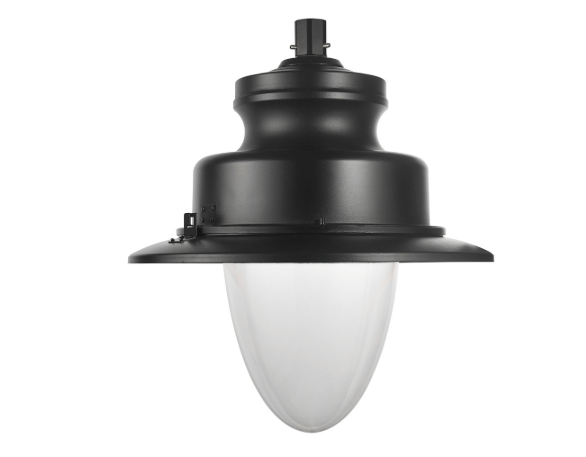

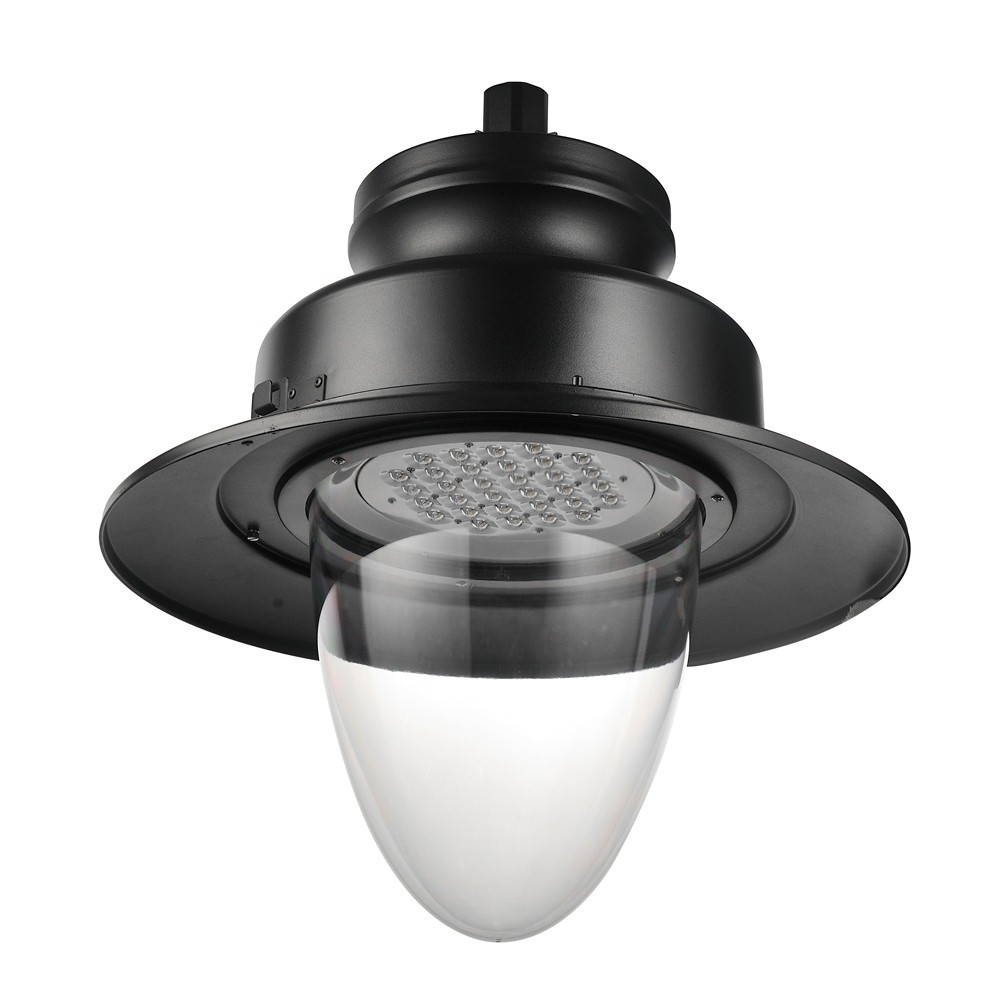

Led garden light (PL-GL-012)

Input Votage:AC90V-305V
Material: die-cast aluminium + lens IP grade：IP66 CREE-XTE:12PCS
Working temperature:-40-50°C
Beam angle: T1 T2 T3
luminous efficiency：110LM/W±5% PF：> 0.95
CRI: Ra>70/80
CCT：2700-6500K
Life：50000H

LED Garden Light High Efficiency Yard Lamp LED Yard Light Garden Light

Light Data-Sheet
Model No	PL-GL-012

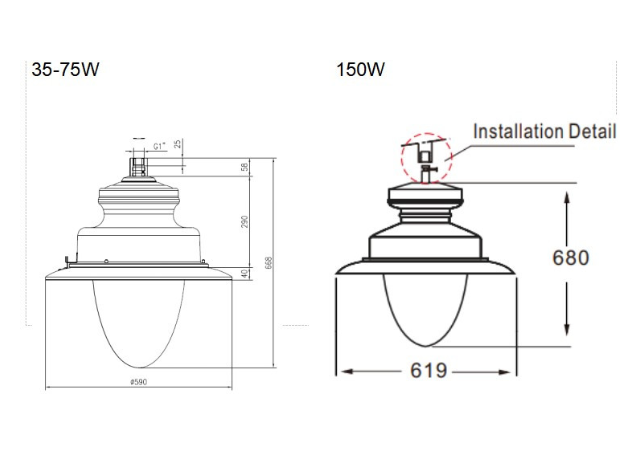

Size	D590*688mm			D619*680mm
Holder	1 inch
Watts	35W	55W	60W		75W	150W
Luminous	130lm/W±5%
LED Qty	16pcs CREE XTE	24pcs CREE XTE	28pcs CREE XTE		32pcs CREE XTE	189pcs LUMILEDS 3030/54pcs LUMILEDS 5050
Material	Aluminum, PC Cover
Kelvin	3000K, 4000K, 5000K, 6000K or Specified Color
CRI	90Ra, 80Ra, 70Ra (Note: normal are 70Ra)
Lens Angle	70*150°			150150°/60160°
Driver option	Inventronics, Meanwell or Specified brand (Note: normal are Inventronics driver)
Input Voltage	90-305Vac; 50/60Hz; PF>0.95
Lifetime	>50, 000hours
IP Level	IP65
Certificate	ENEC, CB, SAA, CE, RoHS, IP65, IK09 etc.
Package	600600540mm			570570570mm
N.W	6.50KG			7.60KG
G.W	7.40KG			8.60KG

FAQ

Q: Whether the LED lights really have 50,000 hours lifespan?

A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from

in lab,actual lifespan is only <=50,000hours. Meanwhile it can also be 80,000 hours lifespan if it adopt very good material.

Q: For same power,why different suppliers with different brightness?

A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip

and same brightness version,the brightness will be slight difference.But please make clear the brightness difference

between LEDs and lamp fixture.

Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized

in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,

while a cooler (higher color temperature) light is used to enhance concentration in offices.

Q: What is CRI?

A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.

Q: What is PF and efficiency?

A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time
